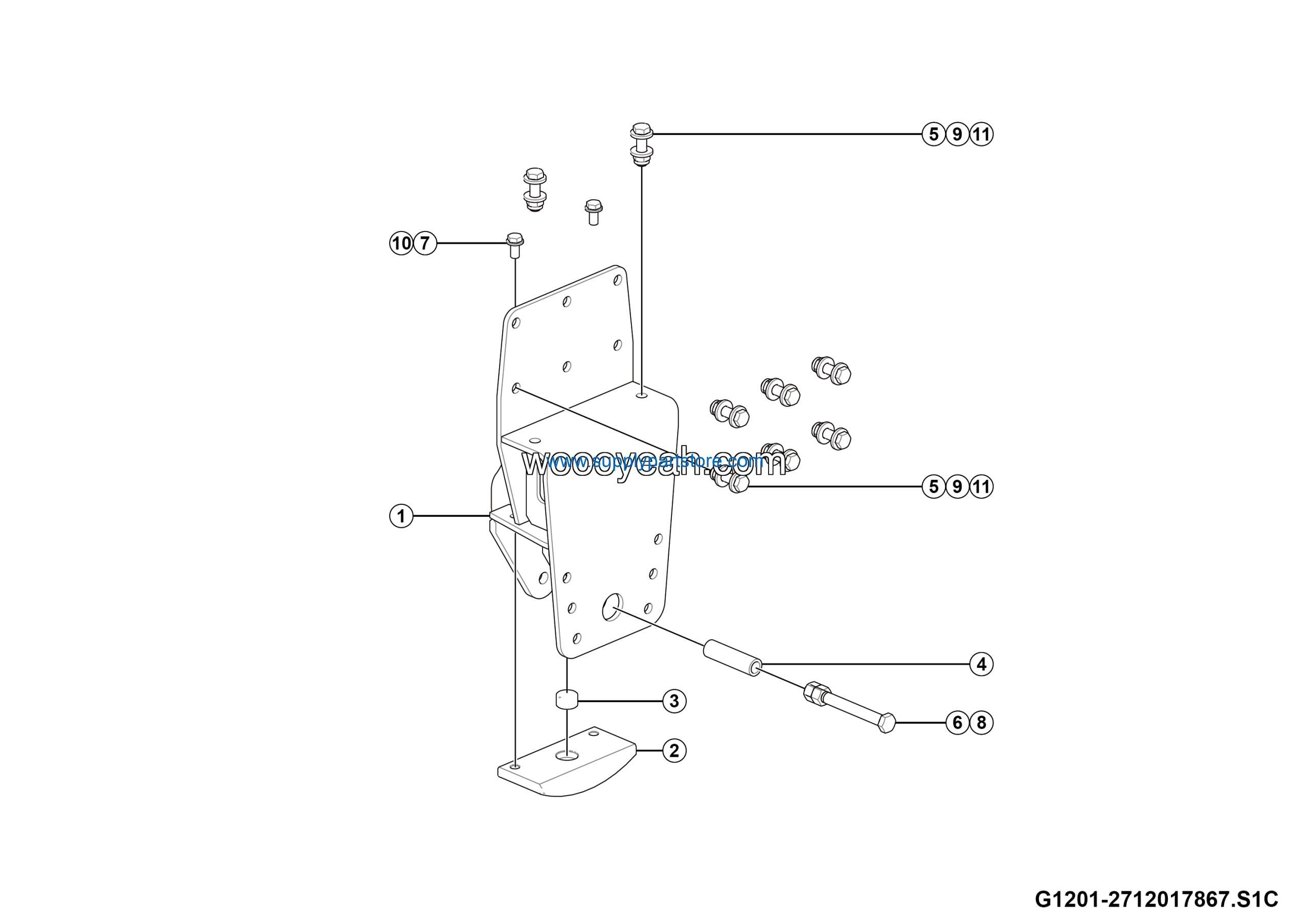

LGMG ？？？a？2？？？？？？？°a？2？¨？？？| 2025 – Front suspension rear mount assy – G1201-2712017867.S1C
Category: 2025 > ？？？a？2？？？？？？？°a？2？¨？？？| > MS25 > MS250Y3E0M002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 2 |
| 2 | Washer gb1230-14flznyc-45-480 | 4015010627 | 16 |
| 3 | Rear leaf spring mount wldmt | 27120178512 | 1 |
| 4 | Wear pad | 27120179382 | 1 |
| 5 | Cushion block | 27120113681 | 1 |
| 6 | Bolt sheath 25*17*90 | 27120179411 | 1 |
| 7 | Bolt GB5786-M14*1.5*50flZnyc-12.9-480 | 4011010642 | 8 |
| 8 | Bolt GB5782-M16*150flZnyc-12.9-480 | 4011010668 | 1 |
| 9 | Bolt GB5786-M12*1.25*25flZnyc-8.8-480 | 4011011114 | 2 |
| 10 | Nut GB6170-M16flZnyc-12-480 | 4013010254 | 2 |
| 11 | Nut GB6185.2-M14*1.5flZnyc-12-480 | 4013010568 | 8 |
