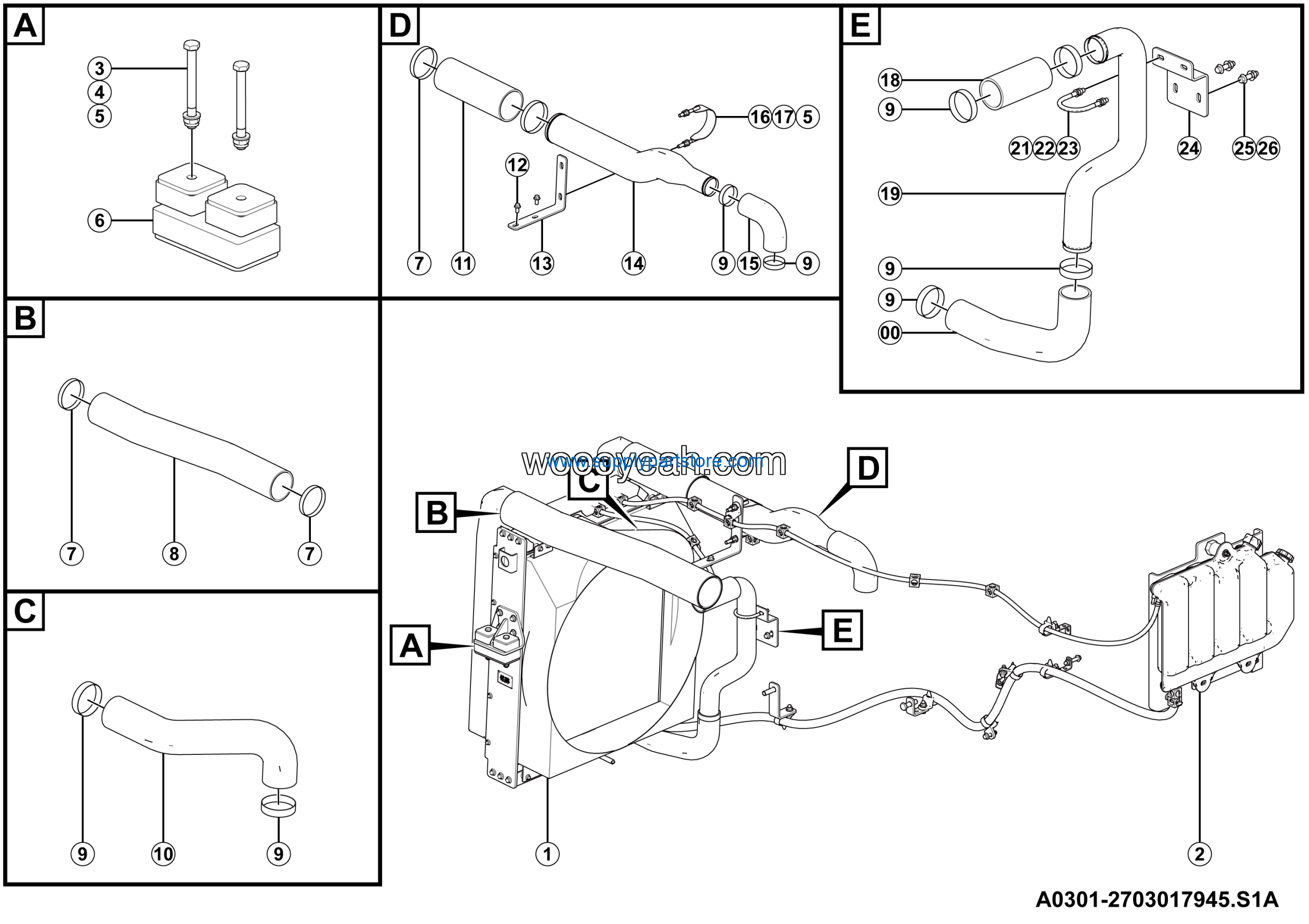

LGMG ？？？a？2？？？？？？？°a？2？¨？？？| 2025 – Radiator assy – A0301-2703017945.S1A
Category: 2025 > ？？？a？2？？？？？？？°a？2？¨？？？| > MS25 > M0250Y3E0M201
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Engine water outlet hose 70*5 | 27030179371 | 1 |
| 2 | Hose 112*6*300 | 27030179411 | 1 |
| 3 | Bolt GB16674.1-M10*20flZnyc-8.8-480 | 4011010993 | 2 |
| 4 | Bracket 230*190*40 | 27030179441 | 1 |
| 5 | Pipe 100*64*1.5 | 27030179431 | 1 |
| 6 | Hose 74*5 | 27030179421 | 1 |
| 7 | Exhaust pipe strap | 27240102332 | 1 |
| 8 | Nut GB6170-M10flZnyc-8-480 | 4013010289 | 4 |
| 9 | Connecting pipe 72*6*150 | 27030155311 | 1 |
| 10 | Pipe 60*1.5 | 27030179391 | 1 |
| 11 | Radiator lg03-srq-027 | 4190717257 | 1 |
| 12 | Engine water inlet hose 70*5 | 27030179381 | 1 |
| 13 | Ubolt | 27030120641 | 1 |
| 14 | Nut GB6170-M8flznyc-8-480 | 4013010291 | 4 |
| 15 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 2 |
| 16 | Bracket 145*120*50 | 27030179461 | 1 |
| 17 | Bolt GB16674.1-M10*40flZnyc-8.8-480 | 4011011086 | 2 |
| 18 | Nut gb6187.1-m10flznyc-8-480 | 4013010628 | 2 |
| 19 | Expansion tank assy | 27030179321 | 1 |
| 20 | Bolt GB5782-M10*100flZnyc-12.9-480 | 4011011722 | 4 |
| 21 | Nut GB6185.1-M10flZnyc-12-480 | 4013010566 | 4 |
| 22 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 6 |
| 23 | Shock absorber assy | 27030163511 | 2 |
| 24 | Butterfly spring clamp φ93-φ118 | 4190708166 | 4 |
| 25 | Charge air cooler air outlet hose 112*6 | 27030179361 | 1 |
| 26 | Butterfly spring clamp φ57-φ79 | 4190708163 | 8 |
