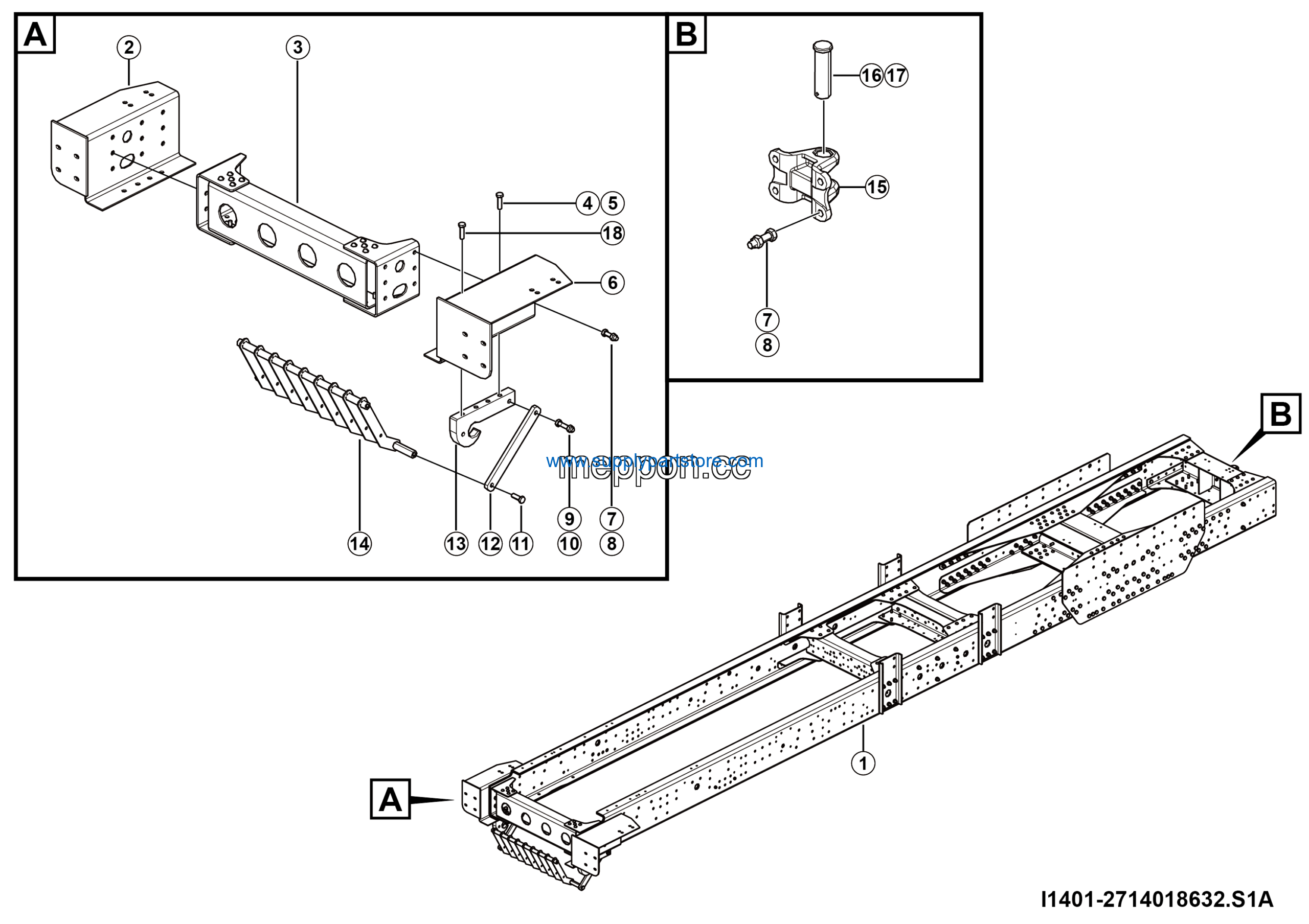

LGMG – 2025 – Frame Assembly – I1401-2714018632.S1A
Category: 2025 > – > M060DW3E0M013
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.2-M16*1.5EpZn-8 | 4013010168 | 2 |
| 2 | Bolt GB5786-M16*1.5*45EpZn-8.8 | 4011000494 | 2 |
| 3 | Connecting rod | 27140119971 | 2 |
| 4 | Front pull hook | 27140119692 | 2 |
| 5 | Front guard | 27140113244 | 1 |
| 6 | Rear traction seat | 27140104822 | 1 |
| 7 | Pin | 27140105842 | 1 |
| 8 | Pin GB91-6.3*71EpZn-Q235A | 4016010125 | 1 |
| 9 | Bolt GB5786-M16*1.5*55flZnyc-12.9-480 | 4011010640 | 6 |
| 10 | Frame | 27140186334 | 1 |
| 11 | CARGO TANK ASSEMBLY | 27140126901 | 1 |
| 12 | First beam assembly | 27140125521 | 1 |
| 13 | Bolt GB5786-M16*1.5*50flZnyc-12.9-480 | 4011010555 | 2 |
| 14 | Washer GB97.1-16EpZn-300HV | 4015000181 | 10 |
| 15 | Hinges and sorghum assembly | 27140126871 | 1 |
| 16 | Bolt GB5786-M16*1.5*60flZnyc-12.9-480 | 4011010585 | 16 |
| 17 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 16 |
| 18 | BOLT GB5785-M16*1.5*75EpZn-8.8 | 4011010461 | 2 |
