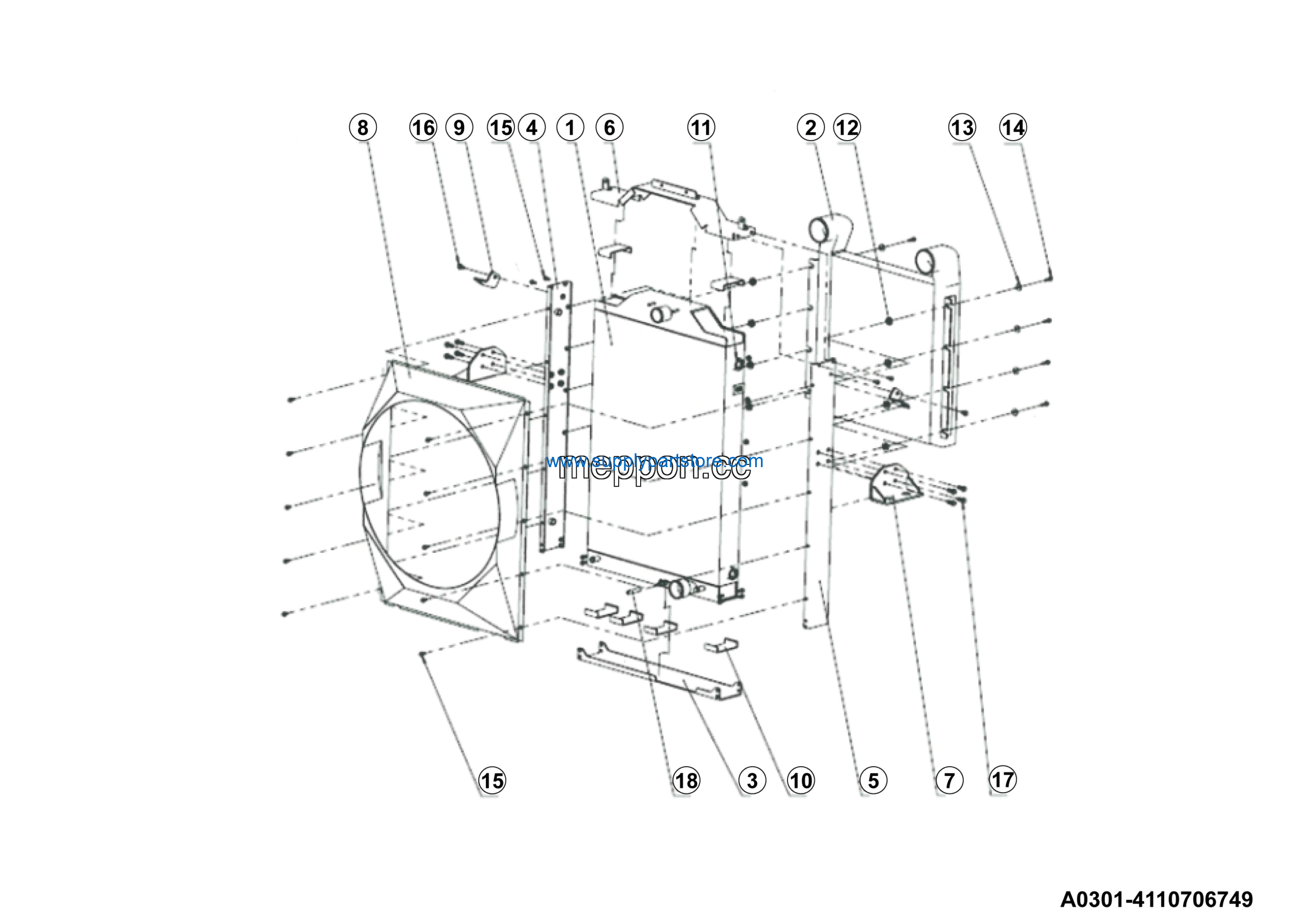

LGMG – 2025 – Radiator assy m9116939 – A0301-4110706749
Category: 2025 > – > M060DW3E0M105
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Rubber pad | 4110706749110 | 6 |
| 2 | Shock pad | 4110706749111 | 4 |
| 3 | Shock pad | 4110706749112 | 8 |
| 4 | Washer GB96.1-10flZnyc-300HV-480 | 4015010278 | 8 |
| 5 | Bolt gb5789 | 4110706749113 | 8 |
| 6 | Bolt gb5789-m8*20-10.9 | 4110703141019 | 22 |
| 7 | Hexagonal flange face bolt gb5789-m10 * 20 | 4110708201010 | 2 |
| 8 | Bolt gb5789 | 4110708353003 | 8 |
| 9 | Hose 8*2200 | 4110708405016 | 1 |
| 10 | Water radiator | 4110706749101 | 1 |
| 11 | Intercooler | 4110706749102 | 1 |
| 12 | Lwr plate | 4110706749103 | 1 |
| 13 | Lh frame assy | 4110706749104 | 1 |
| 14 | Rh frame assy | 4110706749105 | 1 |
| 15 | Upr cover plate assy | 4110706749106 | 1 |
| 16 | Bracket assy | 4110706749107 | 2 |
| 17 | Fan shroud | 4110706749108 | 1 |
| 18 | Linkage mounting plate | 4110706749109 | 2 |
