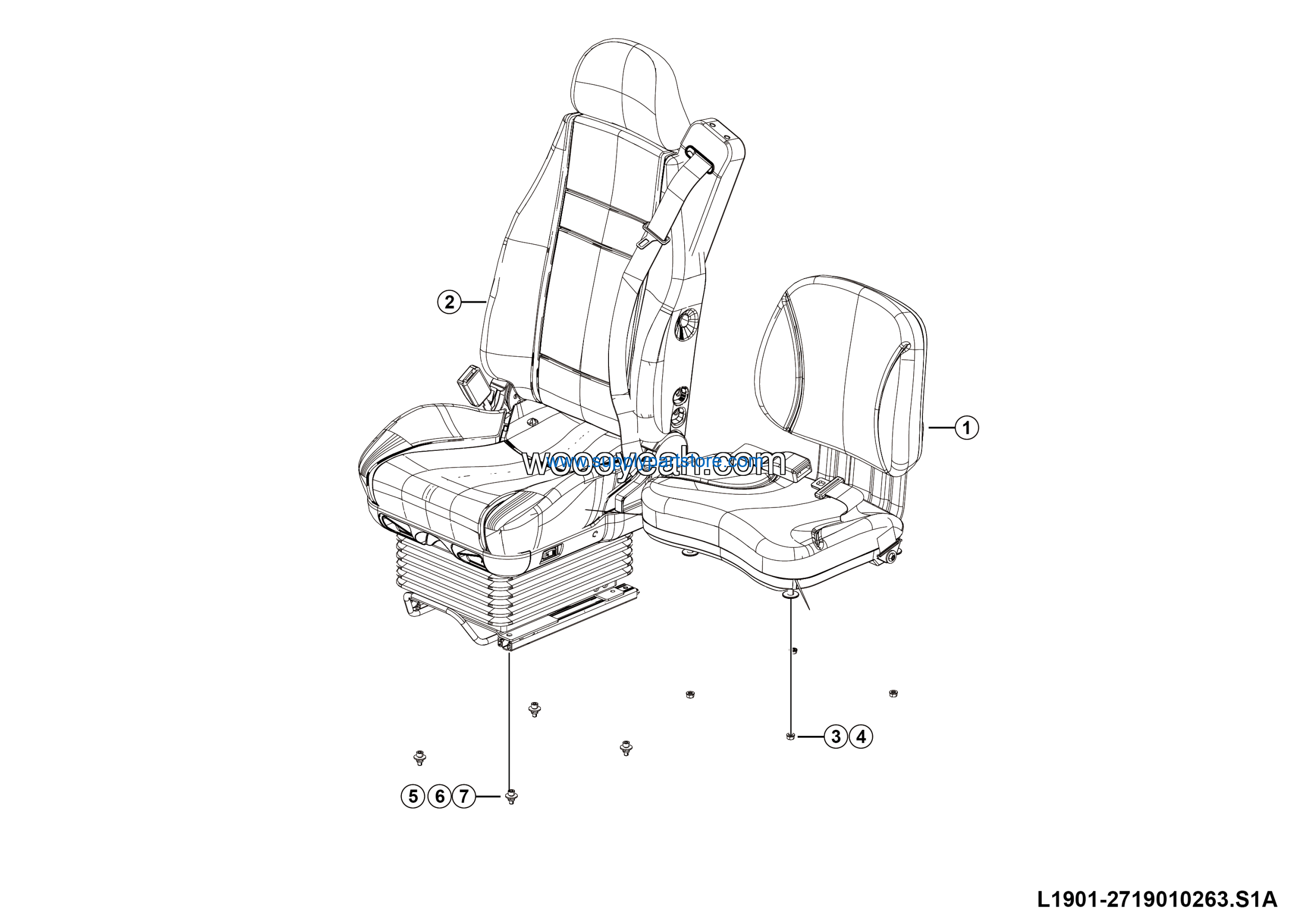

LGMG AT40 2025 – Seats installation – L1901-2719010263.S1A
Category: 2025 > AT40 > A0400W3M0A111
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Seat assembly | 27190101271 | 1 |
| 2 | Seat assy SGA22305 | 4190708195 | 1 |
| 3 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 4 | Nut GB6170-M8EpZn-8 | 4013000033 | 4 |
| 5 | Screw GB70.1-M8*20EpZn-8.8 | 4014000211 | 4 |
| 6 | Washer GB96.1-8flZnyc-300HV-480 | 4015010289 | 4 |
| 7 | Nut GB6185.1-M8flZnyc-8-480 | 4013010314 | 4 |
