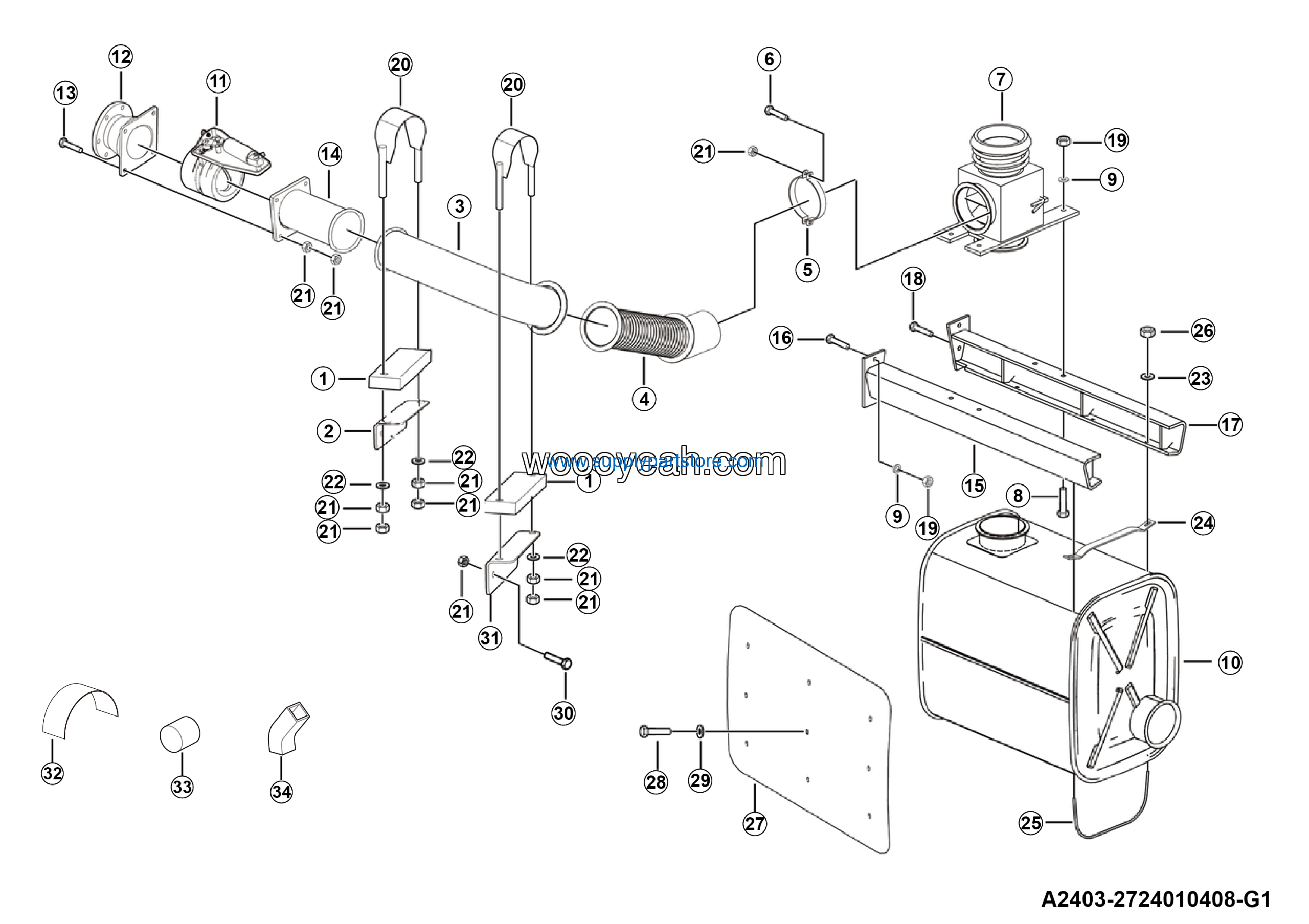

LGMG CMT106 2025 – Exhaust and heating system – A2403-2724010408-G1
Category: 2025 > CMT106 > C1060W3E0A034
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Muffler assy | 4110703638 | 1 |
| 2 | Exhaust brake butterfly valve | 4110000157 | 1 |
| 3 | JOINT NIPPLE | 27240101121 | 1 |
| 4 | Bolt GB16674.1-M10*120EpZn-8.8 | 4011000601 | 4 |
| 5 | Pipe | 27240105521 | 1 |
| 6 | Plate | 27010113411 | 1 |
| 7 | Bolt GB5782-M12*60EpZn-8.8 | 4011000260 | 3 |
| 8 | Plate | 27010110671 | 1 |
| 9 | Bolt GB5783-M12*45EpZn-8.8 | 4011000207 | 2 |
| 10 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 9 |
| 11 | FRONT PLATE ASSEMBLY | 27240103721 | 2 |
| 12 | Plate | 27240103051 | 2 |
| 13 | Nut GB6170-M10EpZn-8 | 4013000007 | 20 |
| 14 | Washer GB97.1-10EpZn-300HV | 4015000162 | 14 |
| 15 | Washer GB96.1-8EpZn-300HV | 4015000256 | 6 |
| 16 | Plate | 27010110711 | 3 |
| 17 | TENSIONING LEVER | 27010101611 | 3 |
| 18 | Nut GB6170-M8EpZn-8 | 4013000033 | 12 |
| 19 | Protecting cover | 27240103101 | 1 |
| 20 | Bolt GB5783-M6*25EpZn-8.8 | 4011000276 | 9 |
| 21 | Washer GB96.1-6EpZn-300HV | 4015000198 | 9 |
| 22 | Supportⅰ | 27240104681 | 1 |
| 23 | Bolt GB5782-M10*35EpZn-8.8 | 4011010164 | 4 |
| 24 | Support | 27240104671 | 1 |
| 25 | Turbocharger insulation cotton LG24-GR-002 | 4110705911 | 1 |
| 26 | Exhaust pipe insulation cotton LG24-GR-003 | 4110705912 | 1 |
| 27 | Upr exhaust pipe insulation cotton FDHT-D185XA11-1 | 4110706347 | 1 |
| 28 | Exhaust pipe Ⅱ | 4110001953 | 1 |
| 29 | Exhaust pipe Ⅲ | 4110703098 | 1 |
| 30 | Clamp | 4110000768 | 4 |
| 31 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 4 |
| 32 | Exhaust conversion box assy | 4110001279 | 1 |
| 33 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 4 |
| 34 | Washer GB96.1-12EpZn-300HV | 4015000186 | 10 |
