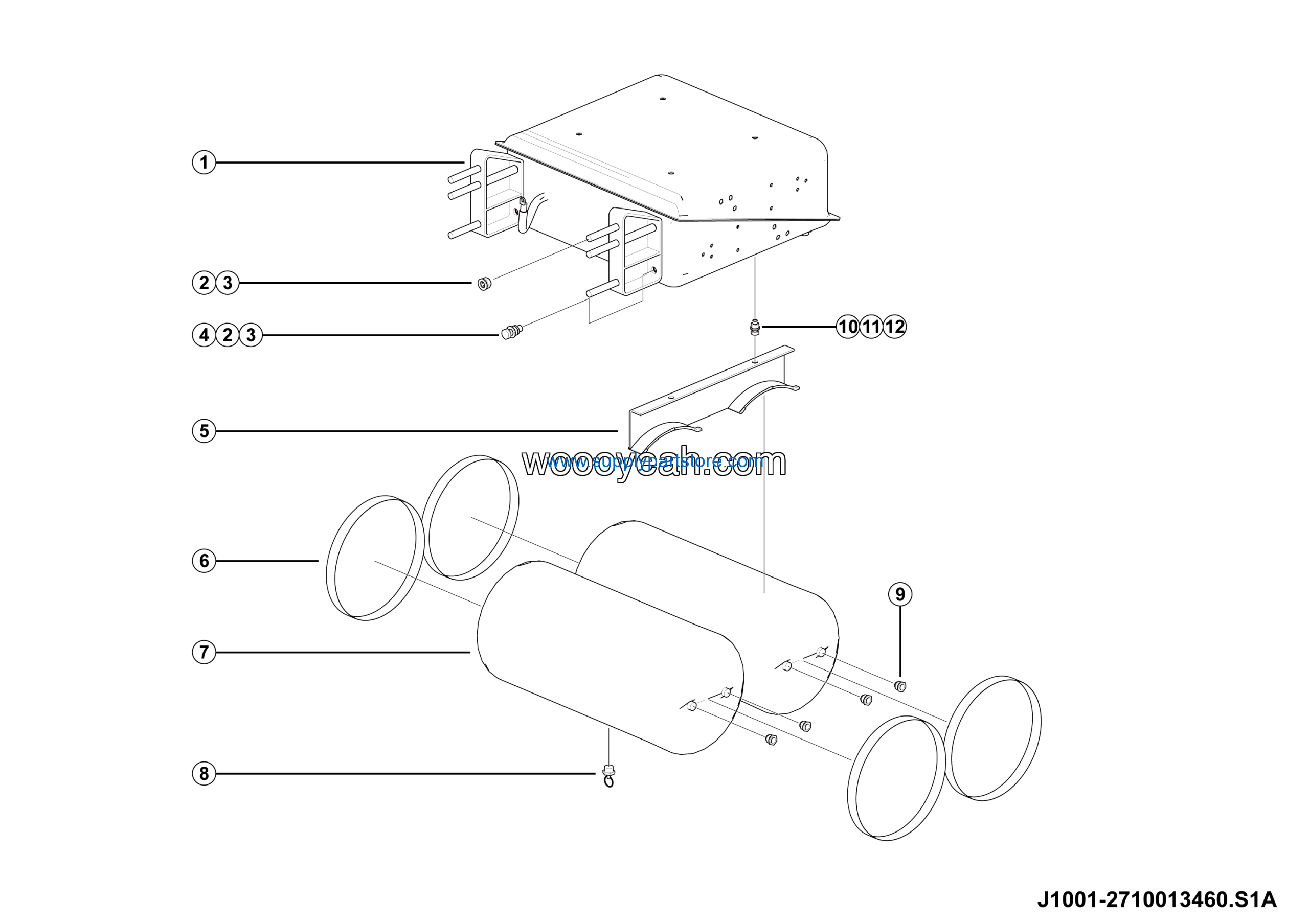

LGMG Off-Highway Dump Truck 2024 – Battery box installation – J1001-2710013460.S1A
Category: 2024 > Off-Highway Dump Truck > CMT96 > C0960WG19
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 4 |
| 2 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 3 | Nut GB6170-M12EpZn-8 | 4013000011 | 4 |
| 4 | Battery box assy 49-DPX-02 | 4190706949 | 1 |
| 5 | Washer GB97.1-16EpZn-300HV | 4015000181 | 8 |
| 6 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 8 |
| 7 | Bolt GB5783-M16*45EpZn-10.9 | 4011000564 | 2 |
| 8 | 50l air reservoir bracket | 27100107922 | 2 |
| 9 | Hose clamp φ315-φ320 | 4120001542 | 4 |
| 10 | Air reservoir 50L | 4120001543 | 2 |
| 11 | Drain valve | 4120000200 | 2 |
| 12 | Nut seat | 27110107601 | 4 |
