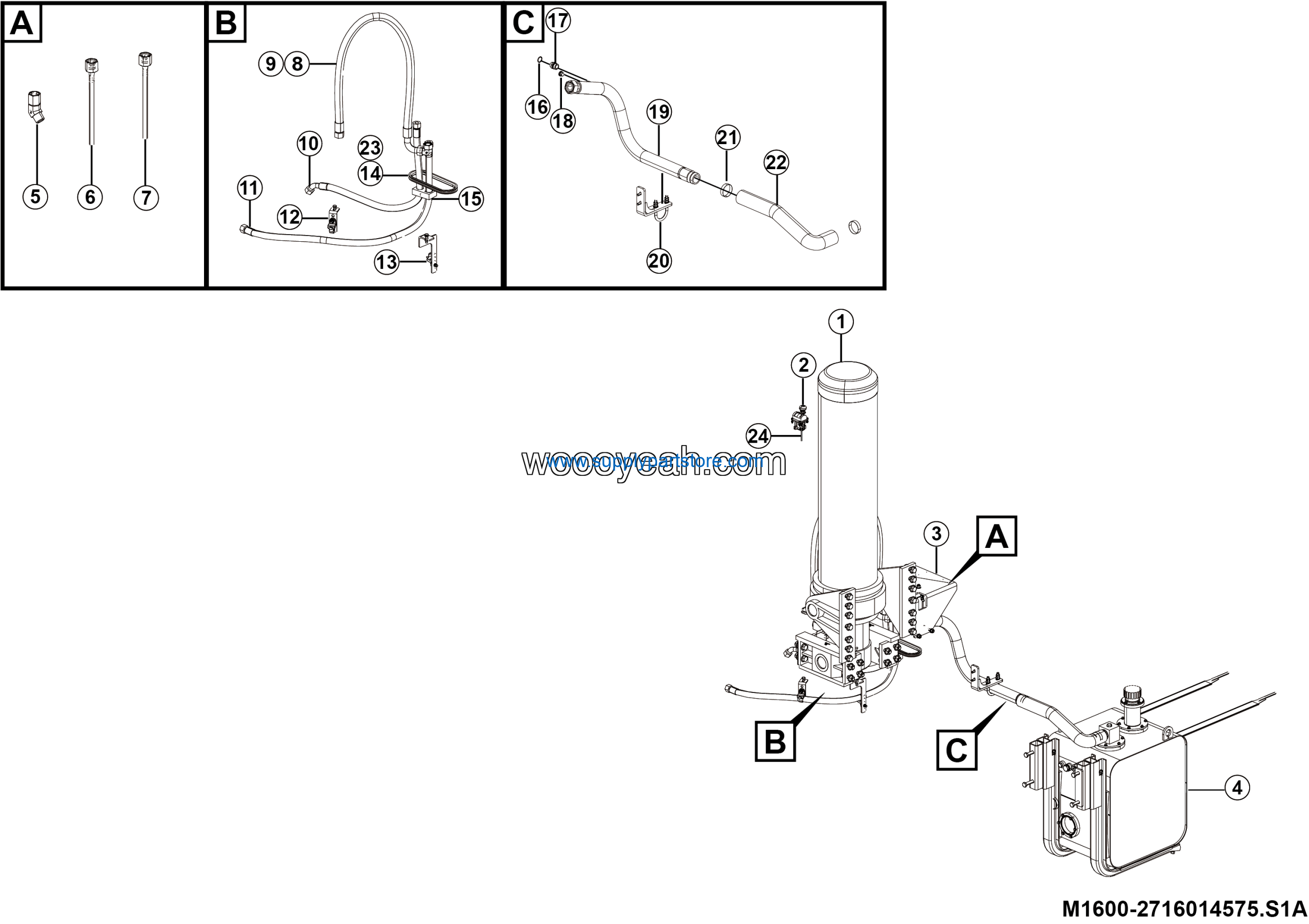

LGMG CMT96A 2025 – Hyd hoist assy – M1600-2716014575.S1A
Category: 2025 > CMT96A > C096AY3E0A001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | PLATE | 27160114901 | 1 |
| 2 | Hose F351TCCACA222212-1600 | 4120712081 | 1 |
| 3 | Bracket assy 01 | 27160142261 | 1 |
| 4 | Bracket assy 002 | 27160145291 | 1 |
| 5 | PIPE | 27400104391 | 1 |
| 6 | Pipe clamp TTPG3-535 | 4120712631 | 1 |
| 7 | O-ring LGB168-12331 | 4041000779 | 1 |
| 8 | Straight joint LGB120-02628 | 4041000796 | 1 |
| 9 | Plug 4MN-18WD | 4120703163 | 1 |
| 10 | Pipe wldmt 01 | 27160145781 | 1 |
| 11 | Hoist cylinder assy | 27160145771 | 1 |
| 12 | Steel pipe support assembly | 27160133611 | 1 |
| 13 | Butterfly spring clamp φ51-φ73 | 4190708162 | 2 |
| 14 | Oil return hose 56*6 | 27160145801 | 1 |
| 15 | Guard | 27160106272 | 1 |
| 16 | Pipe | 27160115692 | 1 |
| 17 | Asm-control valve | 27160128721 | 1 |
| 18 | Hoist valve assy | 27160145381 | 1 |
| 19 | Hydraulic oil tank installation | 27160136371 | 1 |
| 20 | Joint EV06LOMDCF | 4120711199 | 1 |
| 21 | Pipe | 27160113252 | 1 |
| 22 | Air hose 2000 | 27160137791 | 1 |
| 23 | Hose | 27160112543 | 1 |
| 24 | JOINT LGB143-03625 | 4041001211 | 1 |
