LGMG Off-Highway Dump Truck 2024 – Steel pipe support assembly – M1601-2716013361.S1A
Category: 2024 > Off-Highway Dump Truck > MT106H > M106HW3A0M352

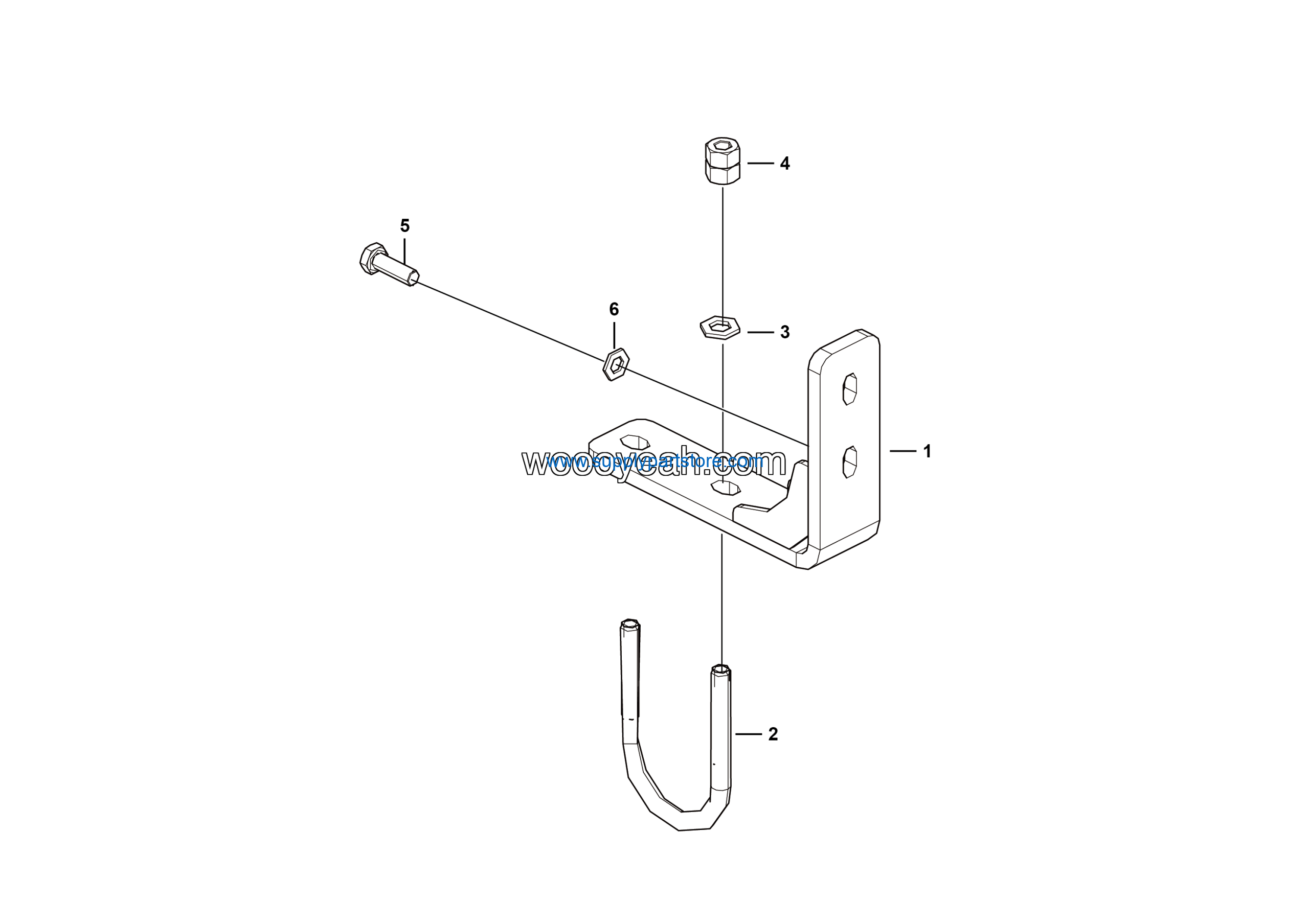

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bracket | 27160133631 | 1 |
| 2 | U bolt | 27160121841 | 1 |
| 3 | Washer GB97.1-12EpZn-300HV | 4015000168 | 2 |
| 4 | Nut GB6170-M12EpZn-8 | 4013000011 | 4 |
| 5 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 2 |
| 6 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
