Description

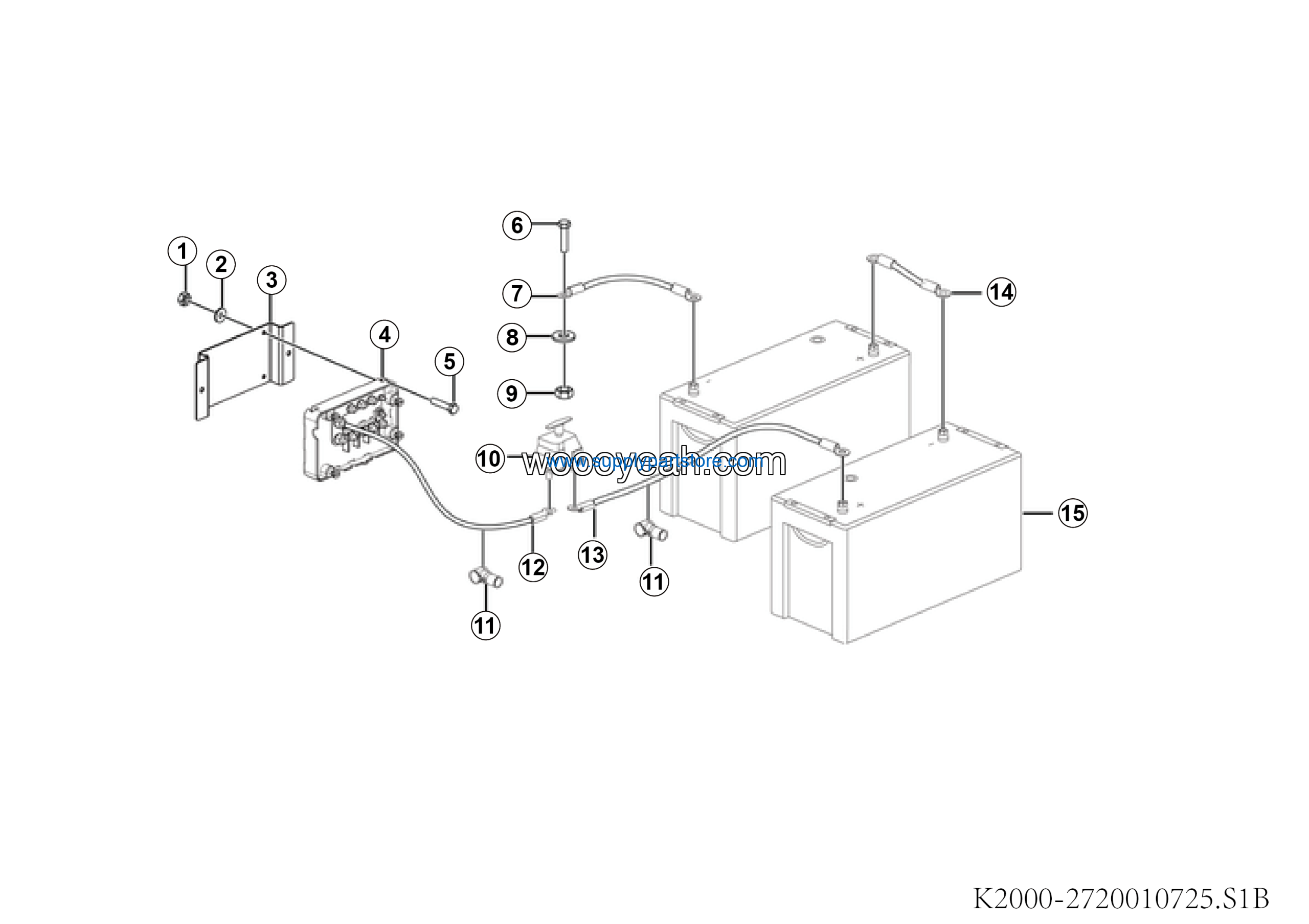

LGMG Mine Truck 2026 – Battery box electrical module assy – K2000-2720010725.S1B
Category: 2026 > Mine Truck > MT50 > M0500Y3E0M402
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Power switch JK862J | 4130000257 | 1 |
| 2 | Red battery cable sheath | 26370002451 | 3 |
| 3 | Wirep70*300 | 27200106752 | 1 |
| 4 | Wire | 27200105171 | 1 |
| 5 | Wire | 27200105191 | 1 |
| 6 | Battery 6-QW-120T | 4130000060 | 2 |
| 7 | Nut GB6170-M8EpZn-8 | 4013000033 | 6 |
| 8 | Washer GB97.1-8EpZn-300HV | 4015000072 | 6 |
| 9 | Large current deconcentrator bracket | 27200106531 | 1 |
| 10 | High current splitter60502 assy | 4130000929 | 1 |
| 11 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 2 |
| 12 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 2 |
| 13 | Wire | 27200105181 | 1 |
| 14 | Washer GB861.1-10EpZn-65Mn | 4015000195 | 1 |
| 15 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
