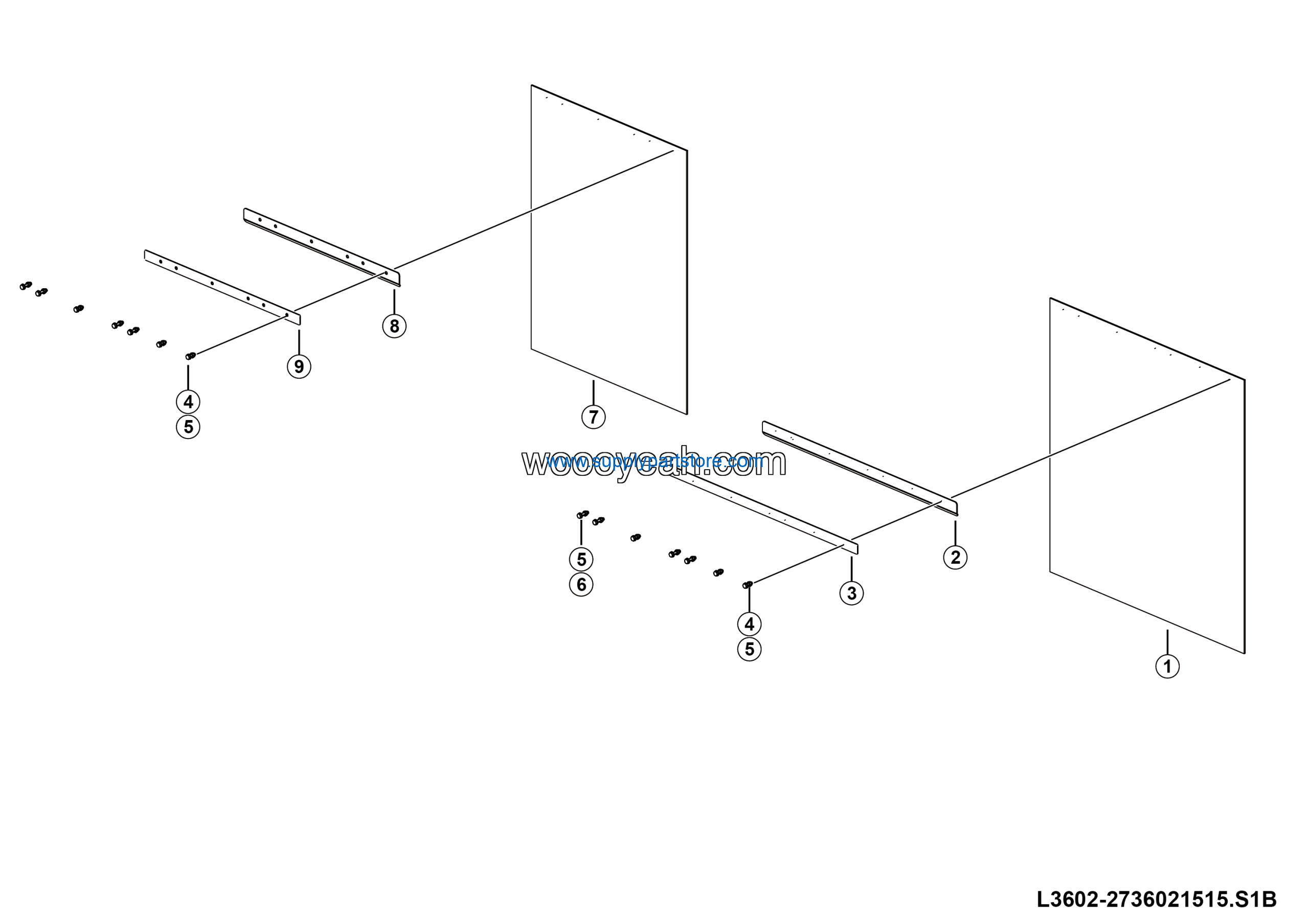

LGMG Mine Truck 2026 – Mudflap installation – L3602-2736021515.S1B
Category: 2026 > Mine Truck > MTH126M > C1260Y3A0A205
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Lh mudflap 1100*1000*5 | 27360216111 | 1 |
| 2 | Lh mudflap bracket 1000*58*3 | 27360216091 | 1 |
| 3 | Lh mudflap hold-down plate 1000*40*4 | 27360216131 | 1 |
| 4 | Bolt GB16674.1-M10*30flZnyc-8.8-480 | 4011010712 | 5 |
| 5 | Nut gb6187.1-m10flznyc-8-480 | 4013010628 | 13 |
| 6 | Bolt GB16674.1-M10*35flZnyc-8.8-480 | 4011011104 | 8 |
| 7 | Rh mudflap 1060*800*5 | 27360216101 | 1 |
| 8 | Rh mudflap bracket 800*58*3 | 27360216081 | 1 |
| 9 | Rh mudflap hold-down plate 800*40*4 | 27360216121 | 1 |
