Description

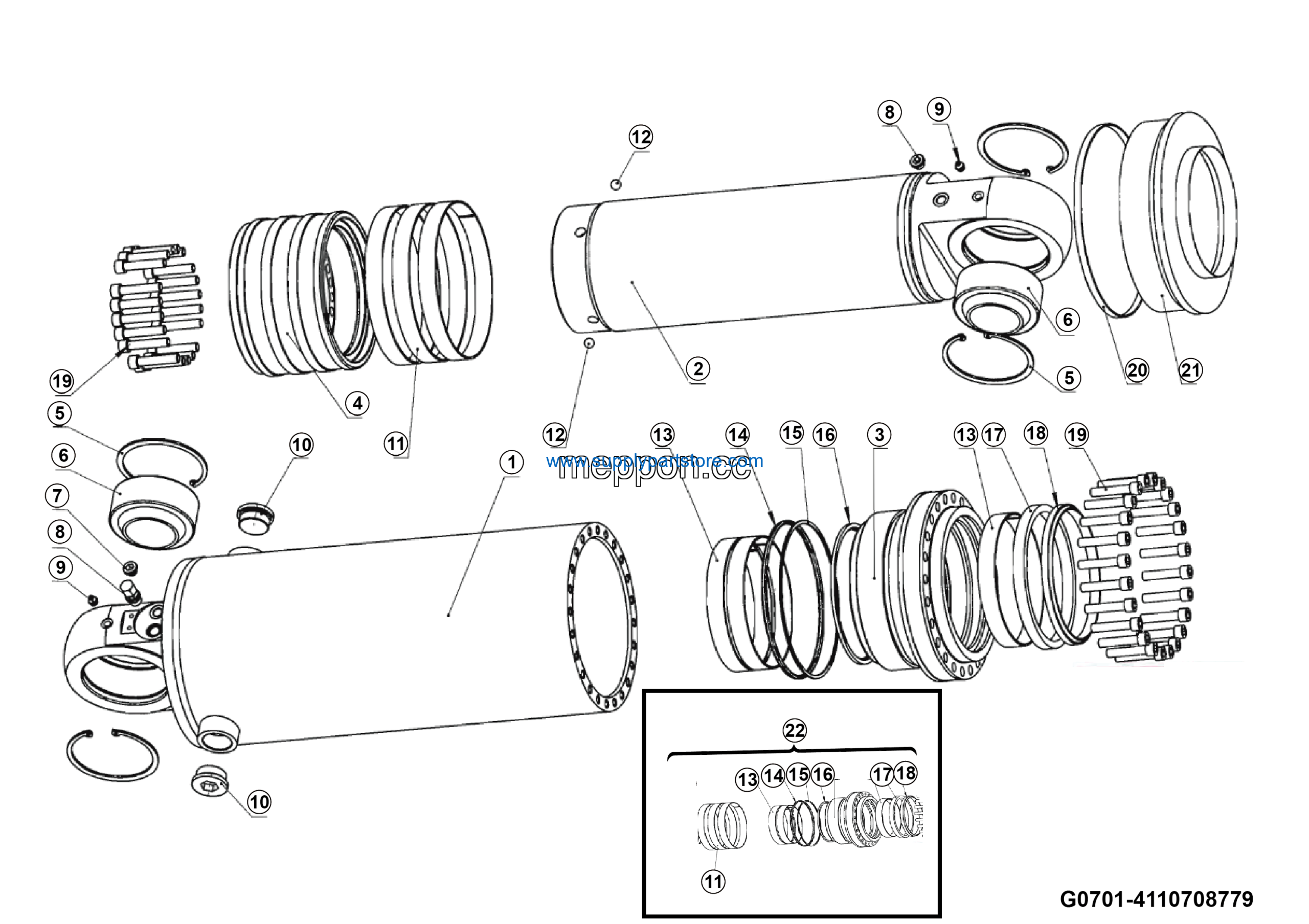

LGMG RTH100 2025 – Rear hydro-pneumatic suspension cylinder assy 180/220-350 – G0701-4110708779
Category: 2025 > RTH100 > R1000Y3A0A238
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Threaded plug 4mn-42wd | 4110707955106 | 2 |
| 2 | Guide ring 220*215*25 | 4110707955108 | 3 |
| 3 | Steel ball gb/t308-12.7-g3 | 4110707955107 | 2 |
| 4 | Guide ring 180*185*25 | 4110707955109 | 3 |
| 5 | O-ring gb/t3452.1-d210*5.3 | 4110707955110 | 1 |
| 6 | O-ring backup ring 220*211.5*2 | 4110707955111 | 1 |
| 7 | Buffer seal rbr-180*195.5*6.3 | 4110707955112 | 1 |
| 8 | Piston rod seal rsa-180*200*16 | 4110707955113 | 1 |
| 9 | Dust seal 038-180*195*190*9.5 | 4110707955114 | 1 |
| 10 | Screw gb/t70.1-m12*60 | 4110707955115 | 44 |
| 11 | Cylinder barrel 220/180*350 | 4110707955201 | 1 |
| 12 | Clamp d265 | 4110707955116 | 1 |
| 13 | Dust shield 220/180*350 | 4110707955117 | 1 |
| 14 | Seal kit 220/180*350 | 4110707955118 | 1 |
| 15 | Piston rod assy 220/180*350 | 4110707955102 | 1 |
| 16 | Guide sleeve 220/180*142 | 4110707955103 | 1 |
| 17 | Piston 220/180*350 | 4110707955104 | 1 |
| 18 | Snap ring cb/t893.1-86-120 | 4110707954105 | 4 |
| 19 | Bearing GB9163-GEG70ES-2RS | 4021010011 | 2 |
| 20 | Plug 4BN-04WD | 4190001419 | 2 |
| 21 | Charging valve qxf-5 | 4110707954115 | 1 |
| 22 | Grease nipple gb/t1152-m10*1 | 4110707954106 | 2 |
