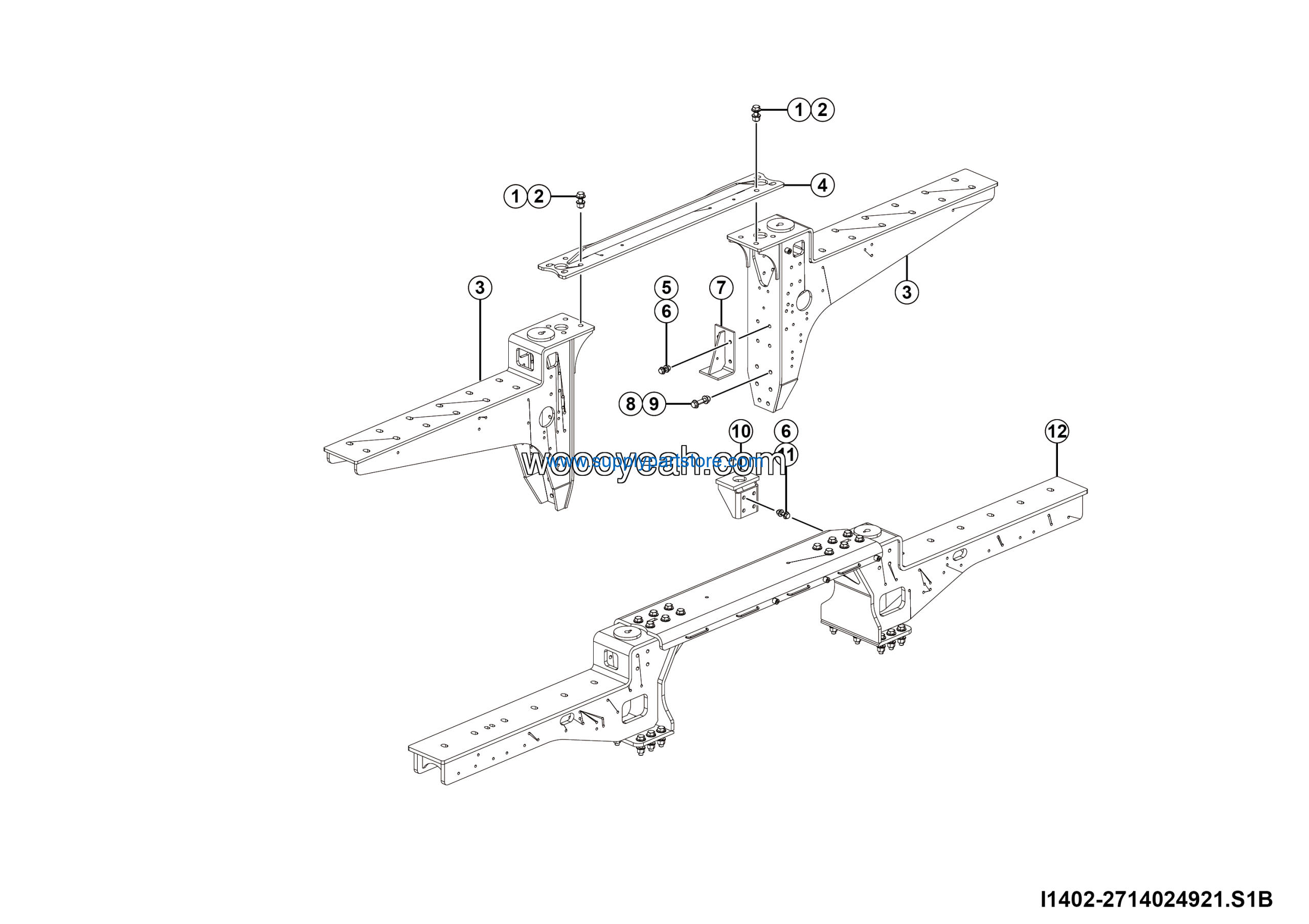

LGMG Mine Truck 2026 – Walkway brackets installation – I1402-2714024921.S1B
Category: 2026 > Mine Truck > MTH126M > C1260Y3A0A206
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Rear limit seat welding | 27140200072 | 1 |
| 2 | Bolt gb5789-m14*50flznyc-8.8-480 | 4011011924 | 4 |
| 3 | Hydro-pneumatic suspension cylinder mount & crossbeam installation | 27140249351 | 1 |
| 4 | Bolt gb5789-m18*1.5*50flznyc-12.9-480 | 4011011957 | 8 |
| 5 | Nut gb6187.2-m18*1.5flznyc-12-480 | 4013010636 | 8 |
| 6 | Walkway front bracket wldmt | 27140249334 | 2 |
| 7 | Crossbeam wldmt | 27140268331 | 1 |
| 8 | Bolt gb5789-m14*40flznyc-8.8-480 | 4011011923 | 8 |
| 9 | Nut gb6187.1-m14flznyc-8-480 | 4013010631 | 12 |
| 10 | Frame | 27140179072 | 2 |
| 11 | Bolt gb5789-m16*1.5*80flznyc-12.9-480 | 4011011948 | 12 |
| 12 | Nut gb6187.2-m16*1.5flznyc-12-480 | 4013010635 | 12 |
