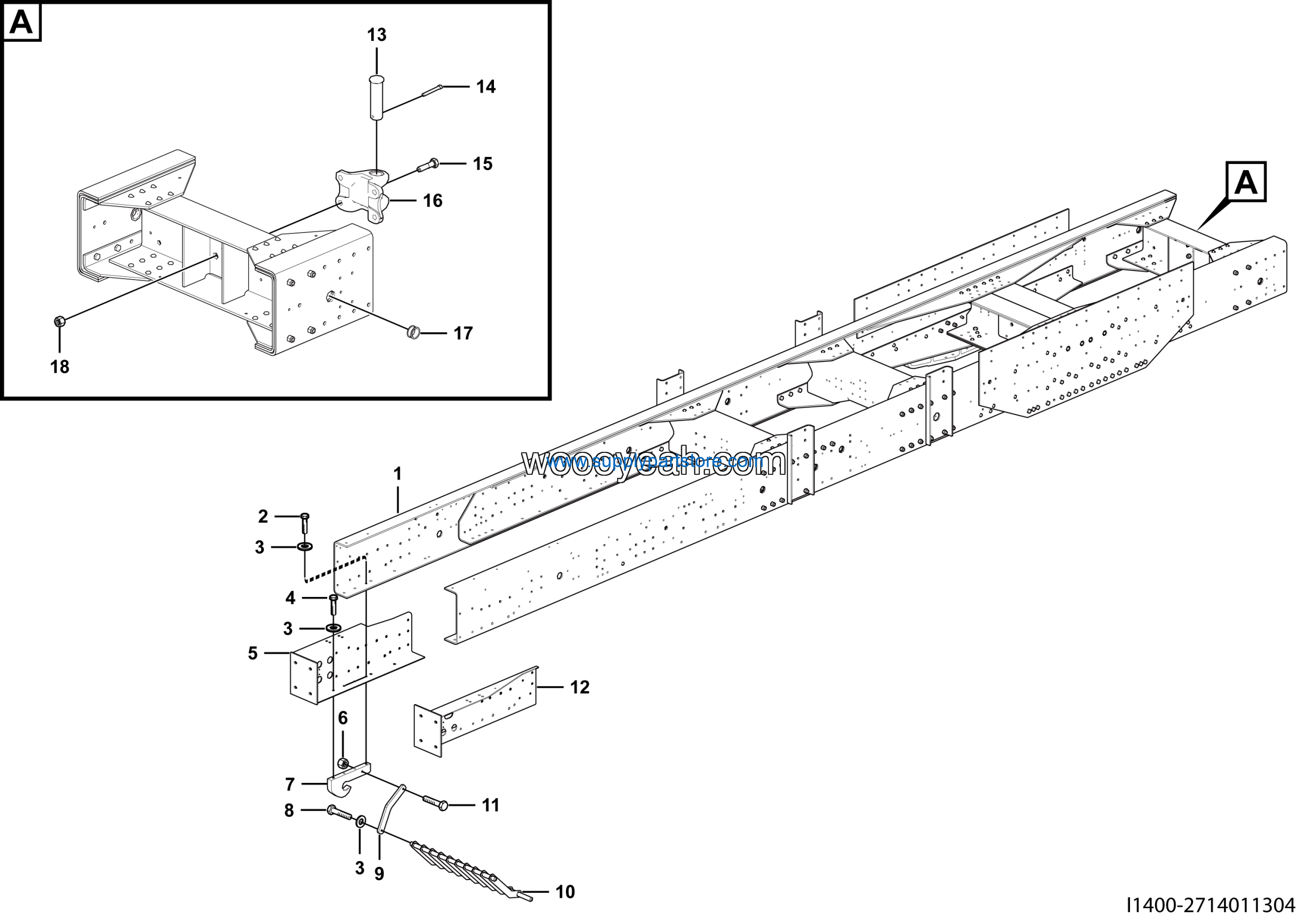

LGMG Mine Truck Mine Truck – Chasis – I1400-2714011304
Category: Mine Truck > Mine Truck > M0860WAL0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Front guard | 27140104952 | 1 |
| 2 | Bolt GB5785-M16*1.5*75EpZn-10.9 | 4011010151 | 2 |
| 3 | Left connect plate assembly | 27140115501 | 1 |
| 4 | Pin | 27140105842 | 1 |
| 5 | No longer used | 4016000106 | 1 |
| 6 | Bolt GB5782-M16*60EpZn-8.8 | 4011000068 | 4 |
| 7 | Rear traction seat | 27140104822 | 1 |
| 8 | String casing | 27140105021 | 5 |
| 9 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 4 |
| 10 | Frame | 27140113052 | 1 |
| 11 | Bolt GB5785-M16*1.5*55EpZn-10.9 | 4011010285 | 6 |
| 12 | Washer GB97.1-16EpZn-300HV | 4015000181 | 10 |
| 13 | Bolt GB5785-M16*1.5*35EpZn-10.9 | 4011010153 | 2 |
| 14 | Right connect plate assembly | 27140115481 | 1 |
| 15 | Nut GB6171-M16*1.5-10 | 4013000196 | 2 |
| 16 | Front pull hook | 27140108182 | 2 |
| 17 | Bolt GB5786-M16*1.5*45EpZn-10.9 | 4011000710 | 2 |
| 18 | Connecting rod | 27140104991 | 2 |
