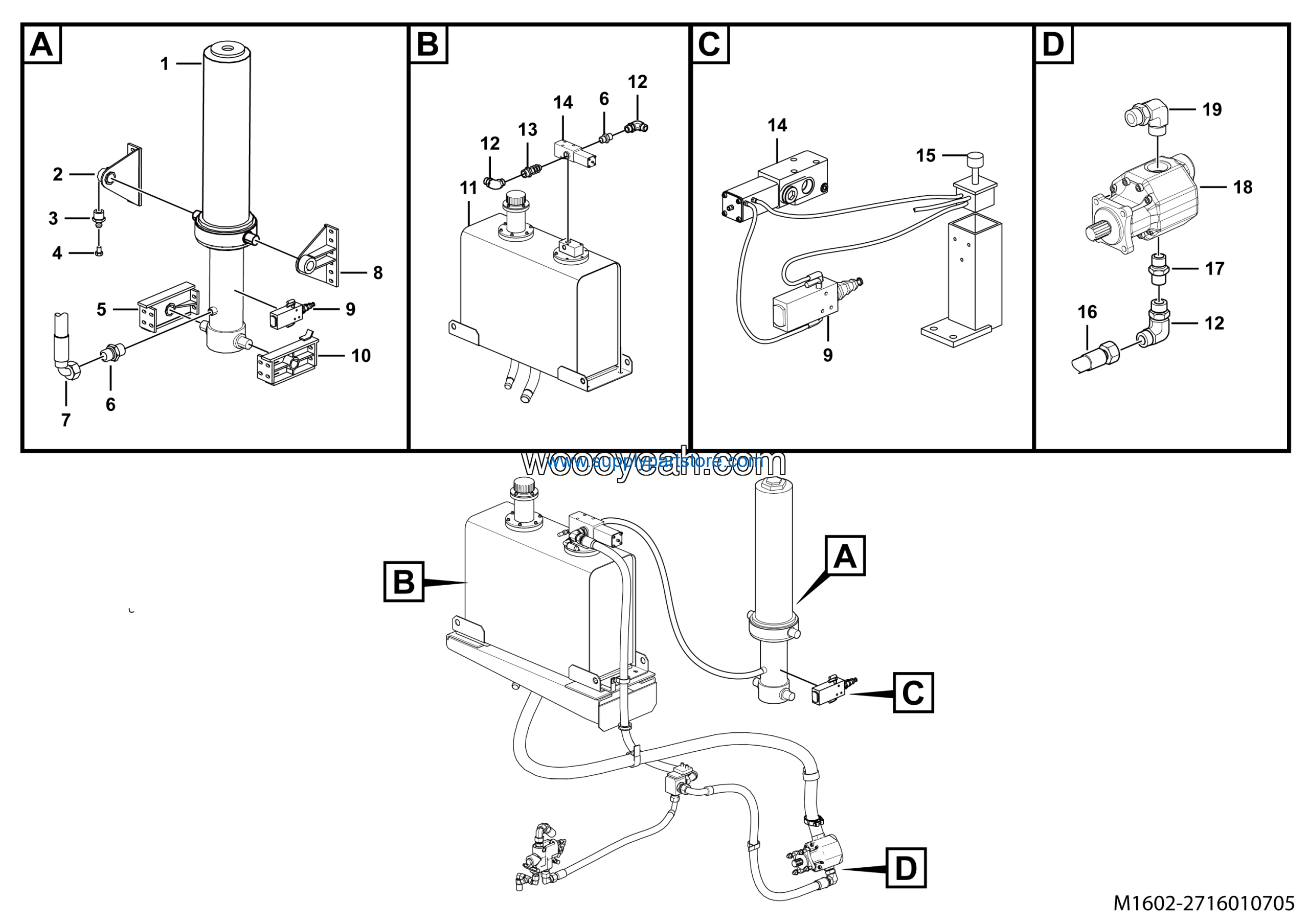

LGMG Mine Truck Mine Truck – Hydraulic lifting system – M1602-2716010705
Category: Mine Truck > Mine Truck > M0860WA30
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Frame bracket | 27160106881 | 1 |
| 2 | Hydraulic oil tank assembly | 27160106971 | 1 |
| 3 | JOINT LGB143-03625 | 4041001211 | 3 |
| 4 | Check valve | 4120000990 | 1 |
| 5 | Lifting valve | 4120001021 | 1 |
| 6 | Control air valve | 4120001017 | 1 |
| 7 | High pressure hose | 27160108281 | 1 |
| 8 | Joint GE28LR11/4EDOMD | 4190001242 | 1 |
| 9 | Gear pump CBW55G122R | 4120001061 | 1 |
| 10 | Low pressure joint G1 1/4-φ46 | 4120001011 | 1 |
| 11 | Lifting cylinder 4TG-FV180*4750ZZ-00 | 4120001530 | 1 |
| 12 | Hydro-cylinder bracket（LH） | 4120001006 | 1 |
| 13 | Butter nozzle | 4120001010 | 4 |
| 14 | No longer used | 4030000107 | 4 |
| 15 | Frame bracket | 4120001008 | 1 |
| 16 | Straight joint 1CB-36-16 | 4120000581 | 2 |
| 17 | HIGH PRESSURE HOSE -1650 | 27160105701 | 1 |
| 18 | Hydro-cylinder bracket（RH） | 4120001007 | 1 |
| 19 | Limit valve | 4120001018 | 1 |
