Description

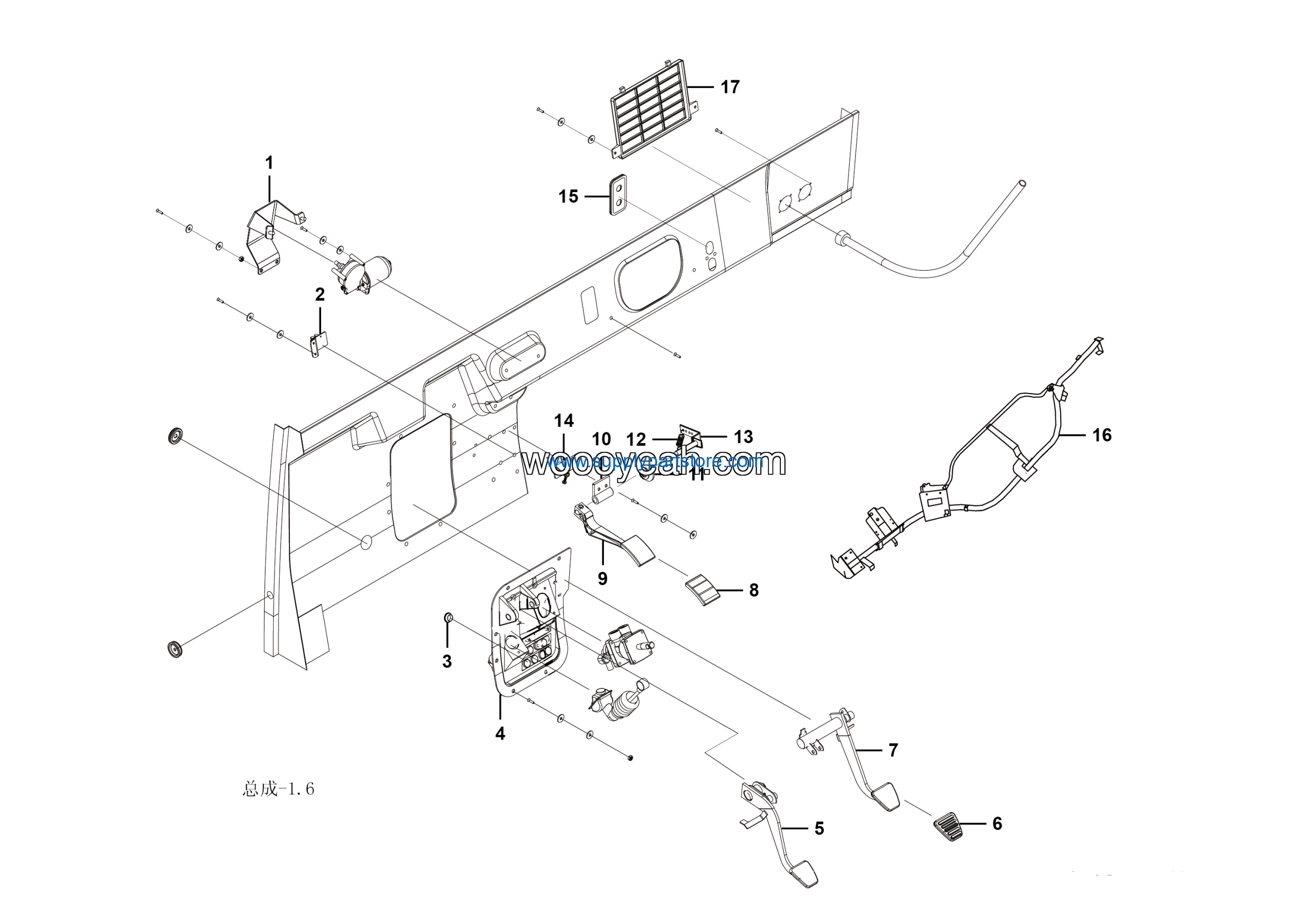

LGMG Mine Truck Mine Truck – Inner plate of front coaming ws33002550186 – L1300-4190001098556
Category: Mine Truck > Mine Truck > M0860WE40
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Accelerator pedal bushing assy WS33002550167 | 4190001098566 | 1 |
| 2 | Rubber gasket assy WS33002550165 | 4190001098567 | 1 |
| 3 | Throttle return spring assy WS33002550168 | 4190001098568 | 1 |
| 4 | Accelerator bracket shaft assy WS33002550163 | 4190001098569 | 1 |
| 5 | Accelerator pedal limit bracket assy WS33002550166 | 4190001098570 | 1 |
| 6 | Blanking cap assy of air heater WS3300255 | 4190001098571 | 2 |
| 7 | Instrument desk elbow weldment WS33002550097 | 4190001098572 | 1 |
| 8 | Air conditioning shield assy WS-3.3 | 4190001098573 | 1 |
| 9 | Wiper motor support | 4190001098557 | 1 |
| 10 | Accelerator cable bracket assy WS33002550188 | 4190001098558 | 1 |
| 11 | Combination pedal blocking assy WS33002550189 | 4190001098559 | 6 |
| 12 | Combination pedal panel assy WS330025500093 | 4190001098560 | 1 |
| 13 | Clutch pedal assy WS33002550156 | 4190001098561 | 1 |
| 14 | Pedal rubber sleeve assy WS33002550141 | 4190001098562 | 2 |
| 15 | Brake pedal assy WS33002550157 | 4190001098563 | 1 |
| 16 | Accelerator pedal rubber sleeve assy WS33002550169 | 4190001098564 | 1 |
| 17 | Accelerator pedal assy WS33002550162 | 4190001098565 | 1 |
