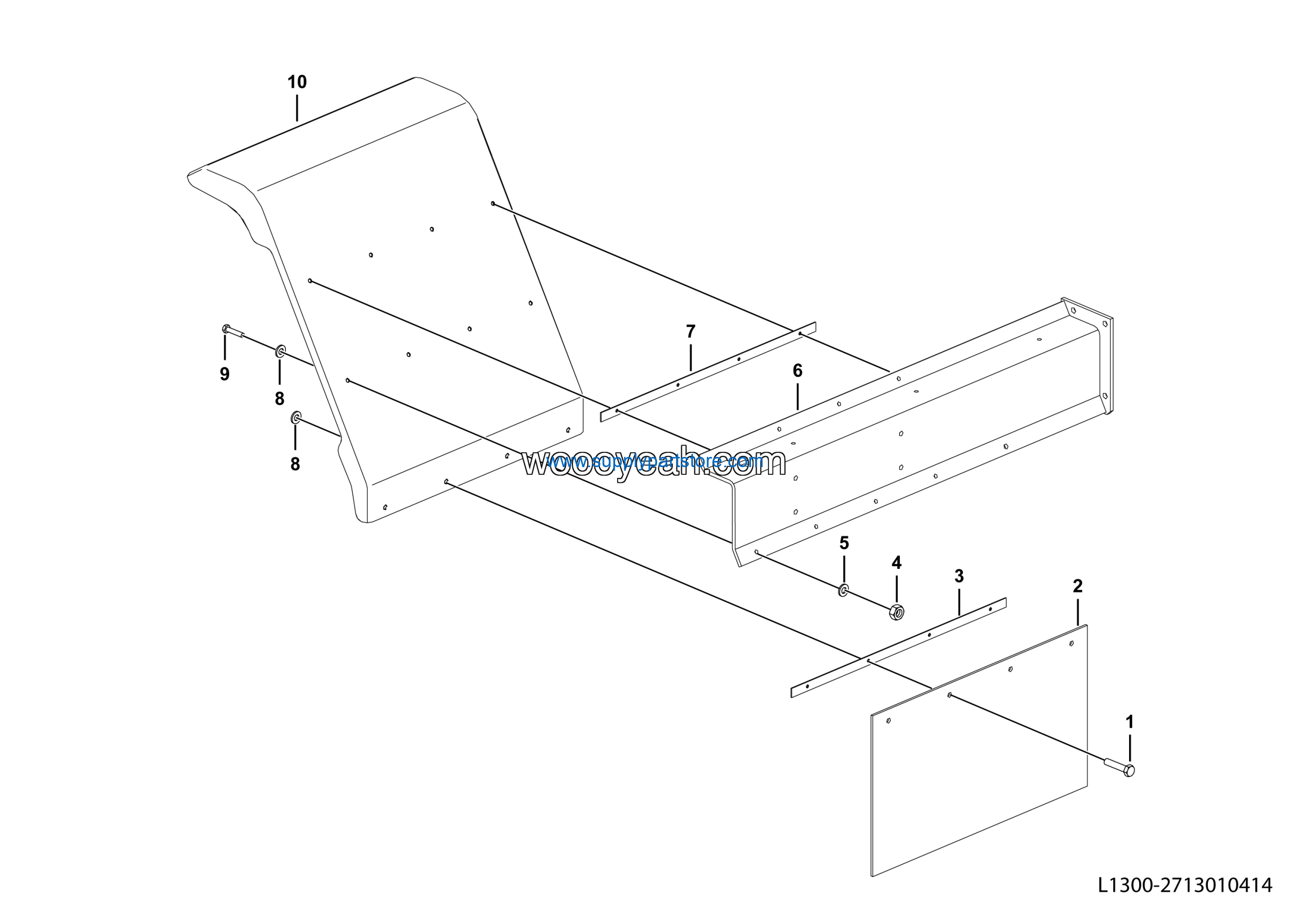

LGMG Mine Truck Mine Truck – Left mudguard assembly – L1300-2713010414
Category: Mine Truck > Mine Truck > MT86
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Left mudguard | 27130105061 | 1 |
| 2 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 4 |
| 3 | Rubber blade | 27130102582 | 1 |
| 4 | Clamping plate | 27130102601 | 1 |
| 5 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 8 |
| 6 | Washer GB96.1-10EpZn-300HV | 4015000197 | 8 |
| 7 | Left support bracket | 27130104151 | 1 |
| 8 | Rubber gasket | 27130113531 | 2 |
| 9 | Washer GB97.1-10EpZn-300HV | 4015000162 | 12 |
| 10 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 8 |
