Description

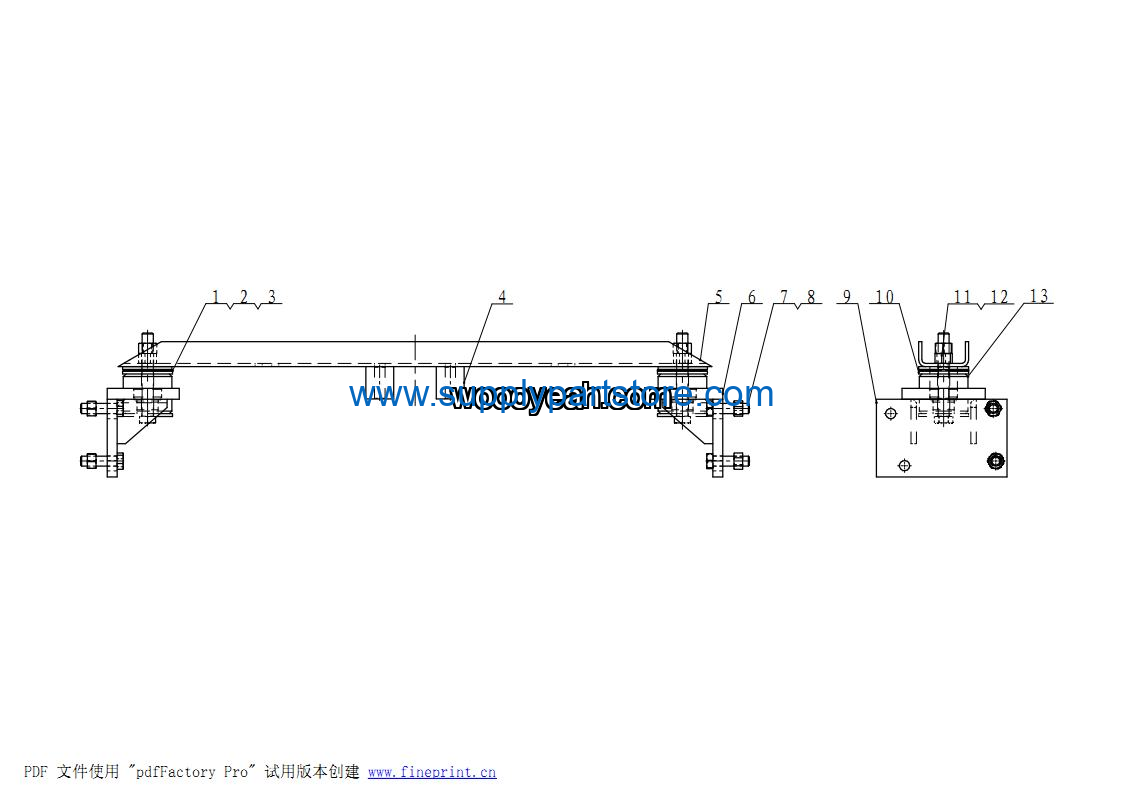

LGMG Mine Truck Mine Truck – Transmission support assembly – C3-2705010300
Category: Mine Truck > Mine Truck > MT86
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Backing plate | 27050101071 | 4 |
| 2 | Nut GB6170-M20EpZn-8 | 4013000020 | 4 |
| 3 | BOLT GB5782-M20*150EpZn-8.8 | 4011000958 | 2 |
| 4 | Absorber | 4110000101 | 2 |
| 5 | Trim plate | 27050102731 | 2 |
| 6 | Trim plate | 27050102761 | 2 |
| 7 | Trim plate | 27050102741 | 2 |
| 8 | plate | 27050102851 | 2 |
| 9 | Upper-connecting plate | 27050102941 | 1 |
| 10 | Gearbox right seat | 27050103021 | 1 |
| 11 | Bolt GB5782-M18*65EpZn-8.8 | 4011010223 | 4 |
| 12 | Nut GB6185.1-M18EpZn-8 | 4013010123 | 4 |
| 13 | Gearbox left seat | 27050103011 | 1 |
