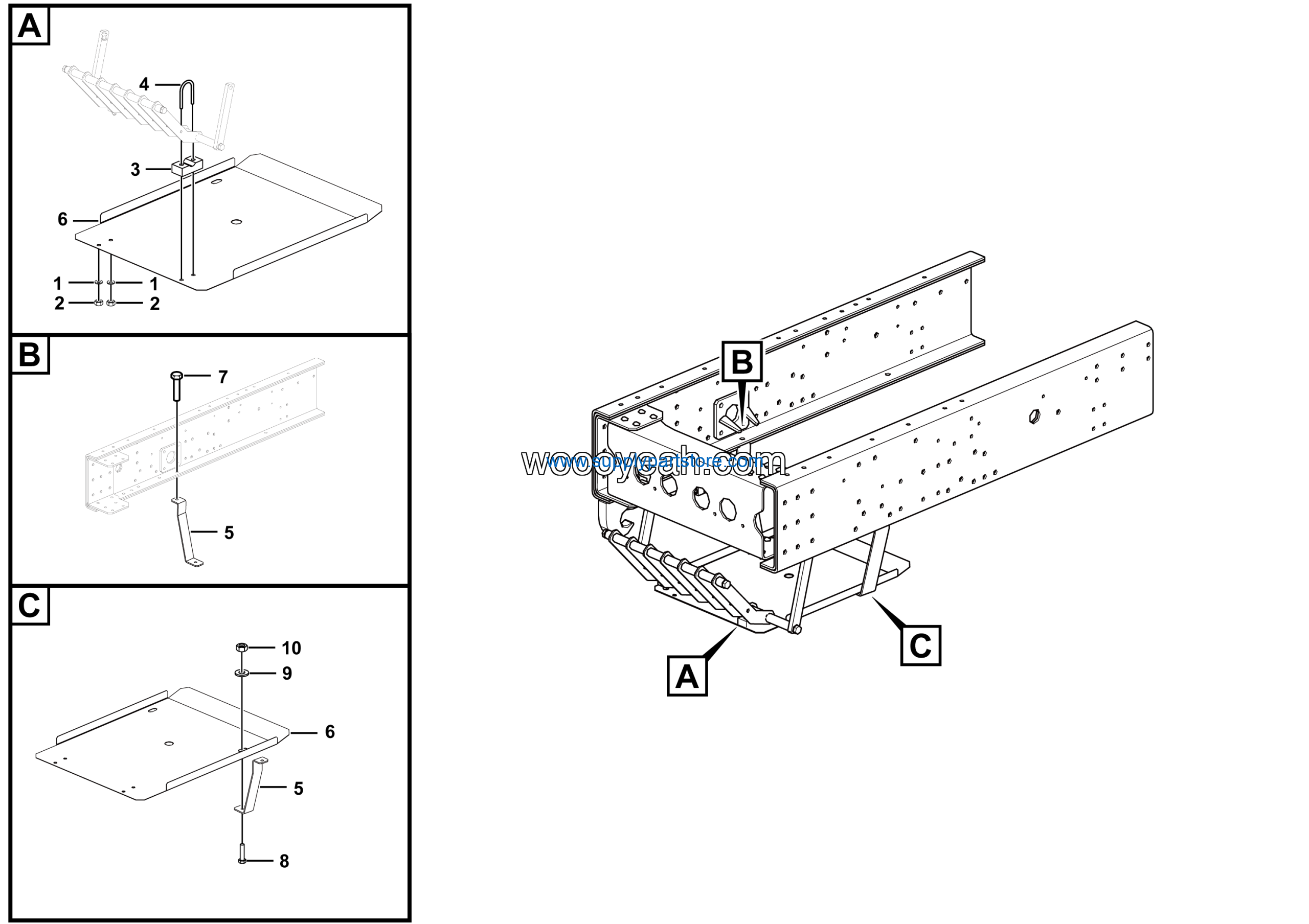

LGMG MS25 Mine Truck – Fan guide assy – I3901-2739010023
Category: Mine Truck > MS25 > MS250WA31
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 4 |
| 2 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 3 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 4 |
| 4 | Rubber mat | 27390100201 | 2 |
| 5 | U SHAP BOLT | 27390100171 | 2 |
| 6 | CONNECTED PLATE | 27390100241 | 2 |
| 7 | RIMQ PLATE | 27390100252 | 1 |
| 8 | Bolt GB5783-M14*40EpZn-8.8 | 4011000814 | 2 |
| 9 | Bolt GB5783-M14*30EpZn-8.8 | 4011000265 | 2 |
| 10 | Washer GB96.1-14EpZn-300HV | 4015000188 | 2 |
