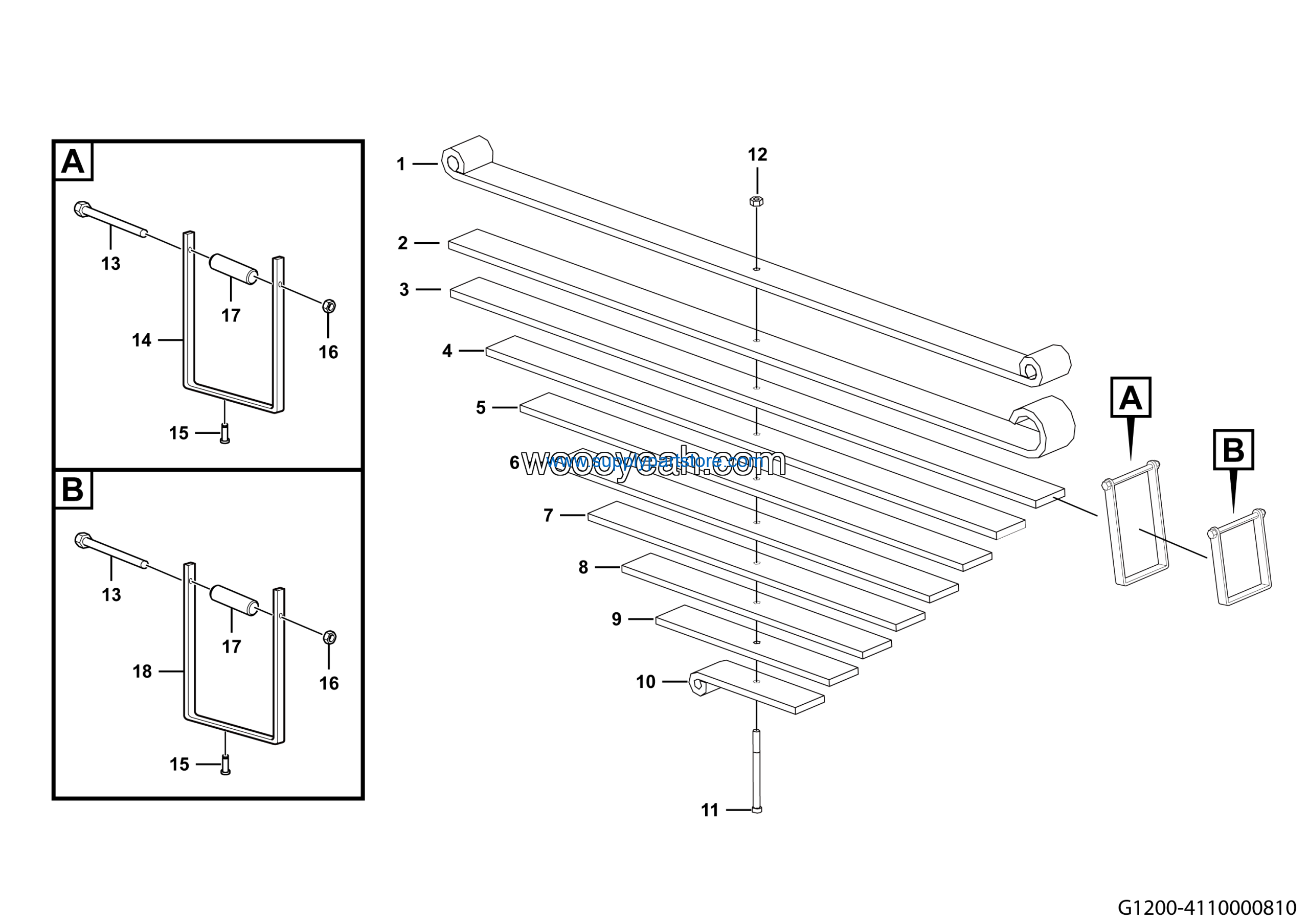

LGMG MS25 Mine Truck – Right front leaf spring assy – G1200-4110000810

Description

LGMG MS25 Mine Truck – Right front leaf spring assy – G1200-4110000810

Category: Mine Truck > MS25 > MS250WA31

Parts List:

No. Part Name Part Number Qty
1 Support plate 4110000809010 1
2 Center bolt 4110000809011 1
3 Center nut 4110000809012 1
4 Clip bolt 4110000809013 4
5 Clip 4110000809014 2
6 Rivet 4110000809015 4
7 Self-locking nut 4110000809016 4
8 Clip sleeve 4110000809017 4
9 Clamp 4110000809018 2
10 1st leaf of front leaf spring 4110000809001 1
11 2nd leaf of front leaf spring 4110000809002 1
12 3rd leaf of front leaf spring 4110000809003 1
13 4th leaf of front leaf spring 4110000809004 1
14 5th leaf of front leaf spring 4110000809005 1
15 6th leaf of front leaf spring 4110000809006 1
16 7th leaf of front leaf spring 4110000809007 1
17 8th leaf of front leaf spring 4110000809008 1
18 9th leaf of front leaf spring 4110000809009 1
