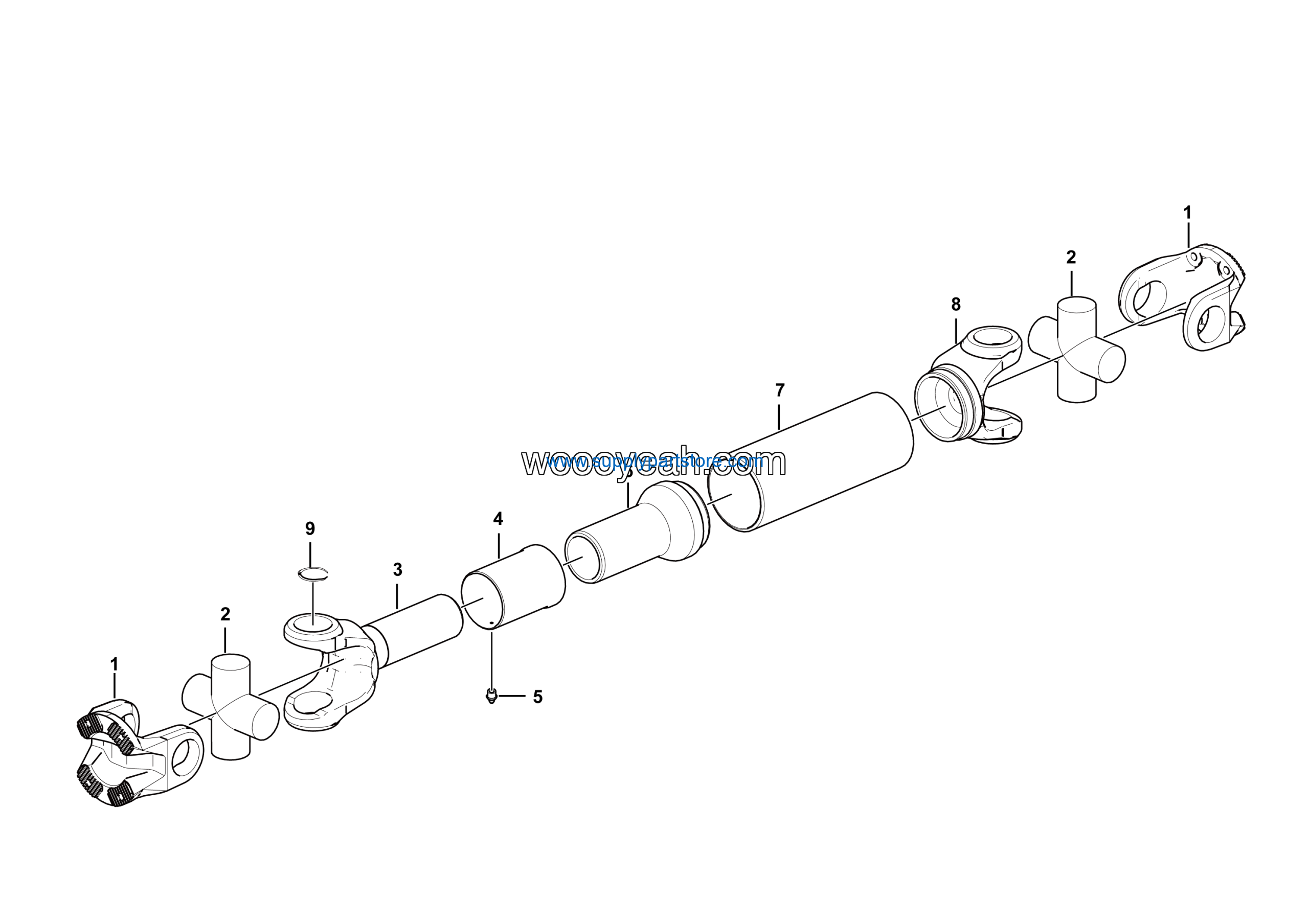

LGMG MT106 2025 – Rear drive shaft assy – F0900-4110001384
Category: 2025 > MT106 > M1060W3E0M034
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Flange york 3954110811-B | 4110001384001 | 2 |
| 2 | Cross shaft 5701-57152-T | 4110001384002 | 2 |
| 3 | Spline shaft fork 5064100002-2-L | 4110001384003 | 1 |
| 4 | Sheath pipe 3954100483-B | 4110000822005 | 1 |
| 5 | Grease nipple M6 | 4110001048006 | 1 |
| 6 | Spline hub NL57011201114 | 4110001384004 | 1 |
| 7 | Shaft tube φ120*5 | 4110001384005 | 1 |
| 8 | Cardan fork 57011201301 | 4110000186012 | 1 |
| 9 | 0069942941 Circlip | 4110000186002 | 8 |
