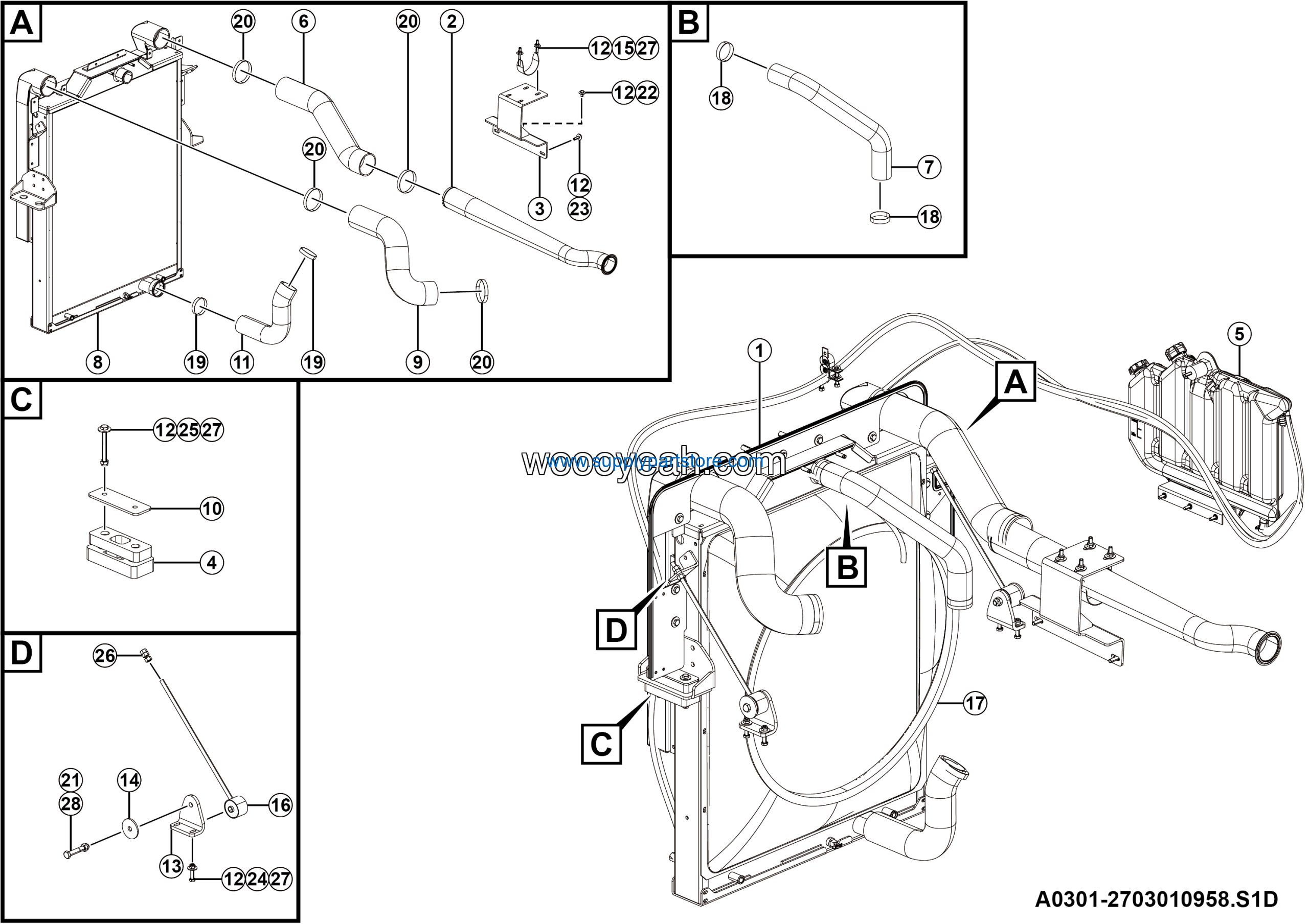

LGMG MT86H 2025 – Radiator assy – A0301-2703010958.S1D
Category: 2025 > MT86H > M086HWG88
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27030109021 | 2 |
| 2 | Engine return pipe | 27030138741 | 1 |
| 3 | Washer GB96.1-10EpZn-300HV | 4015000197 | 15 |
| 4 | Support | 27030109692 | 2 |
| 5 | Plate | 27030109731 | 2 |
| 6 | Exhaust pipe strap | 27240102332 | 2 |
| 7 | Radiator bar | 4110001451 | 2 |
| 8 | Glass fiber Reinforced plastic wind guide cover | 4110001521 | 1 |
| 9 | Butterfly spring clamp φ57-φ79 | 4190708163 | 2 |
| 10 | Butterfly spring clamp φ70-φ92 | 4190708164 | 2 |
| 11 | Radiator shield plate assembly | 27030109681 | 1 |
| 12 | Butterfly spring clamp φ93-φ118 | 4190708166 | 4 |
| 13 | Bolt GB5782-M14*85EpZn-8.8 | 4011010630 | 2 |
| 14 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 1 |
| 15 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 2 |
| 16 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 4 |
| 17 | Bolt GB5783-M10*90EpZn-8.8 | 4011000956 | 4 |
| 18 | Nut GB6170-M12EpZn-8 | 4013000011 | 6 |
| 19 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 12 |
| 20 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 2 |
| 21 | Cold air intake pipe | 27030105791 | 1 |
| 22 | Cool | 27030139031 | 1 |
| 23 | Radiator shock absorber assy | 4110001445 | 2 |
| 24 | EXPANSION TANK | 27030109101 | 1 |
| 25 | Cold air intake pipe | 27030105821 | 1 |
| 26 | Engine exit water pipe | 27030105851 | 1 |
| 27 | Radiator assy | 4110001737 | 1 |
| 28 | Cold air exit pipe | 27030105831 | 1 |
