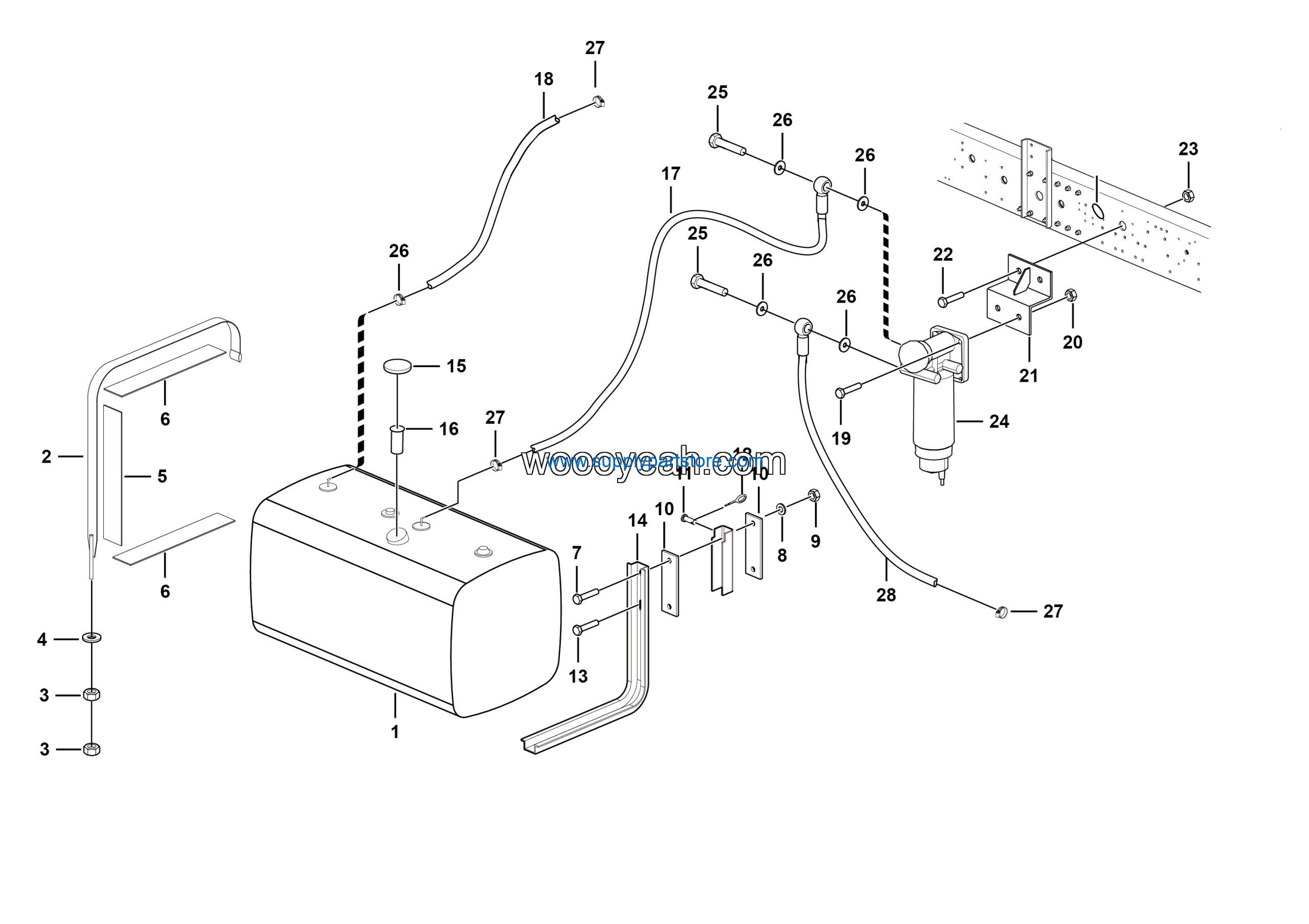

LGMG MT86H Mine Truck – Fuel tank assy – A0207-2702010221
Category: Mine Truck > MT86H > M086HWE03
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Fixed plate | 27020101021 | 3 |
| 2 | Pin | 4110000120 | 3 |
| 3 | Pin GB91-3.2*22EpZn-Q235A | 4016000183 | 3 |
| 4 | Bolt GB5782-M16*70EpZn-10.9 | 4011000824 | 2 |
| 5 | Fuel tank bracket assy | 4110000118 | 3 |
| 6 | Aluminium oil box cover | 4049010004 | 1 |
| 7 | Fuel sieve | 4110000046 | 1 |
| 8 | Oil pipe ⅰ | 27020103141 | 1 |
| 9 | Fuel pipe ii | 27020102631 | 1 |
| 10 | Bolt GB16674.1-M12*45EpZn-8.8 | 4011000467 | 2 |
| 11 | Fuel tank 530L | 4110001888 | 1 |
| 12 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 2 |
| 13 | Plate | 27010110491 | 1 |
| 14 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 2 |
| 15 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 2 |
| 16 | Fuel filter | 4110000134 | 1 |
| 17 | Bolt JB999-M14*1.5*32EpZn-35 | 4011000344 | 2 |
| 18 | Washer JB1002-14-T2 | 4030000057 | 4 |
| 19 | No longer used | 4030100107 | 3 |
| 20 | FUEL HOSE Ⅲ | 27020101351 | 1 |
| 21 | Cable tie assy | 4110000119 | 3 |
| 22 | Nut GB6170-M16EpZn-8 | 4013000016 | 6 |
| 23 | Washer GB97.1-16EpZn-300HV | 4015000181 | 3 |
| 24 | Flap | 4110000121 | 3 |
| 25 | Flap | 4110000122 | 6 |
| 26 | Bolt GB5783-M16*60EpZn-10.9 | 4011010205 | 4 |
| 27 | Washer GB97.1-16EpZn-300HV | 4015000181 | 6 |
| 28 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 6 |
