Description

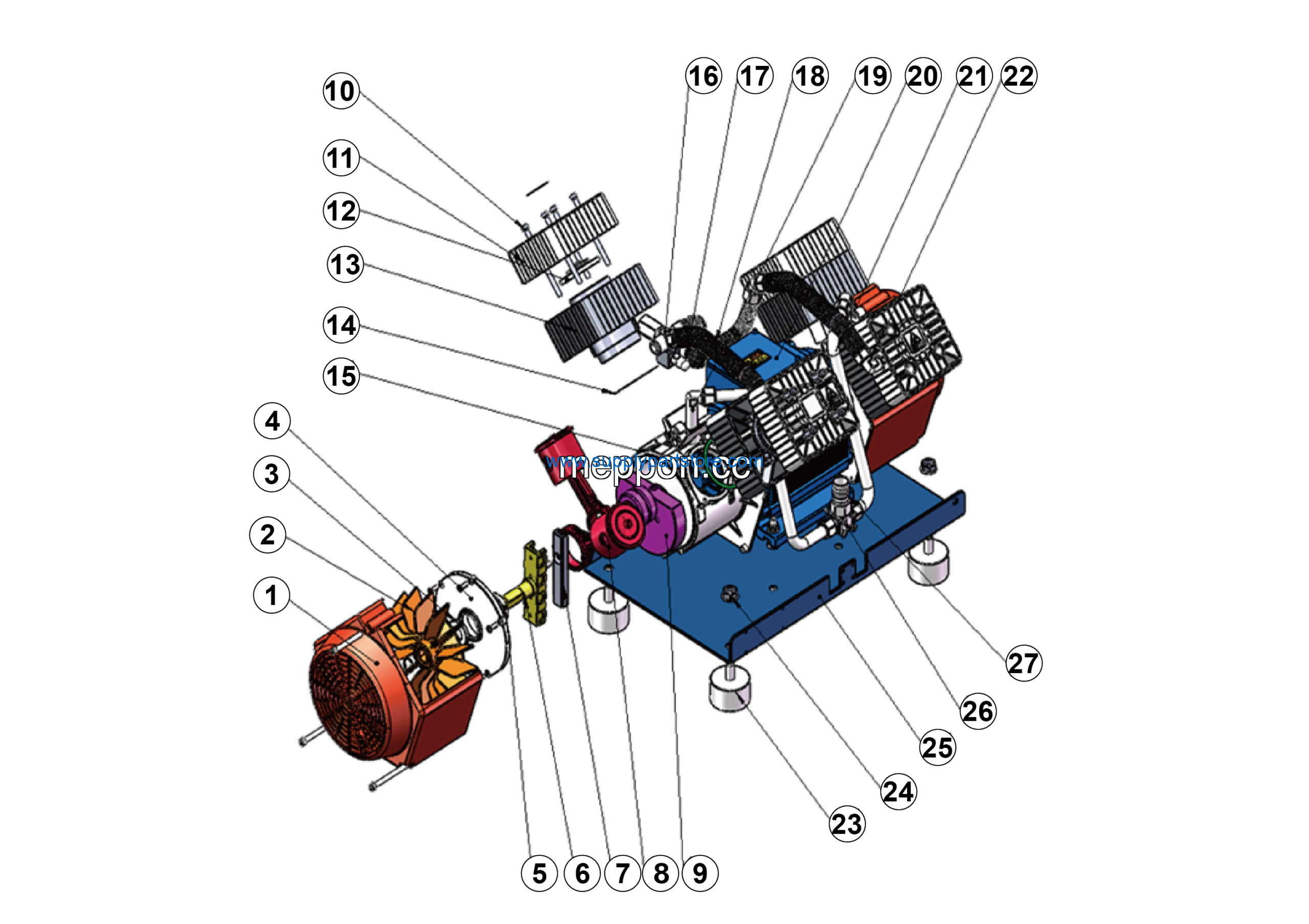

LGMG MTE106H 2025 – Air compressor qxac4p/4g686-4kw – N1200-4120711497
Category: 2025 > MTE106H > C106HE0A0A501
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | M6 * 105 hexagonal round head bolt 10.9 grade | 4120711497011 | 16 |
| 2 | Cylinder head | 4120711497012 | 4 |
| 3 | Valve plate assembly | 4120711497013 | 4 |
| 4 | Cylinder assembly | 4120711497014 | 4 |
| 5 | Cylinder sealing paper gasket | 4120711497015 | 4 |
| 6 | Twin cylinder housing | 4120711497016 | 2 |
| 7 | Exhaust five-way connector | 4120711497017 | 1 |
| 8 | Safety valve | 4120711497018 | 2 |
| 9 | Exhaust heat dissipation copper pipe | 4120711497019 | 2 |
| 10 | Intake elbow | 4120711497020 | 1 |
| 11 | Wind hood | 4120711497002 | 2 |
| 12 | Motor | 4120711497021 | 1 |
| 13 | Intake wire bellows | 4120711497022 | 2 |
| 14 | Exhaust elbow | 4120711497023 | 4 |
| 15 | Shock-absorbing pad | 4120711497024 | 4 |
| 16 | M12 flange anti-loosening nut grade 10 | 4120711497025 | 1 |
| 17 | Baseplate | 4120711497026 | 1 |
| 18 | Air intake tee base | 4120711497027 | 1 |
| 19 | Intake tower adapter | 4120711497028 | 1 |
| 20 | 60 blades | 4120711497003 | 2 |
| 21 | Skeleton oil seal 20 * 38 * 5 | 4120711497004 | 2 |
| 22 | Twin-cylinder housing side cover | 4120711497005 | 2 |
| 23 | 6004ddu deep groove ball bearing | 4120711497006 | 2 |
| 24 | Nylon vane shaft | 4120711497007 | 2 |
| 25 | Blade eccentric block | 4120711497008 | 2 |
| 26 | Piston connecting rod assembly | 4120711497009 | 4 |
| 27 | Eccentric wheel assembly | 4120711497010 | 2 |
