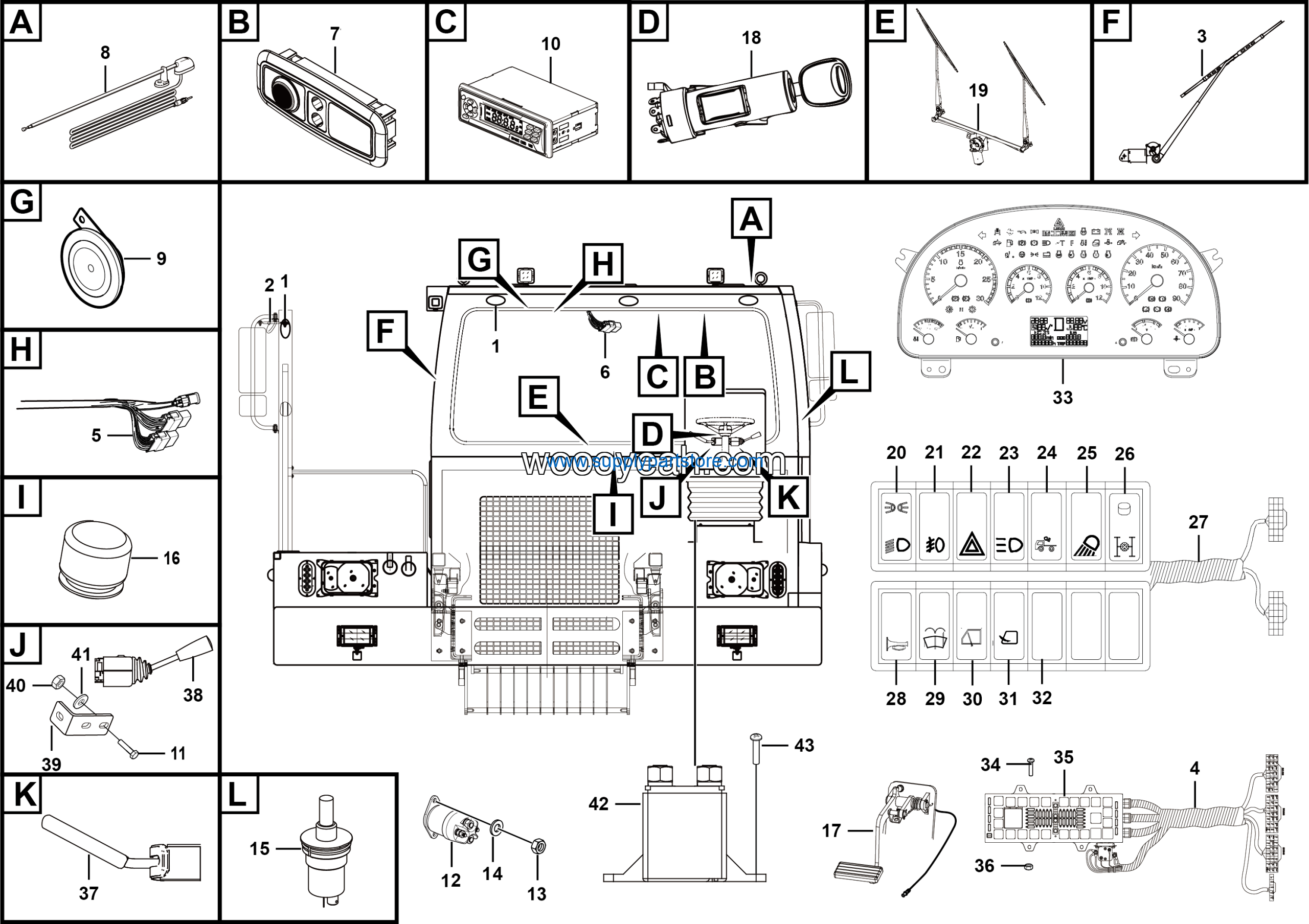

LGMG Off-Highway Dump Truck 2020 – Cab electrical system-fresh air system – K1301-2713012209
Category: 2020 > Off-Highway Dump Truck > MT95H > M095HHAE8
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Voice alarm MOD TK-050-LB66-1 | 4130701557 | 1 |
| 2 | Screw GB818-M5*16EpZn-4.8 | 4014000088 | 5 |
| 3 | Relay 202S-FLO | 4130000671 | 1 |
| 4 | Nut GB6170-M6EpZn-8 | 4013000028 | 1 |
| 5 | Washer GB97.1-6-300HV | 4015000230 | 1 |
| 6 | Door lamp switch LG751 | 4130000323 | 1 |
| 7 | Cigarette lighter LG770 | 4130000364 | 1 |
| 8 | ELEK accelerator pedal 403269 | 4130701363 | 1 |
| 9 | Lgnition lock-81.46433.6009-1 | 4130001175 | 1 |
| 10 | Integral wiper 37419000040 | 4130000949 | 1 |
| 11 | Cab FR position light | 4130000954 | 4 |
| 12 | Work/position light rocker switch JK939C | 4130000318 | 1 |
| 13 | FR fog lamp rocker switch JK939C | 4130000314 | 1 |
| 14 | Central alarm rocker switch JK939C | 4130000320 | 1 |
| 15 | Main-beam headlamp rocker switch JK939C | 4130000331 | 1 |
| 16 | Cab RR work lamp rocker switch JK939C | 4130000342 | 1 |
| 17 | Work lamp rocker switch JK939C | 4130000319 | 1 |
| 18 | Rocker switch JK939C（Differential） | 4130000317 | 1 |
| 19 | Become warped plate switch wiring harness | 27130117571 | 1 |
| 20 | Horn rocker switch JK939C | 4130000315 | 1 |
| 21 | Wiper washing rocker switch JK939C | 4130000819 | 1 |
| 22 | Platform harness | 27200106091 | 1 |
| 23 | Side window wiper rocker switch JK939C | 4130000341 | 1 |
| 24 | Fresh air sys rocker switch JK939C | 4130701609 | 1 |
| 25 | Cover plate | 4130000328 | 3 |
| 26 | Stepping instrument panel | 4130701335 | 1 |
| 27 | Screw GB846-ST4.8*16-C-H | 4014000071 | 4 |
| 28 | Elec box 202114057 | 4130001007 | 1 |
| 29 | Washer GB97.1-6EpZn-300HV | 4015000207 | 9 |
| 30 | Combination switch CS-102621 | 4130001174 | 1 |
| 31 | Manual switch 35240020220 | 4130000924 | 1 |
| 32 | Retarder switch bracket | 4190003285 | 1 |
| 33 | Side wiper sys | 4130000807 | 1 |
| 34 | Nut GB6170-M5EpZn-8 | 4013010029 | 3 |
| 35 | Washer GB97.1-5EpZn-300HV | 4015000110 | 3 |
| 36 | Contactor | 4130701341 | 1 |
| 37 | Screw GB818-M6*20EpZn-4.8 | 4014000040 | 9 |
| 38 | Self-assembled standard parts assembly | 27130121631 | 1 |
| 39 | Cab wire-fresh air system | 27130122102 | 1 |
| 40 | Cab ceiling harness | 27130118092 | 1 |
| 41 | Head cap harness | 27130118101 | 1 |
| 42 | Indoor ceiling lamp LG751 | 4130000312 | 1 |
| 43 | Antenna QT1290B259 | 4130000300 | 1 |
| 44 | Horn TX1033AR29 | 4130000299 | 2 |
