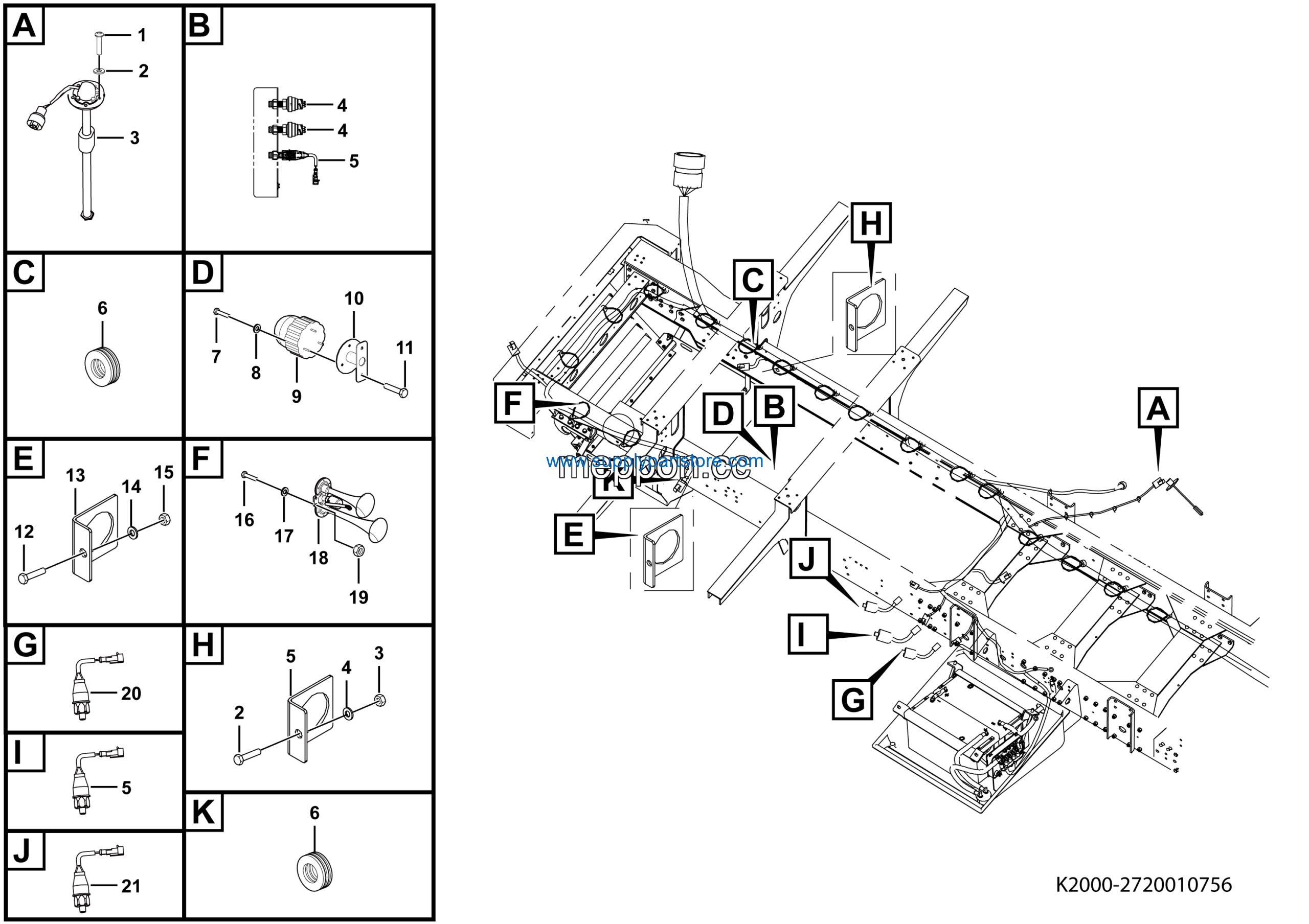

LGMG Road Sprinkler 2024 – Chassis electricity assy – K2000-2720010756
Category: 2024 > Road Sprinkler > CMS50 > CS500W3E0A011
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Support | 27130114201 | 1 |
| 2 | Screw GB818-M4*16EpZn-4.8 | 4014000087 | 3 |
| 3 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 2 |
| 4 | Itt plate | 27200107441 | 2 |
| 5 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 6 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 7 | Bolt GB5783-M6*16EpZn-8.8 | 4011000289 | 2 |
| 8 | Washer GB97.1-6-300HV | 4015000230 | 2 |
| 9 | Dual tone air horn 379803022309 | 4130000386 | 1 |
| 10 | Nut GB6170-M6EpZn-8 | 4013000028 | 2 |
| 11 | Screw GB818-M5*10EpZn-4.8 | 4014000023 | 5 |
| 12 | Parking pressure switch 0.55MPa | 4130000006 | 1 |
| 13 | Electromagnetic valve air pressure switch 0.3MPa | 4130000007 | 1 |
| 14 | Large circular warning beacon YQDQ-JS-03 | 4130704079 | 1 |
| 15 | Washer GB97.1-5EpZn-300HV | 4015000110 | 5 |
| 16 | Single rod fuel sensor | 4130000616 | 1 |
| 17 | Air pressure sensor YG2221SLN | 4130000990 | 2 |
| 18 | Stop lamp switch YK209KLA | 4130000492 | 2 |
| 19 | String casing | 27140105021 | 3 |
| 20 | Bolt GB16674.1-M8*16EpZn-8.8 | 4011000461 | 2 |
| 21 | Washer GB97.1-4EpZn-300HV | 4015000135 | 3 |
| 22 | Alarm lamp 2RL-009506-51 | 4130000669 | 1 |
