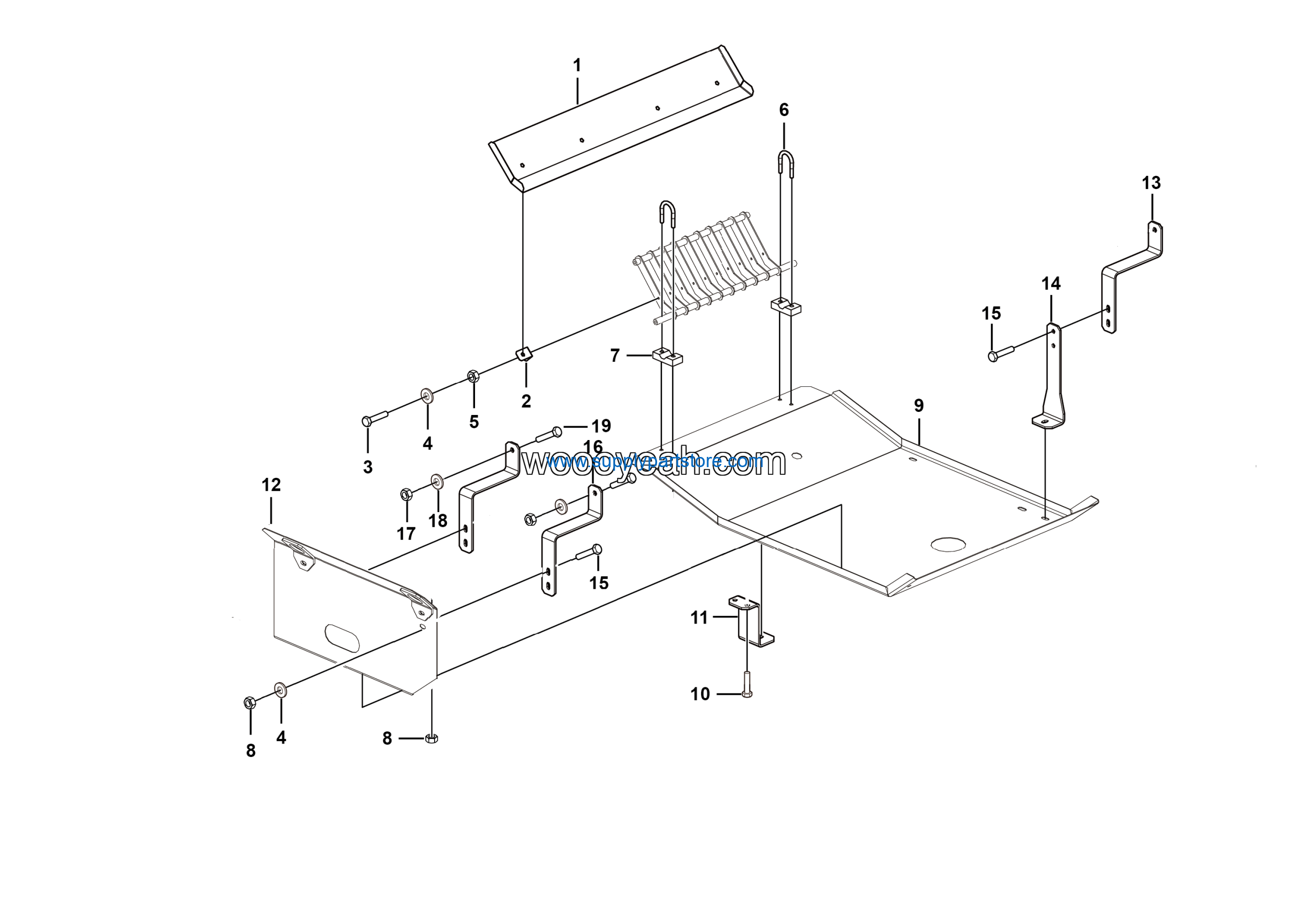

LGMG Off-Highway Dump Truck 2021 – Fan guide assy – I3902-2739010150
Category: 2021 > Off-Highway Dump Truck > MT86H > M086HWB67
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 4 |
| 2 | Connecting seat | 27390100801 | 2 |
| 3 | Baffle assembly | 27390100732 | 1 |
| 4 | Link span | 27390101521 | 1 |
| 5 | Plate | 27390100791 | 1 |
| 6 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 4 |
| 7 | Link span | 27390100761 | 2 |
| 8 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 4 |
| 9 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 10 | Bolt GB5783-M12*50EpZn-8.8 | 4011000092 | 4 |
| 11 | Front guard plate | 27390100361 | 1 |
| 12 | Connecting plate | 27390100351 | 4 |
| 13 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 16 |
| 14 | Washer GB96.1-10EpZn-300HV | 4015000197 | 34 |
| 15 | Nut GB6170-M10EpZn-8 | 4013000007 | 8 |
| 16 | U SHAP BOLT | 27390100171 | 2 |
| 17 | Rubber mat | 27390100201 | 2 |
| 18 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 16 |
| 19 | Windshield | 27390101511 | 1 |
