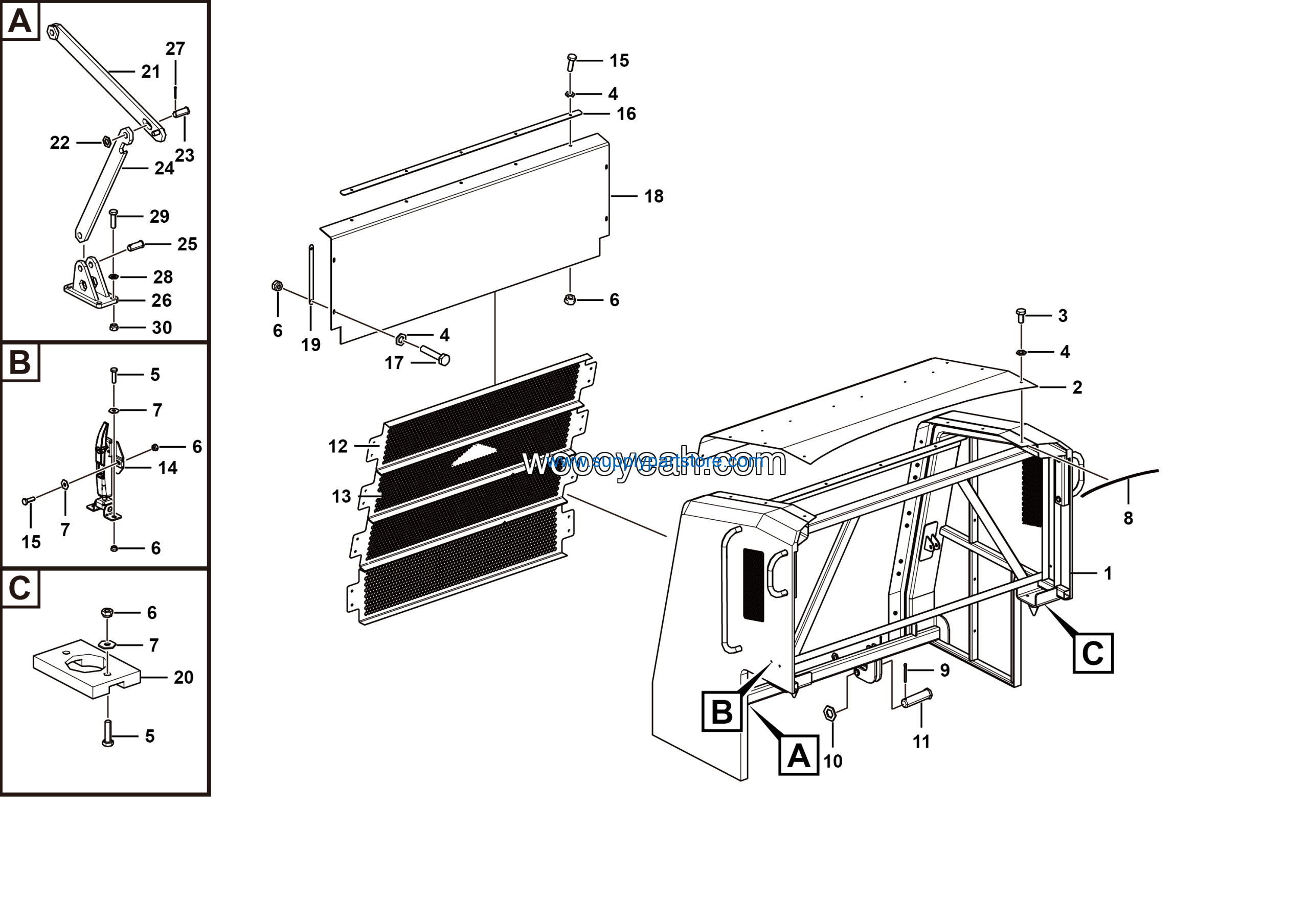

LGMG Off-Highway Dump Truck 2022 – Hood mounting assy – L3601-2736013510.S1A
Category: 2022 > Off-Highway Dump Truck > CMT96 > C0960WF67
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-24EpZn-300HV | 4015000167 | 2 |
| 2 | Pin GB882-B24*90EpZn-35 | 4016010151 | 2 |
| 3 | FIRST CROSSWISE BEAM RIGHT CONNECT PLATE | 27360117161 | 3 |
| 4 | Plate | 27360117171 | 1 |
| 5 | Lock chain DK636-1（ShengJiu） | 4190704689 | 2 |
| 6 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 9 |
| 7 | Plate | 27360108931 | 1 |
| 8 | Bolt GB5783-M8*40EpZn-8.8 | 4011000299 | 4 |
| 9 | Plate | 27360117201 | 1 |
| 10 | Plate | 27360109021 | 2 |
| 11 | Hood assembly | 27360135111 | 1 |
| 12 | Plate | 27360135161 | 2 |
| 13 | PLATE | 27360117271 | 1 |
| 14 | Washer GB97.1-16EpZn-300HV | 4015000181 | 4 |
| 15 | Pin GB882-B16*40EpZn-35 | 4016010153 | 1 |
| 16 | CROSSWISE BEAM | 27360117241 | 1 |
| 17 | Pin GB882-B16*60EpZn-35 | 4016010152 | 2 |
| 18 | PIN | 27360117211 | 1 |
| 19 | Pin GB91-3.2*26EpZn-Q235A | 4016000179 | 3 |
| 20 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 21 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 4 |
| 22 | Hood cover plate assy | 27360119451 | 1 |
| 23 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 4 |
| 24 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 24 |
| 25 | Washer GB97.1-8EpZn-300HV | 4015000072 | 33 |
| 26 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 8 |
| 27 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 21 |
| 28 | Washer GB96.1-8EpZn-300HV | 4015000256 | 12 |
| 29 | PLATE | 27360117151 | 1 |
| 30 | Pin GB91-5*40EpZn-Q235A | 4016000127 | 2 |
