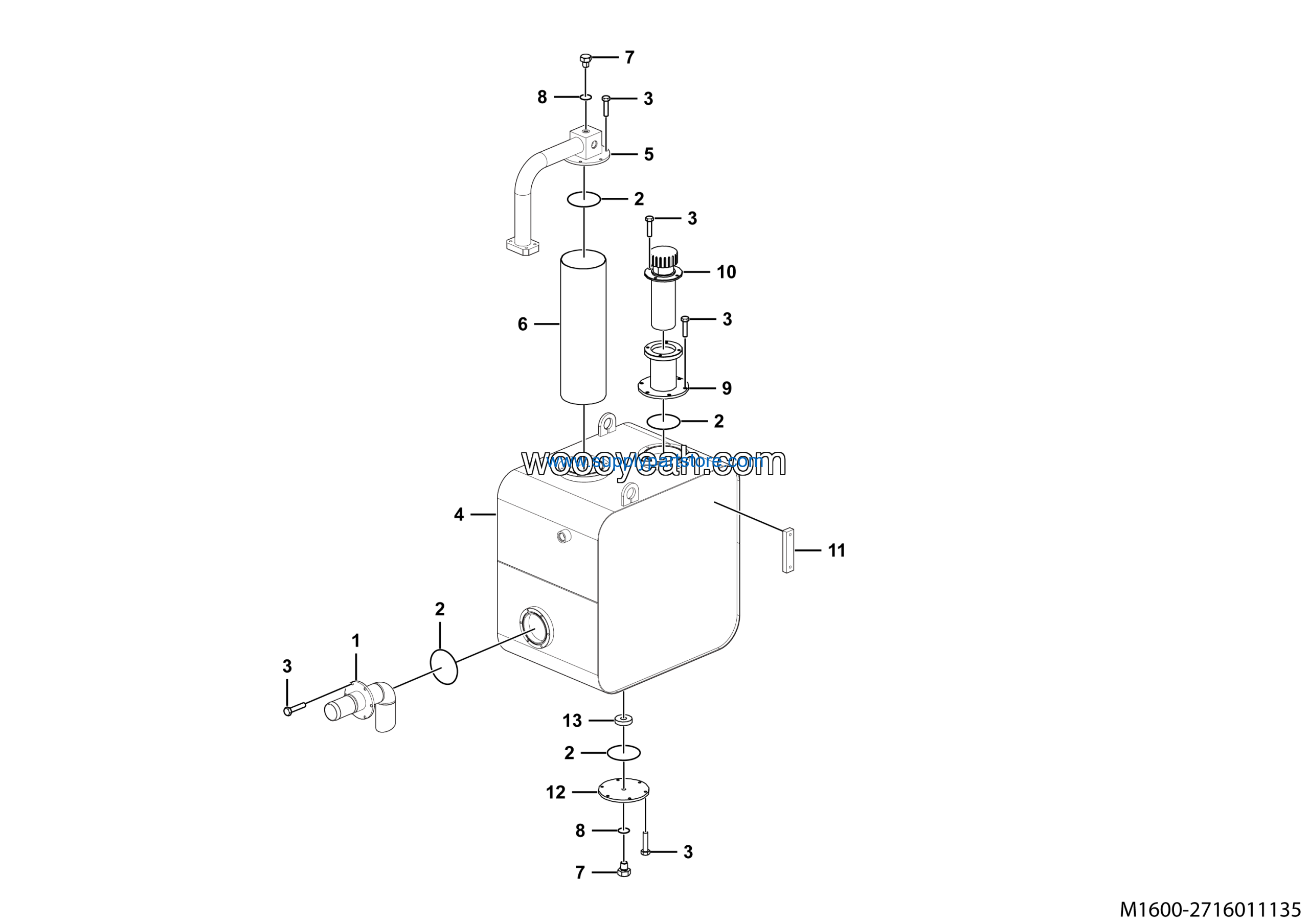

LGMG Off-Highway Dump Truck 2022 – Hydraulic oil tank assy – M1600-2716011135
Category: 2022 > Off-Highway Dump Truck > MT60D > M060DW2E0M002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Refueling filter respirator | 4120000303 | 1 |
| 2 | Liquid level gauge YWZ-127 | 4120000317 | 1 |
| 3 | Oil drain flange cover | 27160105801 | 1 |
| 4 | Ring magnet LG03-CT58*20*13 | 4120000669 | 1 |
| 5 | Flange assembly | 27160110241 | 1 |
| 6 | O-ring GB3452.1-128*3.55G | 4030000633 | 4 |
| 7 | Bolt GB16674.1-M8*20EpZn-8.8 | 4011000458 | 28 |
| 8 | Hydraulic tank body | 27160111341 | 1 |
| 9 | Oil return flange assembly | 27160110231 | 1 |
| 10 | Oil return filter | 4120001743 | 1 |
| 11 | Nut LGB135-01422 | 4041000774 | 2 |
| 12 | O-ring LGB168-11124 | 4041000767 | 2 |
| 13 | Oil charging breather bracket | 27160106261 | 1 |
