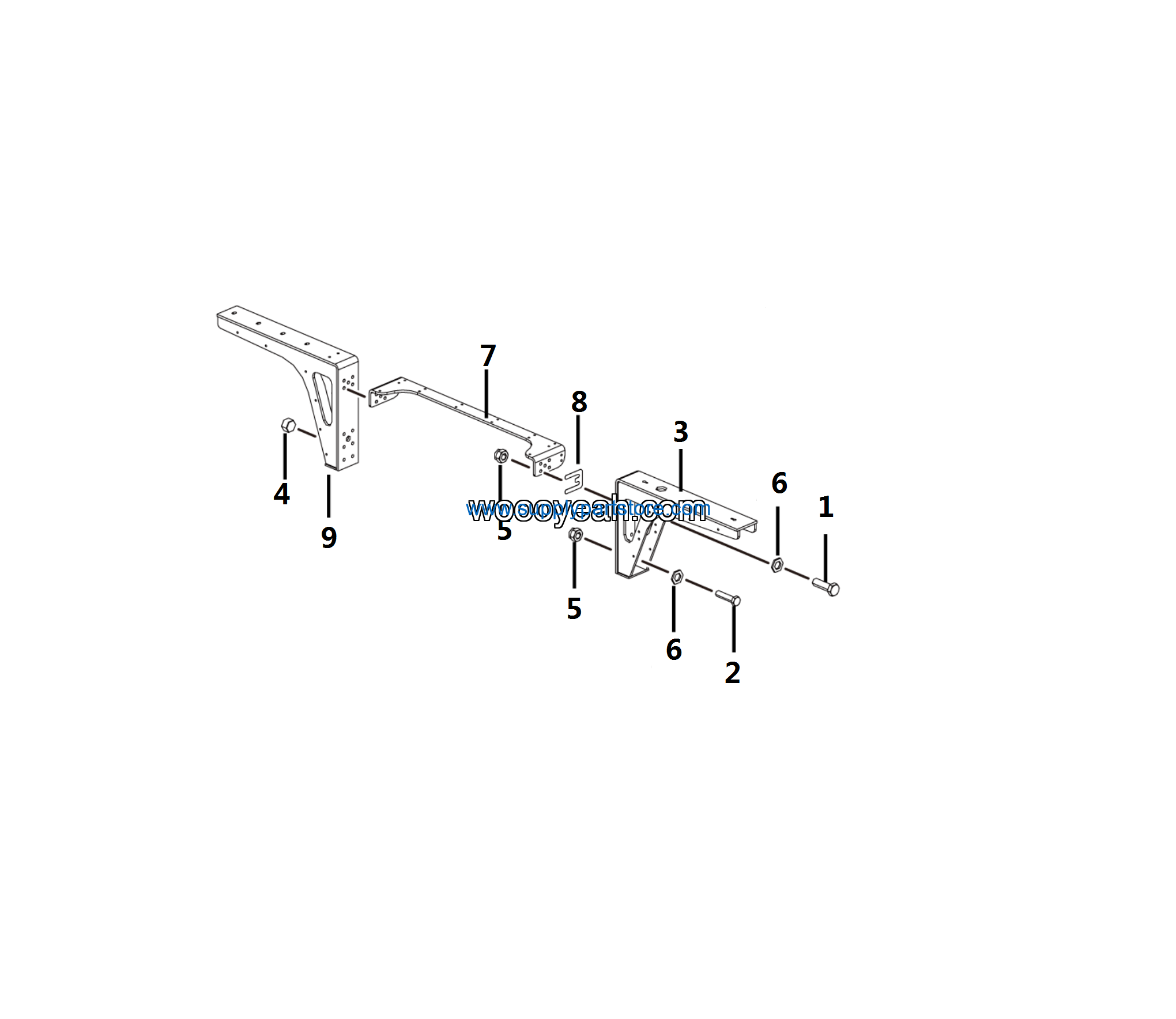

LGMG Off-Highway Dump Truck 2022 – Installation assy of Bench – L3600-2736015188
Category: 2022 > Off-Highway Dump Truck > MT106H > M106HW3A2M003
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M16*55EpZn-10.9 | 4011000562 | 10 |
| 2 | Bolt GB5783-M16*65EpZn-10.9 | 4011000665 | 12 |
| 3 | Plate | 27360137411 | 1 |
| 4 | Cushion block | 27120113681 | 2 |
| 5 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 22 |
| 6 | Washer GB97.1-16EpZn-300HV | 4015000181 | 22 |
| 7 | Plate | 27360151891 | 1 |
| 8 | Washer | 27360131421 | 4 |
| 9 | Support | 27360151911 | 1 |
