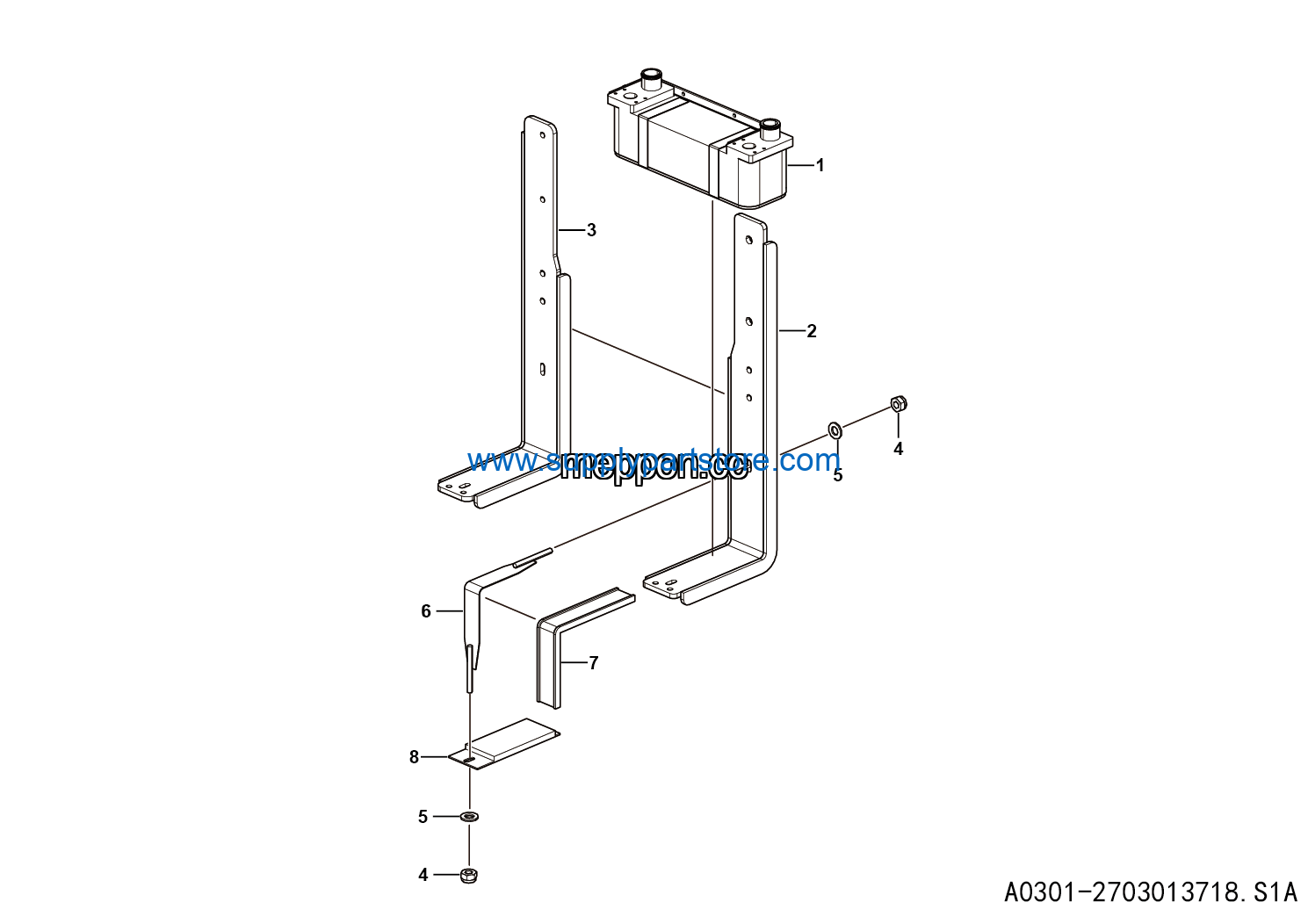

LGMG Off-Highway Dump Truck 2022 – Oil Radiator installation assy – A0301-2703013718.S1A
Category: 2022 > Off-Highway Dump Truck > MT86H- > M0860W4A0A001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Oil cooler | 4110001236 | 1 |
| 2 | Oil cooler bracket assembly | 27030137191 | 1 |
| 3 | Oil cooler bracket assembly | 27030137211 | 1 |
| 4 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 4 |
| 5 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 6 | Strap | 27030107251 | 2 |
| 7 | Plate | 27050106212 | 1 |
| 8 | Plate | 27050106201 | 1 |
