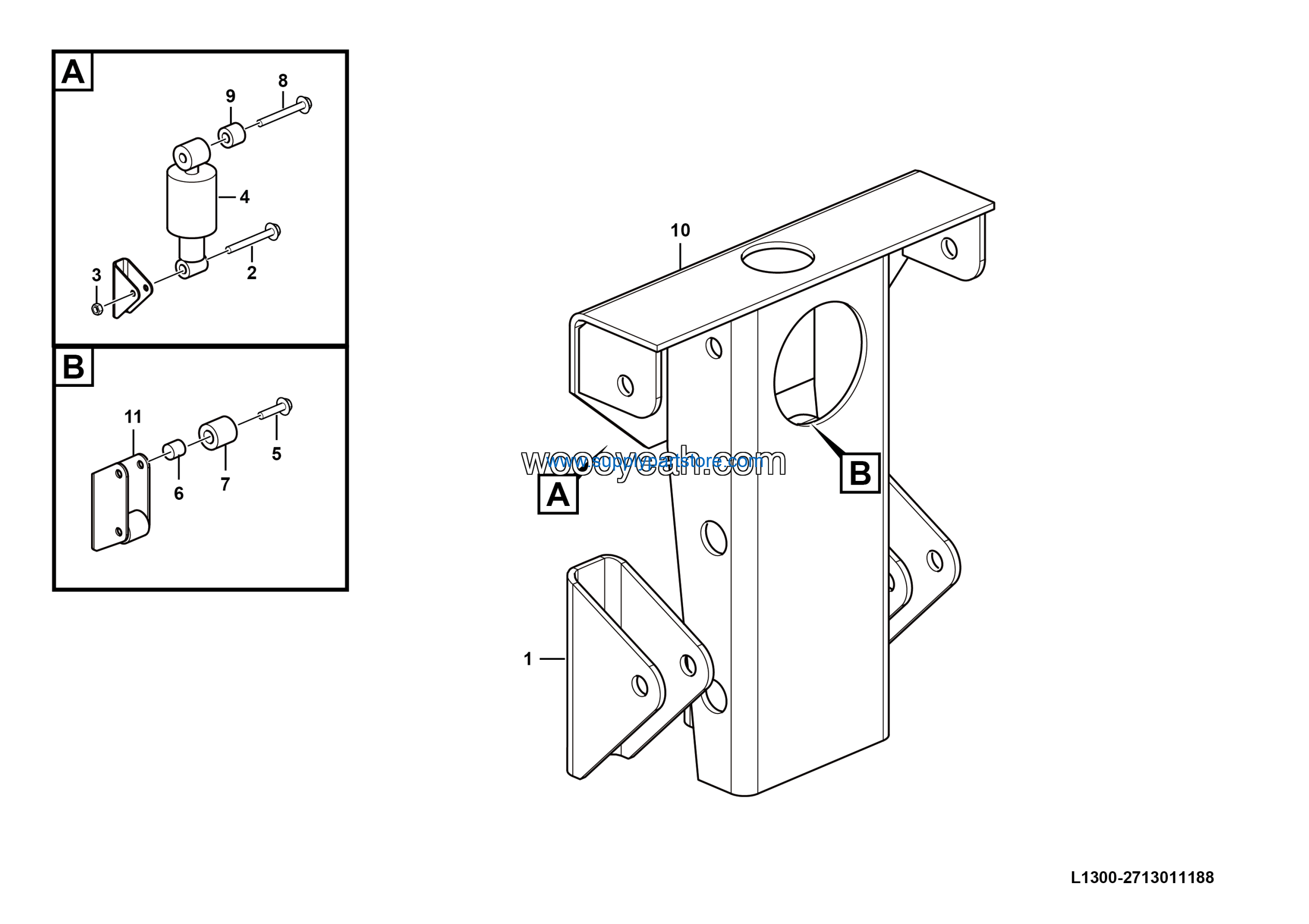

LGMG Off-Highway Dump Truck 2022 – Right rear suspension assy – L1300-2713011188
Category: 2022 > Off-Highway Dump Truck > MT50 > M0500W2E0M002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Rear suspension assembly of cab | 27130102272 | 1 |
| 2 | Plate | 27130111901 | 1 |
| 3 | Plate | 27130111891 | 2 |
| 4 | Bolt GB5782-M14*80EpZn-8.8 | 4011000832 | 2 |
| 5 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 6 |
| 6 | Spring bumper assembly | 27130102341 | 2 |
| 7 | Bolt GB5782-M14*90EpZn-8.8 | 4011000420 | 2 |
| 8 | Sleeve | 27130102331 | 2 |
| 9 | Sleeve | 27130102321 | 2 |
| 10 | Bolt GB5782-M14*100EpZn-8.8 | 4011010155 | 2 |
| 11 | Damper spacer sleeve | 27130102241 | 2 |
