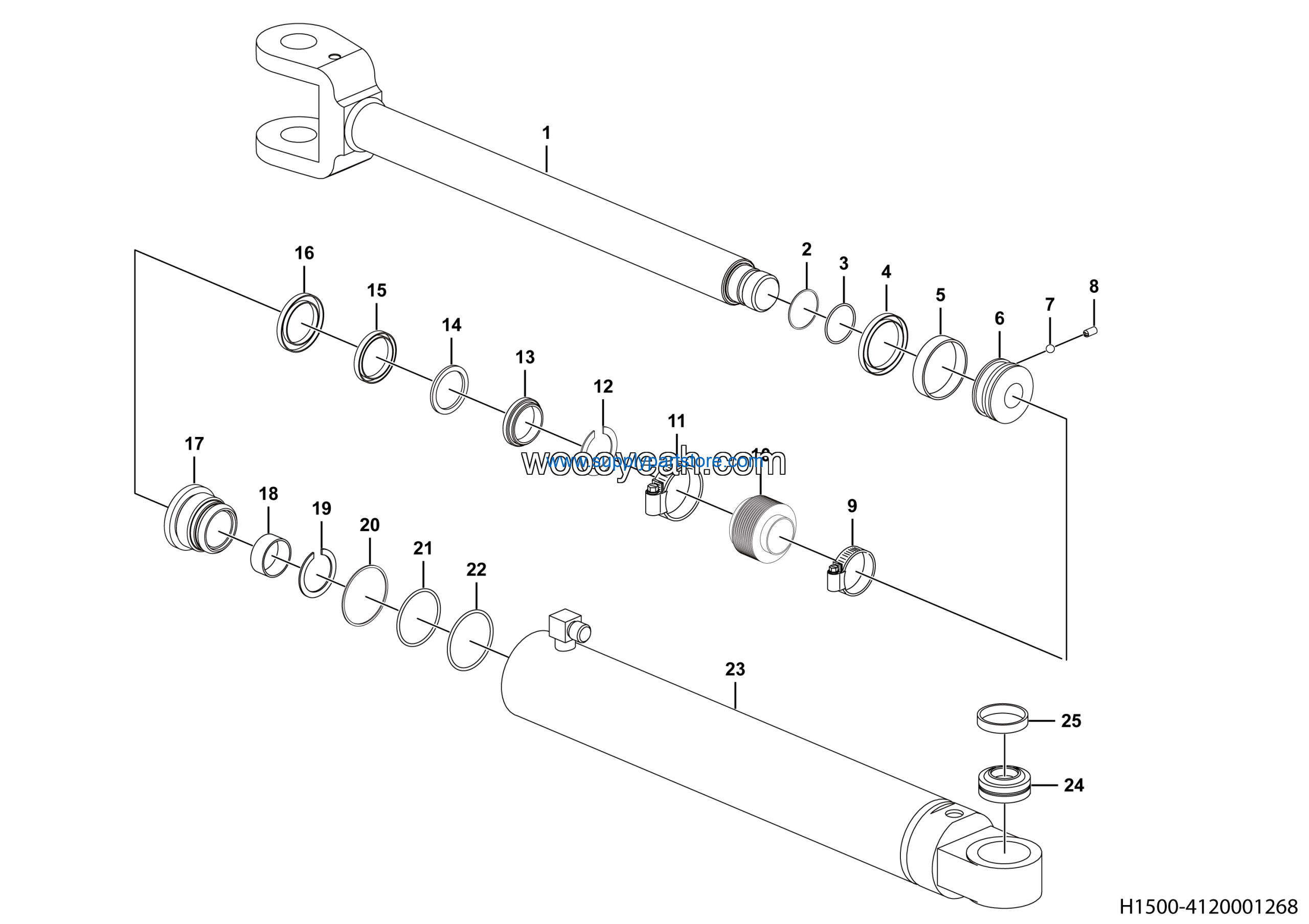

LGMG ？？？a？2？？？？？？？°a？2？¨？？？| 2025 – Steering sylinder assy – H1500-4120001268
Category: 2025 > ？？？a？2？？？？？？？°a？2？¨？？？| > MS40 > MS400W3E0M123
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Sheath 24W720010 | 4120000443011 | 1 |
| 2 | Hose clamp 24TM45003 | 4120001322021 | 1 |
| 3 | Steel wire snap ring 24C090090 | 4120001322010 | 1 |
| 4 | Seal-Dustproof 24D204002 | 4120001322009 | 1 |
| 5 | Snap ring 24E00403C | 4120001322008 | 1 |
| 6 | Seal-Piston rod 24F204003 | 4120001322007 | 1 |
| 7 | Seal-Buffering 24H004004 | 4120001322006 | 1 |
| 8 | Cylinder cover 24C105060 | 4120001322003 | 1 |
| 9 | Bush 24S240151 | 4120001322004 | 1 |
| 10 | Snap ring 24C090060 | 4120001322005 | 1 |
| 11 | Piston rod assy 24A410240 | 4120001268001 | 1 |
| 12 | O-ring backup ring 24M10700C（65.2*70*1.25） | 4120001322012 | 1 |
| 13 | O-ring 24K10650A | 4120001322011 | 1 |
| 14 | O-ring 24K307001 | 4120001322013 | 1 |
| 15 | Cylinder barrel assy 24A430500 | 4120001104005 | 1 |
| 16 | Joint bearing assy 24U103001 | 4120000928018 | 1 |
| 17 | Snap ring assy 24C014100 | 4120000928019 | 1 |
| 18 | Snap ring 24M30450C | 4120001322017 | 1 |
| 19 | O-ring 24K10400A | 4120001322016 | 1 |
| 20 | Seal-Piston 24P207002 | 4120001322015 | 1 |
| 21 | Support ring 24G207031 | 4120001104002 | 1 |
| 22 | Piston 24C106060 | 4120001104003 | 1 |
| 23 | Screw 24T906081 | 4120001104004 | 1 |
| 24 | Steel ball 24U004001 | 4120001322019 | 1 |
| 25 | Hose clamp 24TM90003 | 4120001322020 | 1 |
