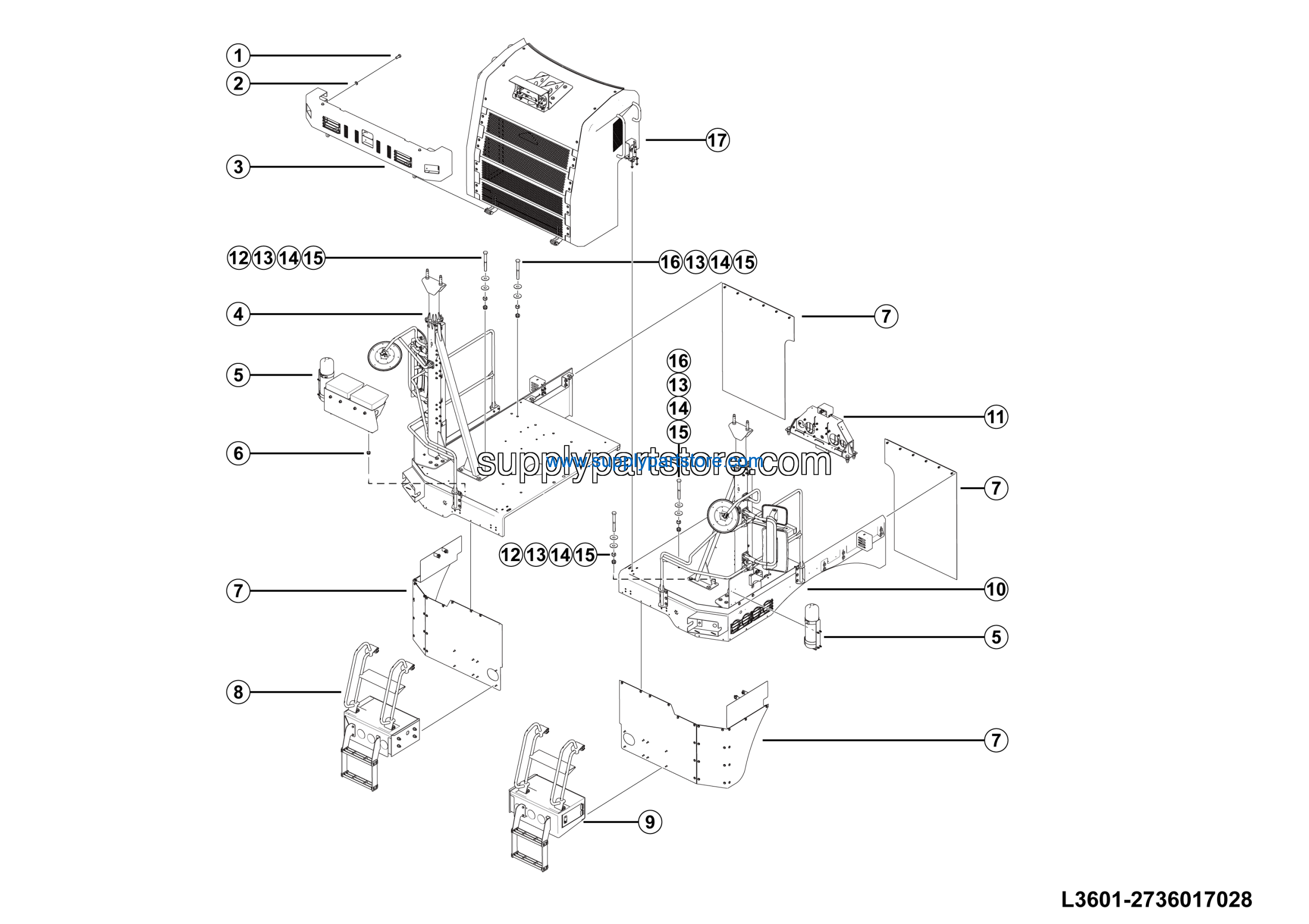

LGMG Off-Highway Dump Truck 2023 – Covering assy – L3601-2736017028
Category: 2023 > Off-Highway Dump Truck > RTH136 > R1360Y3A0A103
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Left platform assy | 27360175391 | 1 |
| 2 | Tail beam assy | 27360176051 | 1 |
| 3 | Bolt m14 * 130 (60) | 27360175701 | 8 |
| 4 | Washer GB96.1-14EpZn-300HV | 4015000188 | 38 |
| 5 | Nut GB6170-M14flZnyc-10-480 | 4013010543 | 20 |
| 6 | Nut GB6185.1-M14flZnyc-12-480 | 4013010253 | 19 |
| 7 | Bolt m14 * 120 (60) | 27360170221 | 11 |
| 8 | Hood installation | 27360170541 | 1 |
| 9 | Bolt GB5783-M16*40EpZn-8.8 | 4011000096 | 8 |
| 10 | Washer GB97.1-16EpZn-300HV | 4015000181 | 8 |
| 11 | Bumper assy | 27360170301 | 1 |
| 12 | Right platform assy | 27360175471 | 1 |
| 13 | Tage additional assy | 27360176171 | 1 |
| 14 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 3 |
| 15 | Mudguard assy | 27360175561 | 1 |
| 16 | Right pedal assy | 27360176151 | 1 |
| 17 | Left pedal assy | 27360176141 | 1 |
