Description

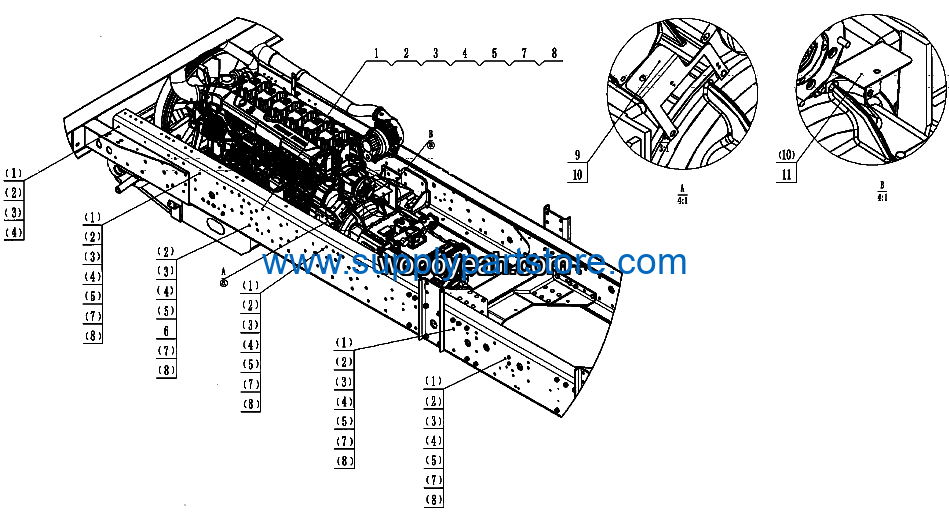

LGMG Off-Highway Dump Truck 2022 – Engine harness fixed system – K3400-2734010151
Category: 2022 > Off-Highway Dump Truck > MT96L > M096LW3A0M106-1
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 2 | Plate | 27340101591 | 1 |
| 3 | Bracket 1 | 27100103561 | 6 |
| 4 | Bolt GB5783-M10*35flZnyc-8.8-480 | 4011010727 | 7 |
| 5 | Nut GB6177.1-M10flZnyc-8-480 | 4013010375 | 7 |
| 6 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 7 |
| 7 | Nut GB6177.1-M8flZnyc-8-480 | 4013010386 | 7 |
| 8 | Bracket | 27100105951 | 1 |
| 9 | Pipe clamp | 26370001941 | 6 |
| 10 | Bolt GB5783-M8*25flznyc-8.8-480 | 4011010743 | 7 |
| 11 | Plate | 27340101581 | 1 |
