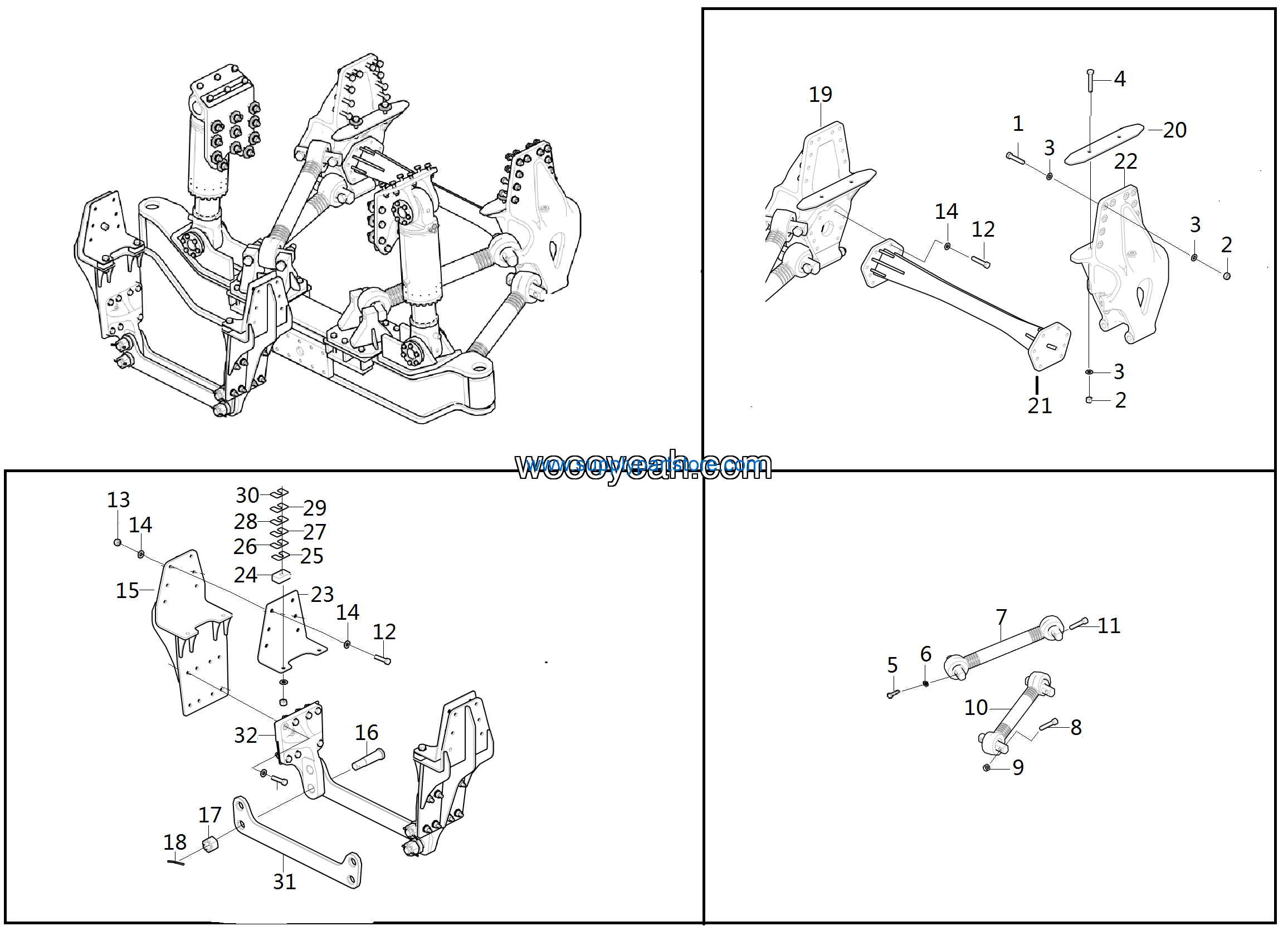

LGMG Off-Highway Dump Truck 2023 – Guide mechanism mounting assy – G1200-2712012424.S1B
Category: 2023 > Off-Highway Dump Truck > CMTE106H > C106HE0A0A201
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Lower thrust rod assy LG12-601 | 4110703195 | 2 |
| 2 | Bolt GB5782-M27*160flZnyc-12.9-480 | 4011011220 | 4 |
| 3 | Bolt GB5782-M16*70flZnyc-12.9-480 | 4011010615 | 48 |
| 4 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 48 |
| 5 | Washer GB97.1-16EpZn-300HV | 4015000181 | 84 |
| 6 | Seat | 27120123822 | 2 |
| 7 | Pin40*80 | 27120123391 | 4 |
| 8 | Nut GB6178-M36EpZn-10 | 4013010114 | 4 |
| 9 | Pin GB91-6.3*63EpZn-Q235A | 4016000113 | 4 |
| 10 | Front left thust rod support | 27120123521 | 1 |
| 11 | Bolt GB5785-M18*1.5*90flZnyc-12.9-480 | 4011010496 | 20 |
| 12 | Plate | 27120124352 | 4 |
| 13 | First beam | 27120124092 | 1 |
| 14 | Front right thust rod support | 27120123531 | 1 |
| 15 | Plate | 27120123851 | 2 |
| 16 | Plate | 27120169921 | 4 |
| 17 | Adjusting shim | 27120114771 | 2 |
| 18 | Adjusting shim | 27120114781 | 2 |
| 19 | Adjustment gasket | 27120117822 | 2 |
| 20 | Adjusting shim | 27120123461 | 2 |
| 21 | adjusting shim | 27120118401 | 4 |
| 22 | Nut GB6185.2-M18*1.5flZnyc-12-480 | 4013010239 | 24 |
| 23 | sdjusting shim | 27120118411 | 4 |
| 24 | Second beam pole | 27120122481 | 2 |
| 25 | Second beam seat | 27120122491 | 2 |
| 26 | Washer 18 | 27120105412 | 48 |
| 27 | Bolt GB5785-M18*1.5*100flZnyc-12.9-480 | 4011010485 | 4 |
| 28 | BOLT GB5783-M27*100flZnyc-12.9-480 | 4011010767 | 8 |
| 29 | Washer | 27120104921 | 12 |
| 30 | Upr thrust rod assy LG12-698 | 4110703194 | 2 |
| 31 | BOLT GB5782-M27*240-12.9 | 4011011154 | 4 |
| 32 | Hexangular self-locking nut with the shoulder M27 | 27120103881 | 8 |
