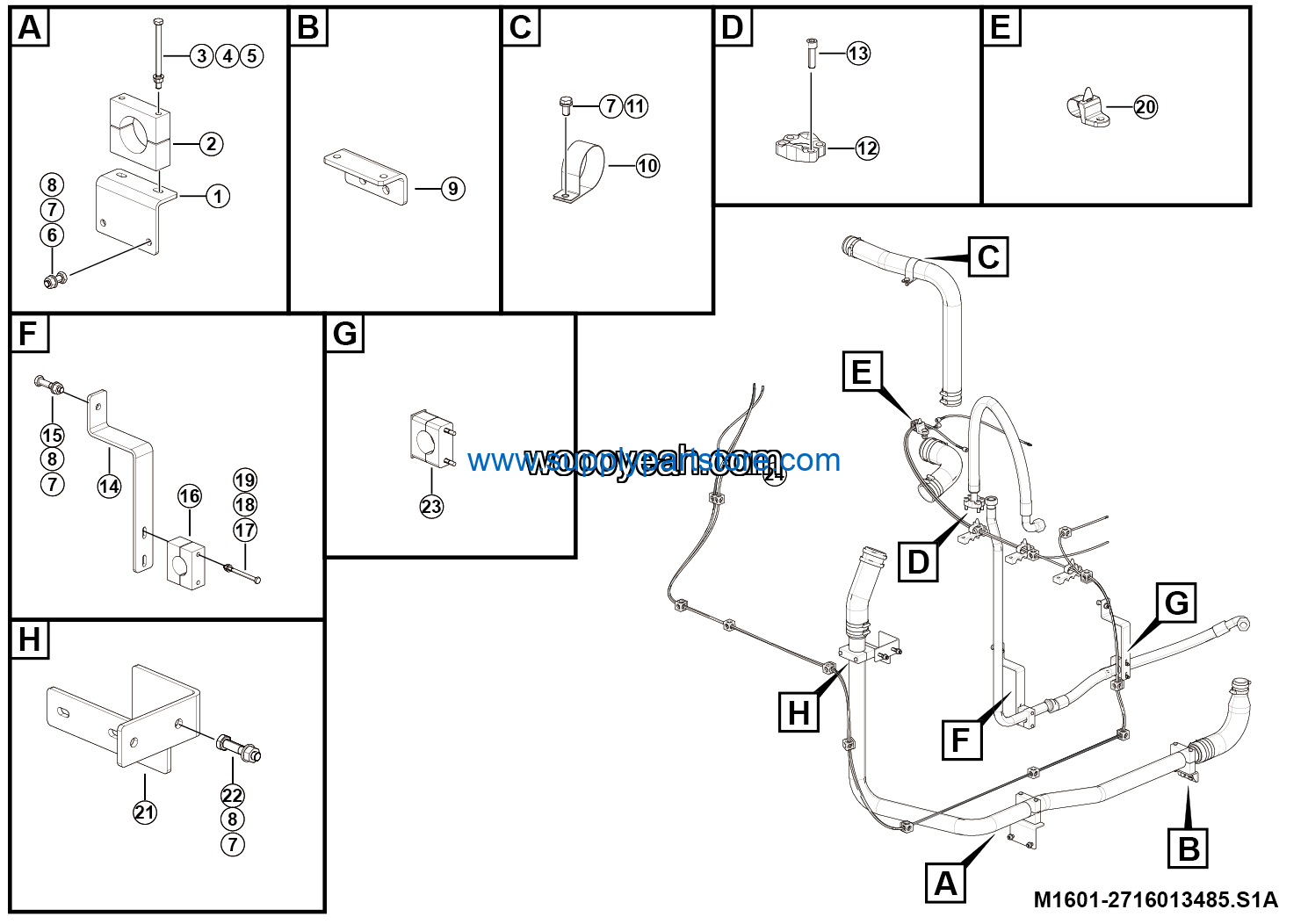

LGMG Off-Highway Dump Truck 2023 – Hoist accessories – M1601-2716013485.S1A
Category: 2023 > Off-Highway Dump Truck > CMTE86 > C0860E0A0A002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Reinforced clamp R1-D70-M10 | 4190707985 | 1 |
| 2 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 3 |
| 3 | Split flange LGB117-310491 | 4041000026 | 1 |
| 4 | Screw GB70.1-M10*35EpZn-8.8 | 4014000227 | 4 |
| 5 | Z-bracket 290*115*6 | 27160134341 | 2 |
| 6 | Bolt GB5782-M10*50EpZn-8.8 | 4011000048 | 4 |
| 7 | Clamp-34 | 27160134361 | 1 |
| 8 | Bolt GB5782-M6*75flZnyc-8.8-480 | 4011011080 | 4 |
| 9 | Washer GB97.1-6EpZn-300HV | 4015000207 | 4 |
| 10 | Nut GB6170-M6EpZn-8 | 4013000028 | 4 |
| 11 | L-bracket 130*90*6 | 27160134871 | 1 |
| 12 | Cable tie 14400342 | 4130703098 | 4 |
| 13 | Retaining plate | 27160134881 | 1 |
| 14 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 2 |
| 15 | Tube clamp TLPG16-538 | 4120710372 | 1 |
| 16 | Hoist lines assy | 27160134841 | 1 |
| 17 | Single-hole pipe clamp-60 | 27160134371 | 3 |
| 18 | Bolt GB5782-M8*110EpZn-8.8 | 4011000588 | 6 |
| 19 | Washer GB97.1-8EpZn-300HV | 4015000072 | 6 |
| 20 | Nut GB6170-M8EpZn-8 | 4013000033 | 6 |
| 21 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 3 |
| 22 | Washer GB97.1-10EpZn-300HV | 4015000162 | 10 |
| 23 | Nut GB6170-M10EpZn-8 | 4013000007 | 7 |
| 24 | L-bracket 100*45*6 | 27160134891 | 1 |
