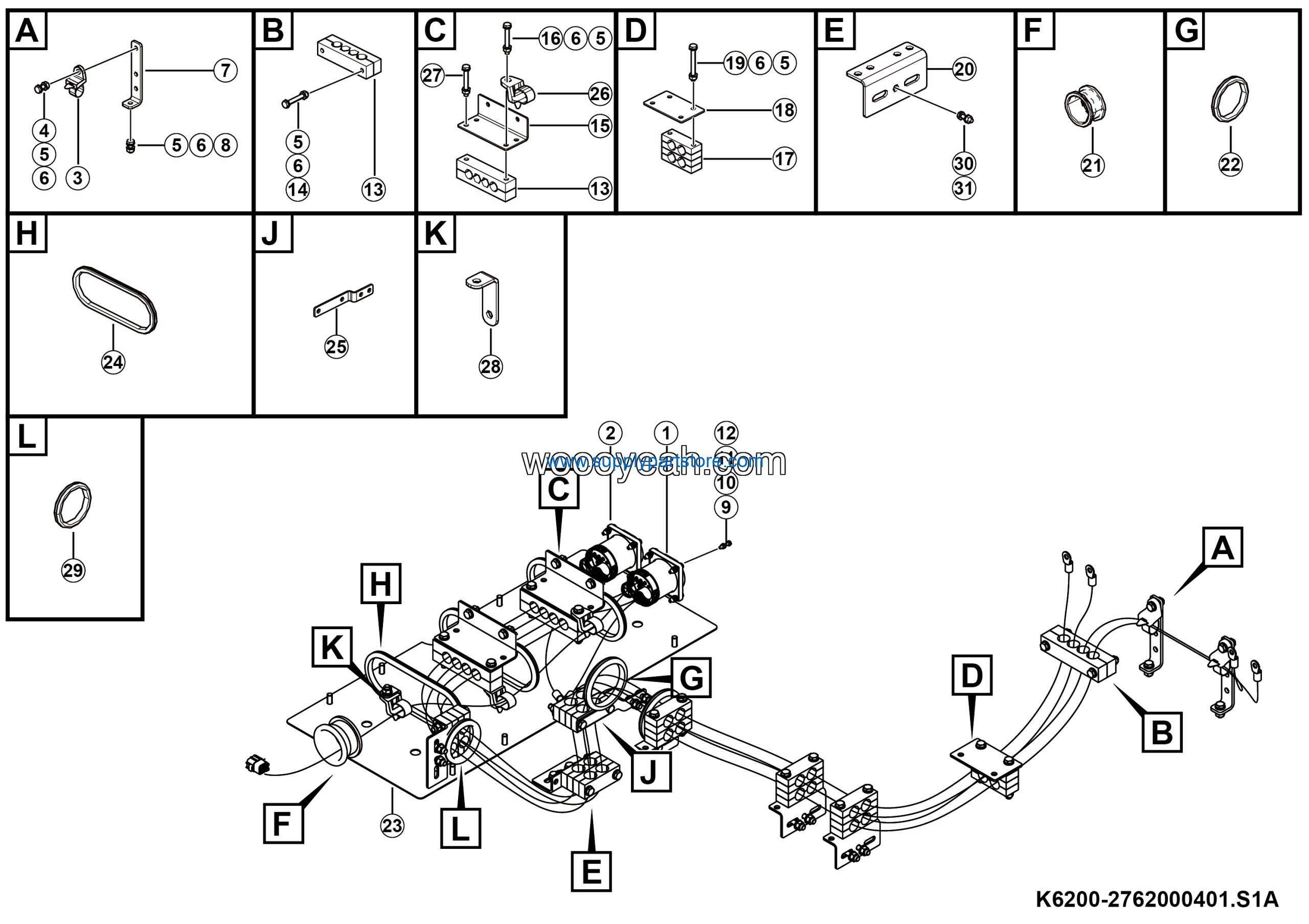

LGMG Off-Highway Dump Truck 2023 – Power socket electrical assy – K6200-2762000401.S1A
Category: 2023 > Off-Highway Dump Truck > CMTE86 > C0860E0A0A002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-6EpZn-300HV | 4015000207 | 16 |
| 2 | Double sack wedge lock washer HF6 | 4190708407 | 8 |
| 3 | Nut GB6185.1-M6EpZn-8 | 4013010117 | 8 |
| 4 | Tube bank plate 165*25*35 | 27620003881 | 6 |
| 5 | Bolt GB5782-M10*70EpZn-8.8 | 4011000051 | 2 |
| 6 | L-bracket 165*60*75 | 27620003901 | 2 |
| 7 | Bolt GB5782-M10*75EpZn-8.8 | 4011000052 | 2 |
| 8 | Tube bank plate 100*35*17 | 27620003921 | 28 |
| 9 | Bracket 130*80*4 | 27620004571 | 1 |
| 10 | Bolt GB5782-M10*90EpZn-8.8 | 4011000053 | 14 |
| 11 | DC power socket 2 | 4130706131 | 1 |
| 12 | L-bracket 125*40*60 | 27620003871 | 5 |
| 13 | Protection | 27620003291 | 1 |
| 14 | Protection116*96*15 | 27620003931 | 2 |
| 15 | Harness protective plate 858*389*2 | 27620003851 | 1 |
| 16 | Sleeve 276*106*12 | 27620003861 | 3 |
| 17 | Z-bracket 180*20*25 | 27620004121 | 1 |
| 18 | Cable tie 14400342 | 4130703098 | 2 |
| 19 | Bolt GB5782-M10*80EpZn-8.8 | 4011000503 | 2 |
| 20 | Support3 | 27340113411 | 1 |
| 21 | Grommet 96*76*14 | 27620004601 | 1 |
| 22 | DC power socket 1 | 4130706130 | 1 |
| 23 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 4 |
| 24 | Washer GB862.2-10-65Mn | 4015010586 | 1 |
| 25 | Cable tie HS-J117 | 4130704969 | 3 |
| 26 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 12 |
| 27 | Washer GB97.1-10EpZn-300HV | 4015000162 | 94 |
| 28 | Nut GB6170-M10EpZn-8 | 4013000007 | 43 |
| 29 | Bracket | 27620003281 | 2 |
| 30 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 15 |
| 31 | Bolt GB5783-M6*30EpZn-8.8 | 4011000291 | 8 |
