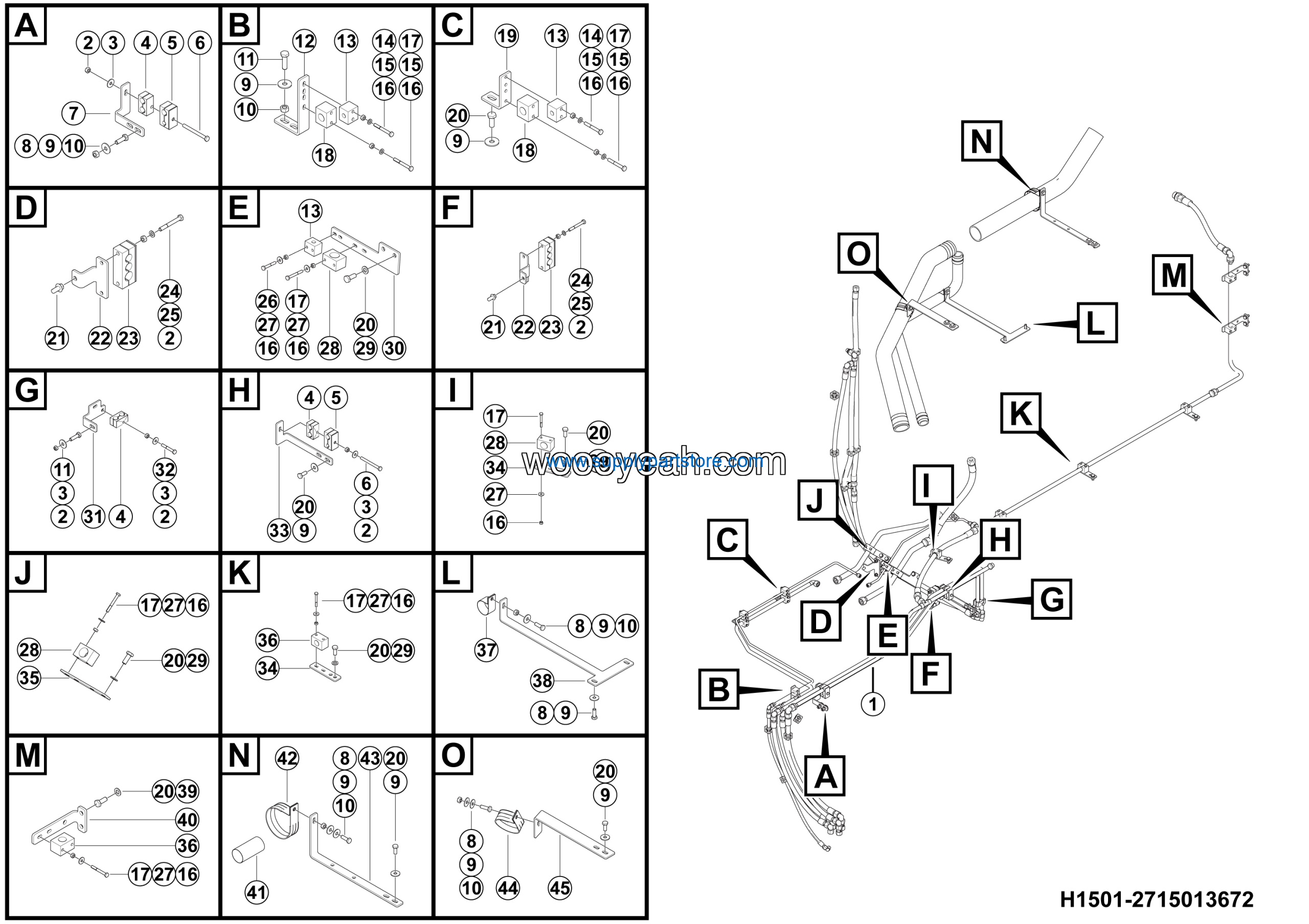

LGMG Off-Highway Dump Truck 2023 – Steering accessories assy – H1501-2715013672
Category: 2023 > Off-Highway Dump Truck > RT136 > R1000W3A2A001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6170-M10EpZn-8 | 4013000007 | 7 |
| 2 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 3 |
| 3 | L-bracket 150*80*30 | 27150136621 | 1 |
| 4 | Tube clamp TLPG12-110 | 4120708225 | 4 |
| 5 | Bolt GB5782-M6*45EpZn-8.8 | 4011000611 | 6 |
| 6 | Washer GB97.1-6EpZn-300HV | 4015000207 | 12 |
| 7 | Nut GB6170-M6EpZn-8 | 4013000028 | 30 |
| 8 | Bolt GB5782-M6*50EpZn-8.8 | 4011000523 | 22 |
| 9 | Tube clamp TLPG12-218 | 4120708228 | 3 |
| 10 | L-bracket 86.5*60*30 | 27150134242 | 2 |
| 11 | Steering lines assy | 27150136731 | 1 |
| 12 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 20 |
| 13 | Bolt GB16674.1-M10*20EpZn-8.8 | 4011000447 | 2 |
| 14 | Bracket | 27150137331 | 2 |
| 15 | Triple-pipe clamp 21-21-24 | 27150135481 | 2 |
| 16 | Bolt GB5782-M8*65EpZn-8.8 | 4011000301 | 4 |
| 17 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 18 | Bolt GB5782-M6*40EpZn-8.8 | 4011010628 | 2 |
| 19 | Washer GB96.1-6EpZn-300HV | 4015000198 | 18 |
| 20 | Tube clamp TLPG12-325 | 4120712119 | 3 |
| 21 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 22 | Nut GB6170-M8EpZn-8 | 4013000033 | 8 |
| 23 | Bracket 237*65*5 | 27150136751 | 1 |
| 24 | Bracket | 27150136801 | 1 |
| 25 | Bolt GB5782-M8*55EpZn-8.8 | 4011000415 | 1 |
| 26 | Bracket | 27150136481 | 1 |
| 27 | Bracket 120*30*5 | 27150136631 | 4 |
| 28 | Fixing plate 160*30*4 | 27150135161 | 1 |
| 29 | Pipe clamp TLPG-320 | 4120704816 | 5 |
| 30 | Reinforced clamp R1-D50-M10 | 4190707983 | 1 |
| 31 | Bracket | 27150136821 | 1 |
| 32 | Washer GB97.1-10-300HV | 4015000322 | 4 |
| 33 | Washer GB96.1-8EpZn-300HV | 4015000256 | 3 |
| 34 | L-bracket 151*70*6 | 27150136641 | 2 |
| 35 | Insulation cotton 100-400 | 4190708955 | 1 |
| 36 | Clip | 27150127071 | 1 |
| 37 | Bracket 405*166*30 | 27150136831 | 1 |
| 38 | Clip | 27160123011 | 1 |
| 39 | Bracket | 27150137631 | 1 |
| 40 | Clamp TTPG4-218 | 4120708222 | 3 |
| 41 | Double-pipe clamp 18-12 | 27150136601 | 2 |
| 42 | Bolt GB5782-M8*85EpZn-8.8 | 4011000303 | 2 |
| 43 | Bracket | 27150136611 | 1 |
| 44 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 7 |
| 45 | Washer GB96.1-10EpZn-300HV | 4015000197 | 20 |
