Description

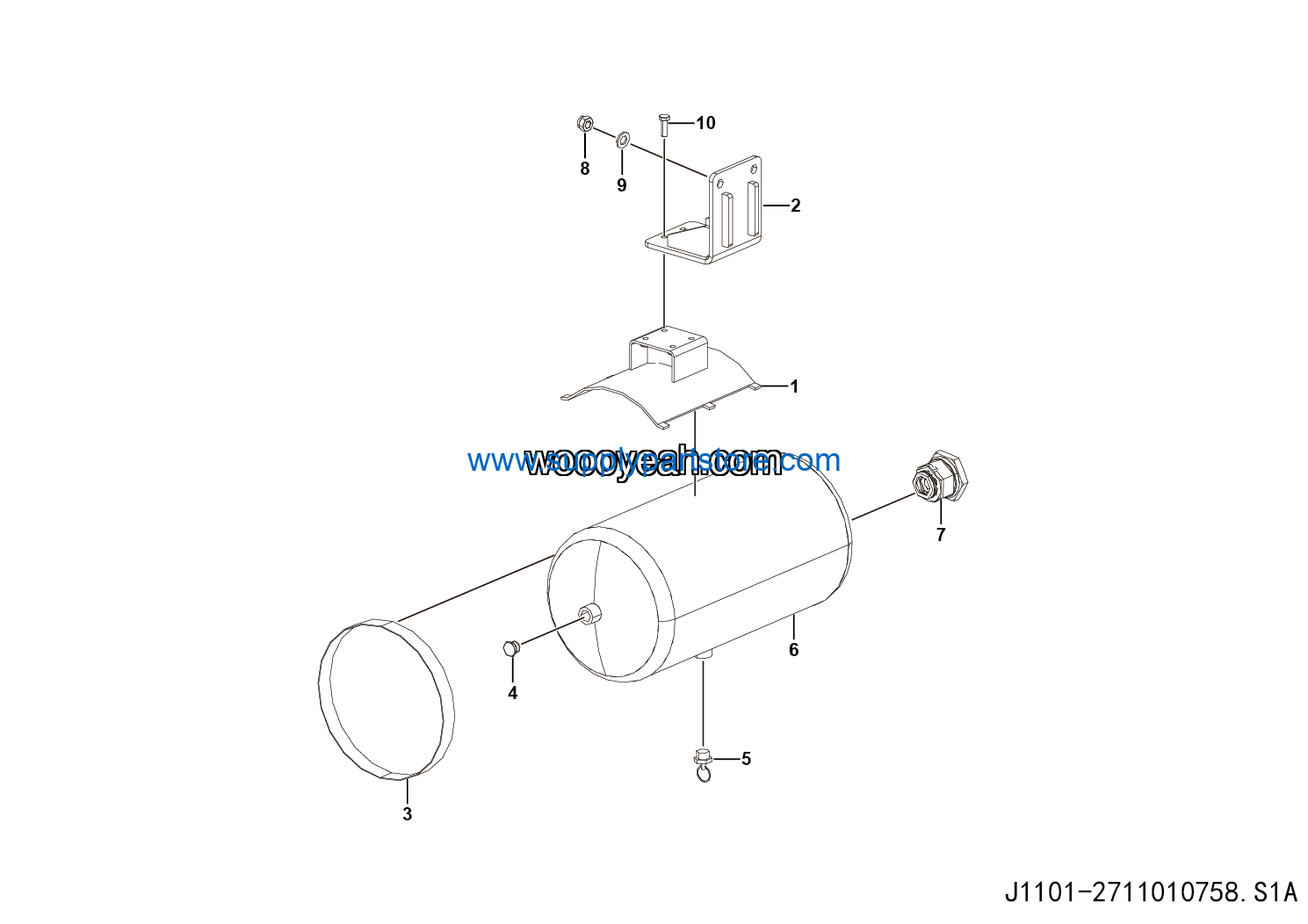

LGMG Off-Highway Dump Truck 2024 – ASM-Gas tube installation assy（30L） – J1101-2711010758.S1A
Category: 2024 > Off-Highway Dump Truck > MT106H > M116HY3A0M008
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 5 |
| 2 | Air reservoir bracket | 27110101222 | 1 |
| 3 | 1 | 27110107292 | 1 |
| 4 | Hose clamp φ275-φ280 | 4120000178 | 2 |
| 5 | Plug NG12-M22*1.5 | 4120000201 | 1 |
| 6 | Drain valve | 4120000200 | 1 |
| 7 | Air reservoir 30L（275） | 4120000142 | 1 |
| 8 | Nut seat | 27110107601 | 2 |
| 9 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 3 |
| 10 | Washer GB97.1-16EpZn-300HV | 4015000181 | 2 |
