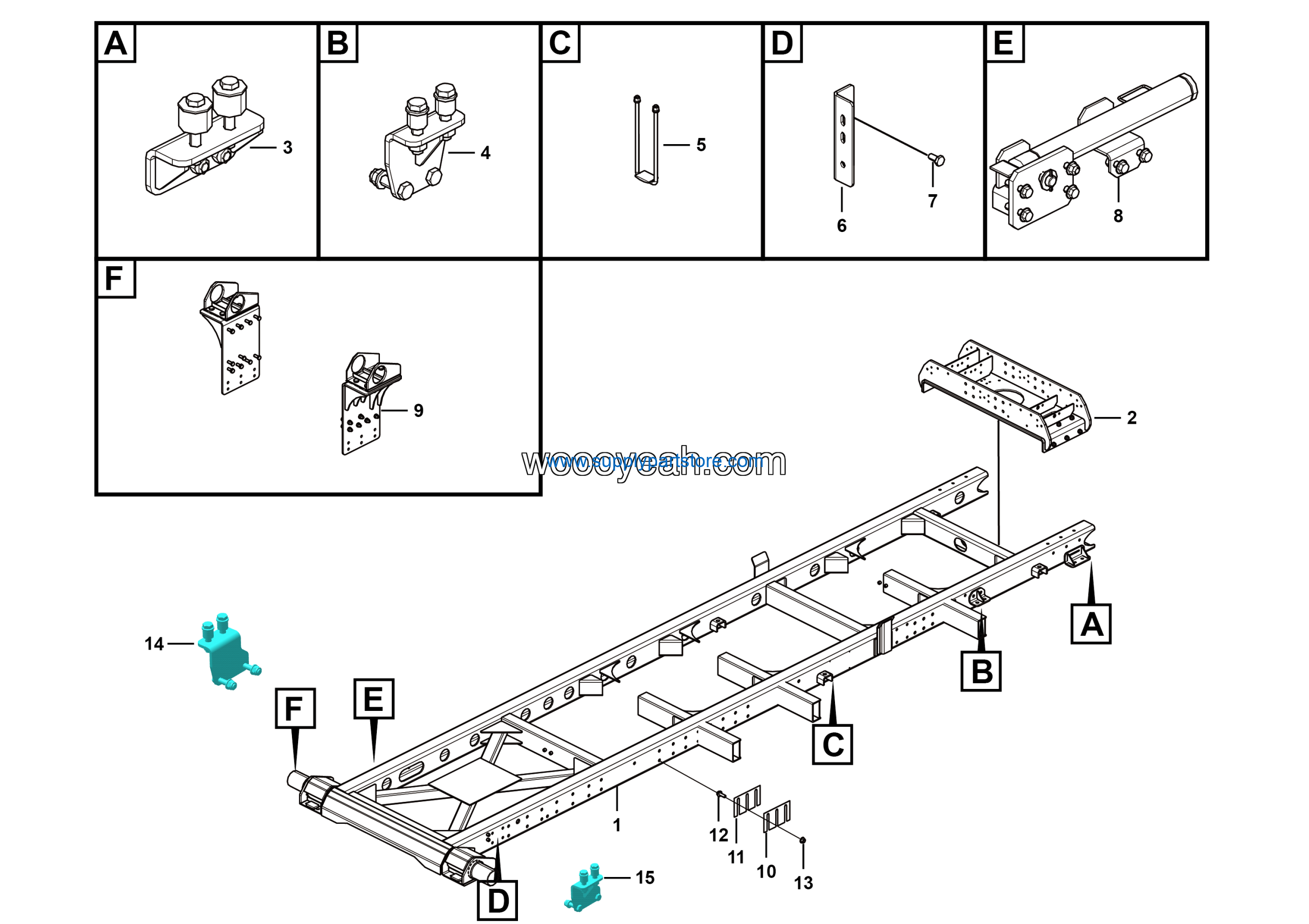

LGMG Off-Highway Dump Truck 2024 – Aux Frame Assembly – I4001-2740011331
Category: 2024 > Off-Highway Dump Truck > MT106H > M106HW3A0M363
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Auxiliary frame | 27400110961 | 4 |
| 2 | Auxiliary frame | 27400110971 | 4 |
| 3 | Bolt QC340.2-M18*1.5*50EpZn-10.9 | 4011011598 | 82 |
| 4 | Nut GB6177.2-RLM18*1.5EpZn-10 | 4013010546 | 82 |
| 5 | Main subframe connection seat assembly | 27400113331 | 1 |
| 6 | Main subframe connection seat assembly | 27400113381 | 1 |
| 7 | Aux frame weldment | 27400113323 | 1 |
| 8 | Frame assembly | 27400110241 | 1 |
| 9 | Plate | 27400108401 | 2 |
| 10 | Auxiliary frame | 27400110881 | 2 |
| 11 | Auxiliary frame | 27400110871 | 4 |
| 12 | PLATE | 27170128381 | 1 |
| 13 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 2 |
| 14 | Assembly | 27400108971 | 1 |
| 15 | Board assembly | 27400113051 | 1 |
