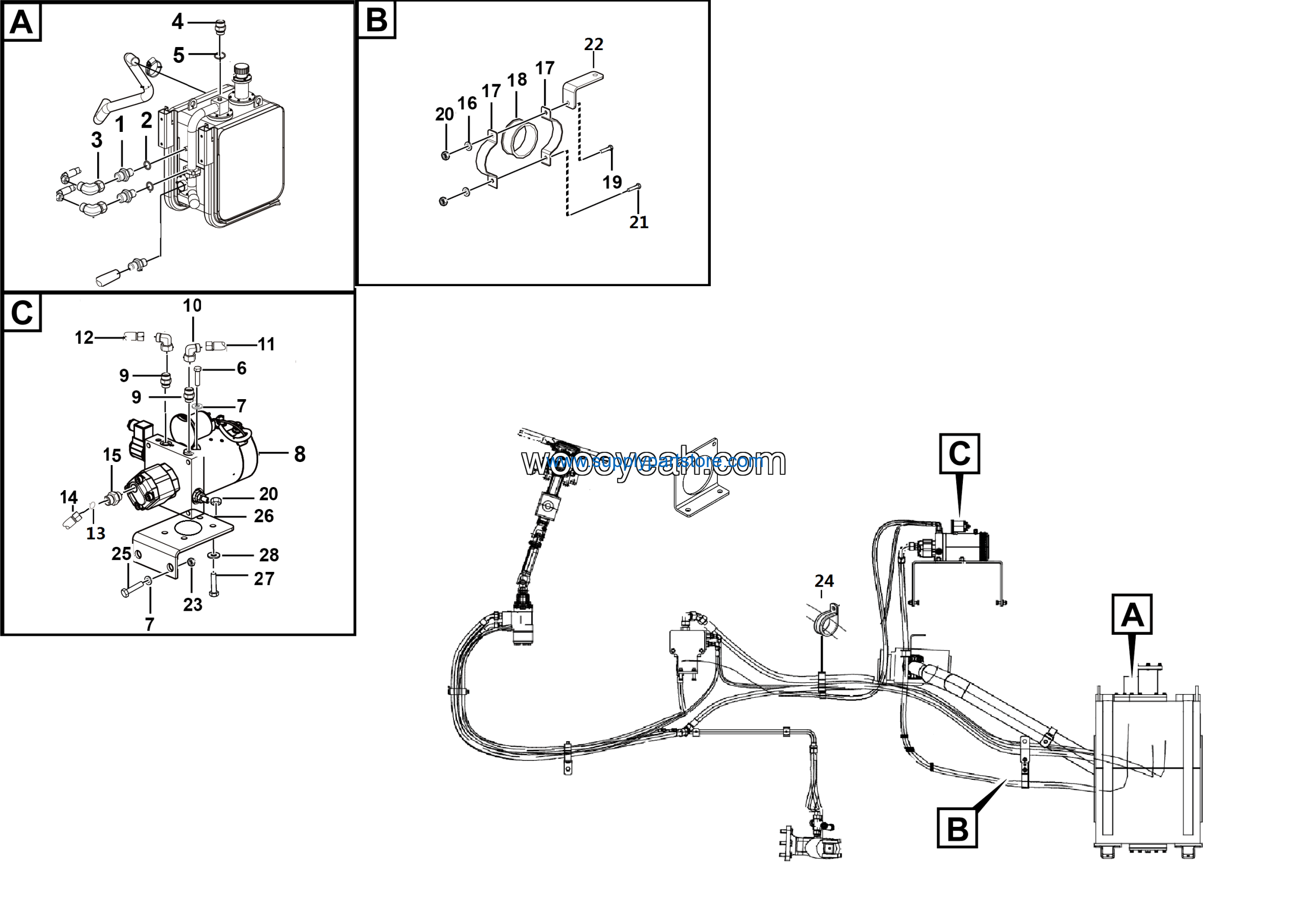

LGMG Off-Highway Dump Truck 2024 – Emergency steering power unit assy – H1500-2715011273
Category: 2024 > Off-Highway Dump Truck > MT86H > M086HW3A0A021
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Combination joint LGB143-01608 | 4041001023 | 2 |
| 2 | Hose LGB165-004320 | 4041010402 | 1 |
| 3 | Hose LGB128-004206 | 4041000048 | 1 |
| 4 | Column end 1CG-16-04 | 4120702912 | 1 |
| 5 | Hose LGB165-006260 | 4041010401 | 1 |
| 6 | Straight joint 1CB-22-06WD | 4120005156 | 1 |
| 7 | Washer GB96.1-8EpZn-300HV | 4015000256 | 2 |
| 8 | Pipe clamp LGB167-0322 | 4041000829 | 2 |
| 9 | Cushion sleeve LGB123-0322 | 4041000876 | 2 |
| 10 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 2 |
| 11 | Straight joint LGB155-02222 | 4041000109 | 1 |
| 12 | Nut GB6170-M8EpZn-8 | 4013000033 | 4 |
| 13 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 1 |
| 14 | Plate | 27160104461 | 1 |
| 15 | Nut GB6170-M10EpZn-8 | 4013000007 | 3 |
| 16 | Pipe clamp | 26370001921 | 1 |
| 17 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 2 |
| 18 | Plate | 27150112741 | 1 |
| 19 | BOLT GB5783-M8*55EpZn-8.8 | 4011010609 | 2 |
| 20 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 21 | O-ring GB3452.1-23.6*2.65G | 4030000097 | 1 |
| 22 | Combination joint LGB143-02213 | 4041001156 | 1 |
| 23 | Straight joint LGB120-01614 | 4041000604 | 1 |
| 24 | O-ring LGB168-11124 | 4041000767 | 2 |
| 25 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 3 |
| 26 | Washer GB97.1-10EpZn-300HV | 4015000162 | 6 |
| 27 | Power unit | 4120702906 | 1 |
| 28 | Straight joint 1CB-16-04WD | 4120001369 | 2 |
