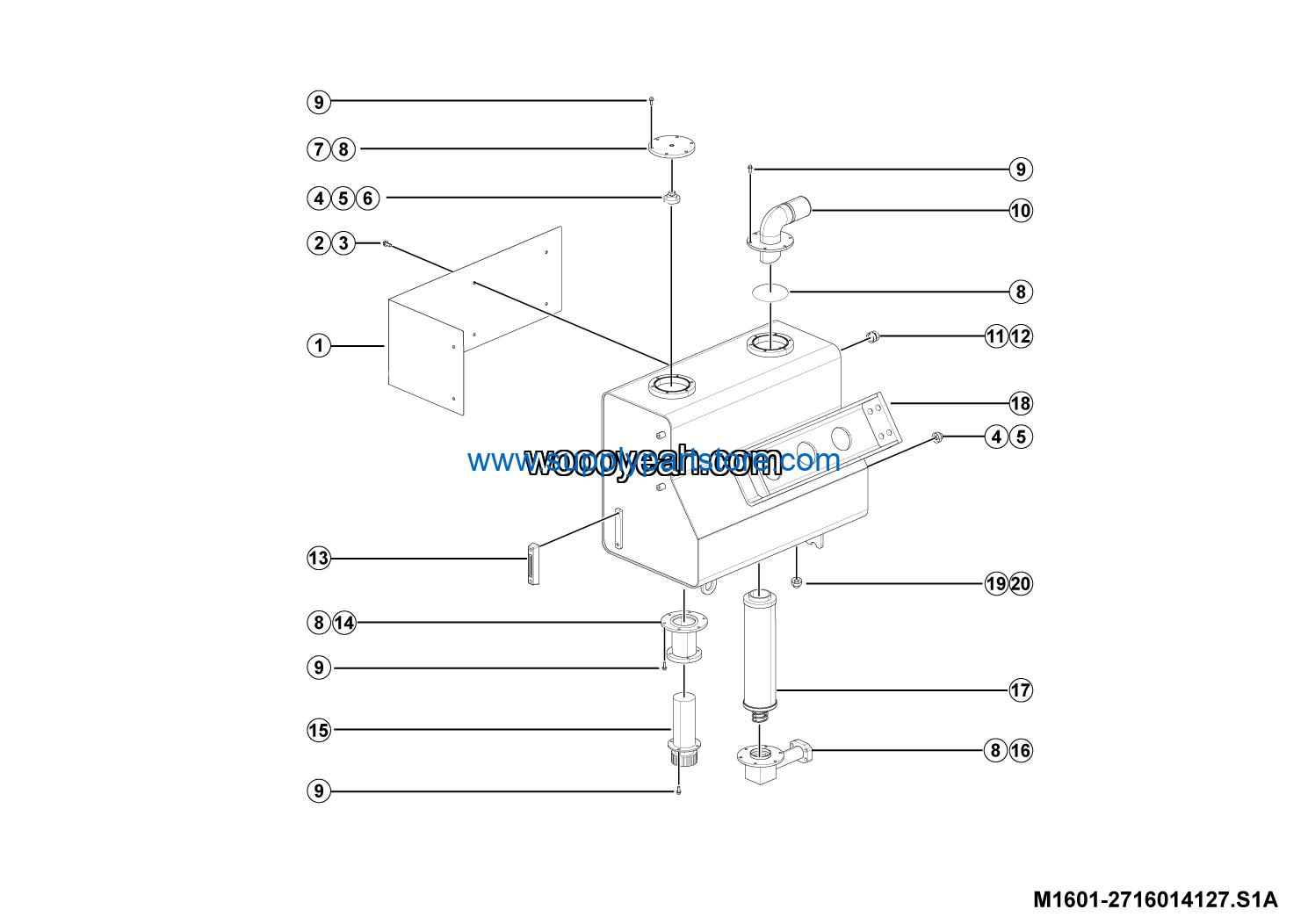

LGMG Off-Highway Dump Truck 2024 – Hyd oil tank assy – M1601-2716014127.S1A
Category: 2024 > Off-Highway Dump Truck > RT100 > R1000W3A2A003
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Oil suction flange wldmt | 27160135991 | 1 |
| 2 | Plug LGB135-02732 | 4041001057 | 1 |
| 3 | O-ring LGB168-12331 | 4041000779 | 1 |
| 4 | Liquid level gauge YWZ-127 | 4120000317 | 1 |
| 5 | Oil charging breather bracket | 27160106261 | 1 |
| 6 | Refueling filter respirator | 4120000303 | 1 |
| 7 | Oil return flange assy | 27160137091 | 1 |
| 8 | Oil return filter | 4120001743 | 1 |
| 9 | Hyd oil tank body wldmt | 27160141185 | 1 |
| 10 | O-ring LGB168-12931 | 4041000765 | 1 |
| 11 | Heat insulation plate 899*343*391 | 27160135241 | 1 |
| 12 | Plug LGB135-03341 | 4041000192 | 1 |
| 13 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 8 |
| 14 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 15 | Nut LGB135-01422 | 4041000774 | 4 |
| 16 | O-ring LGB168-11124 | 4041000767 | 4 |
| 17 | Ring magnet LG03-CT58*20*13 | 4120000669 | 1 |
| 18 | Oil drain flange cover | 27160105801 | 1 |
| 19 | O-ring GB3452.1-128*3.55G | 4030000633 | 4 |
| 20 | Bolt GB16674.1-M8*20EpZn-8.8 | 4011000458 | 28 |
