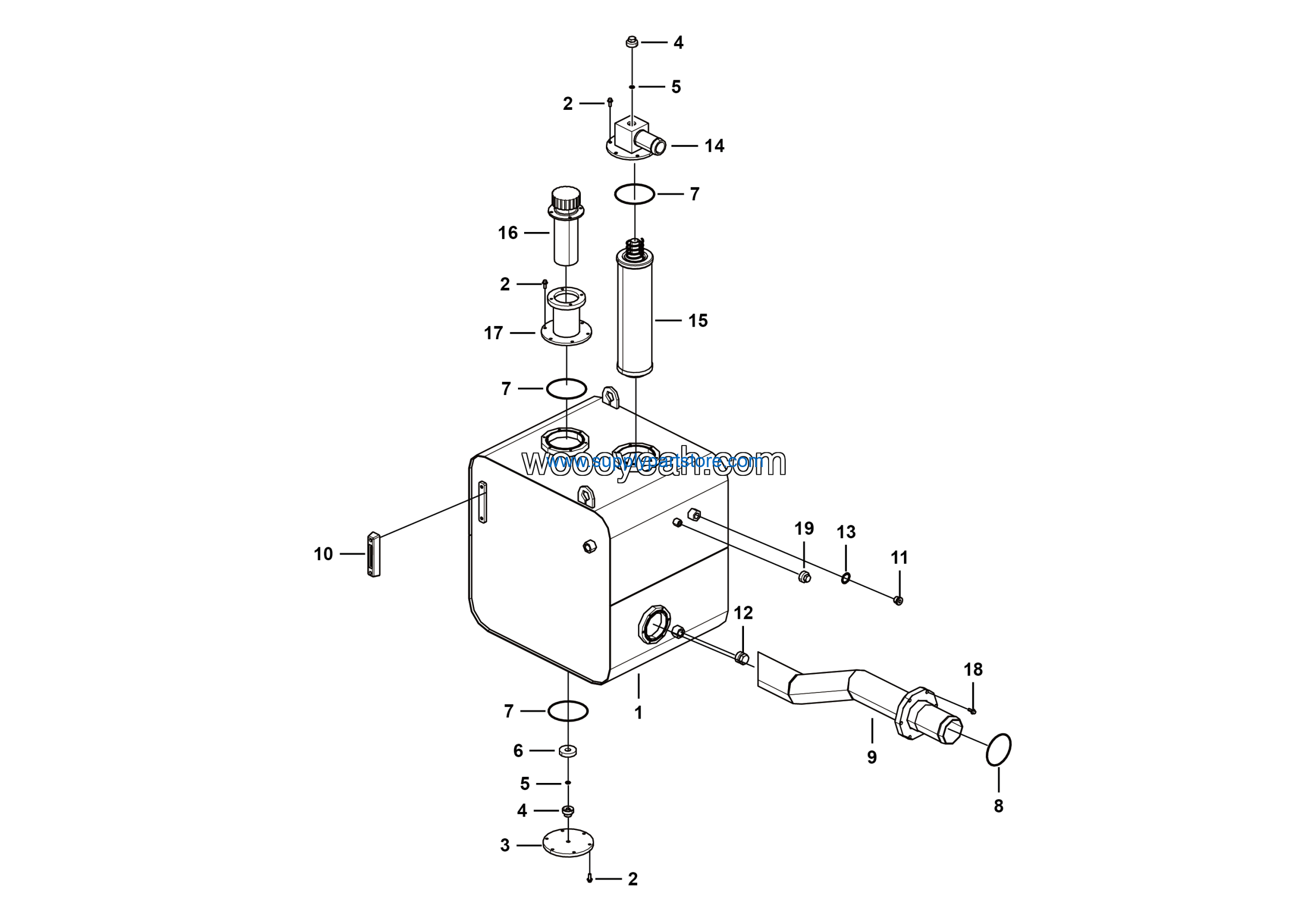

LGMG Off-Highway Dump Truck 2024 – hydraulic oil tank assembly – M1601-2716013021.S1A
Category: 2024 > Off-Highway Dump Truck > MT126H > C126HC3A0M007
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Liquid level gauge YWZ-127 | 4120000317 | 1 |
| 2 | Plug 4MN-22WD | 4120002004 | 1 |
| 3 | Plug LGB135-02732 | 4041001057 | 2 |
| 4 | O-ring LGB168-12331 | 4041000779 | 2 |
| 5 | Flange | 27160115821 | 1 |
| 6 | Oil return filter | 4120001743 | 1 |
| 7 | Refueling filter respirator | 4120000303 | 1 |
| 8 | Oil charging breather bracket | 27160106261 | 1 |
| 9 | Bolt GB16674.1-M8*30EpZn-8.8 | 4011000481 | 6 |
| 10 | Plug 4MN-14WD | 4120002398 | 1 |
| 11 | Hydraulic oil tank body | 27160130221 | 1 |
| 12 | Bolt GB16674.1-M8*20EpZn-8.8 | 4011000458 | 22 |
| 13 | Oil drain flange cover | 27160105801 | 1 |
| 14 | Nut LGB135-01422 | 4041000774 | 2 |
| 15 | O-ring LGB168-11124 | 4041000767 | 2 |
| 16 | Ring magnet LG03-CT58*20*13 | 4120000669 | 1 |
| 17 | O-ring GB3452.1-128*3.55G | 4030000633 | 3 |
| 18 | O-ring GB3452.1-109*3.55G | 4030000619 | 1 |
| 19 | Welding | 27160131681 | 1 |
