LGMG Off-Highway Dump Truck 2024 – Priority Valve assy VLE-150 – H1500-4120000720
Category: 2024 > Off-Highway Dump Truck > MT106H > M106HW3A0M401

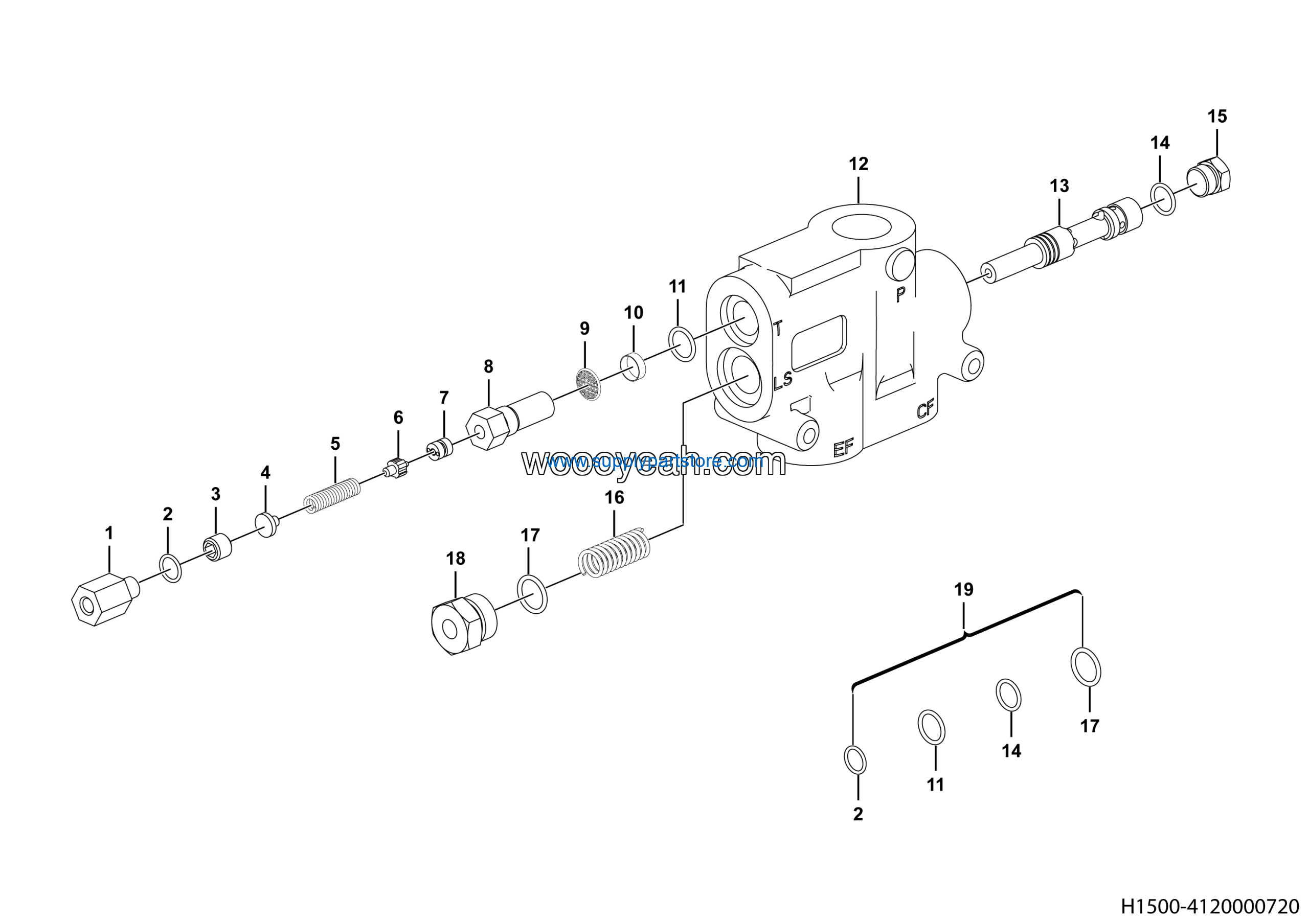

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Compression ring VLE150-010 | 4120000720010 | 1 |
| 2 | O-ring VLE150-011 | 4120000720011 | 1 |
| 3 | Valve body VLE150-012 | 4120000720012 | 1 |
| 4 | Valve core VLE150-014 | 4120000720014 | 1 |
| 5 | O-ring VLE150-016 | 4120000720016 | 1 |
| 6 | Plug VLE150-017 | 4120000720017 | 1 |
| 7 | Spring VLE150-015 | 4120000720015 | 1 |
| 8 | O-ring VLE150-013 | 4120000720013 | 1 |
| 9 | Plug VLE150-018 | 4120000720018 | 1 |
| 10 | No longer used- | 4120000720019 | 1 |
| 11 | Plug VLE150-001 | 4120000720001 | 1 |
| 12 | O-ring VLE150-002 | 4120000720002 | 1 |
| 13 | Adjusting screw VLE150-003 | 4120000720003 | 1 |
| 14 | Spring guide VLE150-004 | 4120000720004 | 1 |
| 15 | Spring VLE150-005 | 4120000720005 | 1 |
| 16 | Safety valve spool VLE150-006 | 4120000720006 | 1 |
| 17 | Safety valve seat VLE150-007 | 4120000720007 | 1 |
| 18 | Plug VLE150-008 | 4120000720008 | 1 |
| 19 | Rosebox VLE150-009 | 4120000720009 | 1 |
