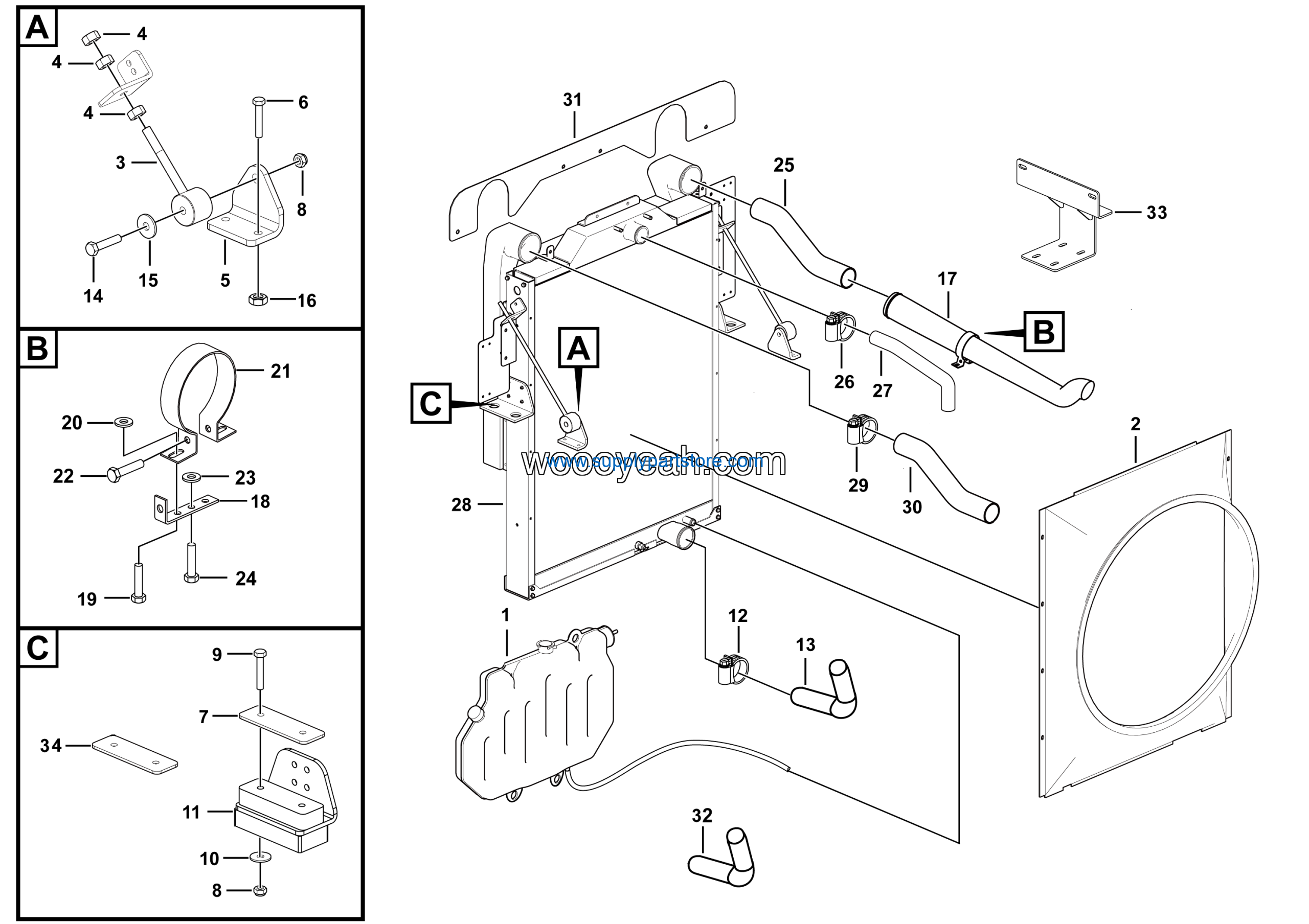

LGMG Off-Highway Dump Truck 2024 – Radiator assy – A0306-2703010958-G2
Category: 2024 > Off-Highway Dump Truck > MT86M > M086MWA35
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB96.1-10EpZn-300HV | 4015000197 | 8 |
| 2 | Radiator shock absorber assy | 4110001445 | 2 |
| 3 | T-Clamp 78-86 | 4190002212 | 2 |
| 4 | Pipe | 27030111932 | 1 |
| 5 | Bolt GB5782-M14*85EpZn-8.8 | 4011010630 | 2 |
| 6 | Plate | 27030109731 | 2 |
| 7 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 2 |
| 8 | Cold air intake pipe | 27030105791 | 1 |
| 9 | Cool | 27030139031 | 1 |
| 10 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 1 |
| 11 | EXPANSION TANK | 27030109101 | 1 |
| 12 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 13 | Support i | 27030105861 | 1 |
| 14 | Bolt GB5782-M8*55EpZn-8.8 | 4011000415 | 1 |
| 15 | Washer GB97.1-8EpZn-300HV | 4015000072 | 6 |
| 16 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 2 |
| 17 | Cold air intake pipe | 27030105821 | 1 |
| 18 | No longer used | 4019010101 | 2 |
| 19 | Engine exit water pipe | 27030105851 | 1 |
| 20 | Radiator assy | 4110001737 | 1 |
| 21 | No longer used | 4019010211 | 4 |
| 22 | Glass fiber Reinforced plastic wind guide cover | 4110001521 | 1 |
| 23 | Cold air exit pipe | 27030105831 | 1 |
| 24 | Radiator shield plate assembly | 27030109681 | 1 |
| 25 | Engine return pipe | 27030138741 | 1 |
| 26 | Cool | 27030139031 | 1 |
| 27 | Shim | 27030139061 | 6 |
| 28 | Radiator bar | 4110001451 | 2 |
| 29 | Nut GB6170-M12EpZn-8 | 4013000011 | 6 |
| 30 | Support | 27030109692 | 2 |
| 31 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 4 |
| 32 | Plate | 27030109021 | 2 |
| 33 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 8 |
| 34 | Bolt GB5783-M10*90EpZn-8.8 | 4011000956 | 4 |
