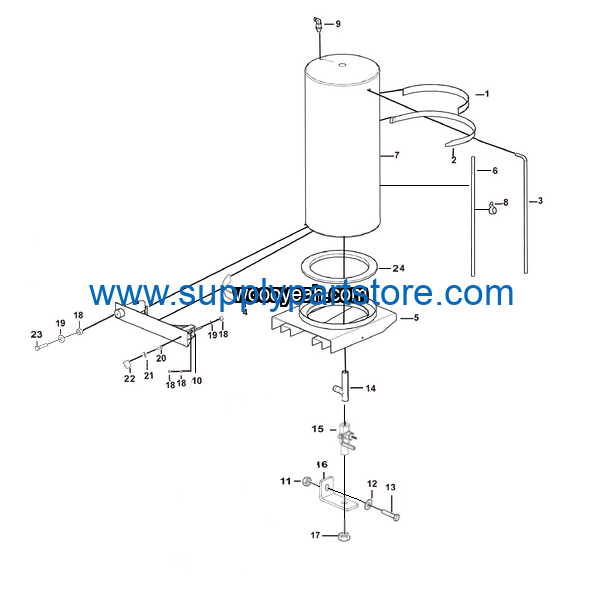

LGMG Off-Highway Dump Truck 2024 – Spray water tank assy – J3801-2738010621.S1A
Category: 2024 > Off-Highway Dump Truck > CMT66 > C0660W3E0A208
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Seat | 27380105991 | 2 |
| 2 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 3 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 4 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 2 |
| 5 | Pipe | 27380102672 | 1 |
| 6 | Two-way ball valve G1 1/4 | 4120002210 | 1 |
| 7 | Plate | 27380105481 | 1 |
| 8 | Hexagon thin nut g1 1/4 | 27380102721 | 1 |
| 9 | Nut GB6170-M12EpZn-8 | 4013000011 | 10 |
| 10 | Washer GB96.1-12EpZn-300HV | 4015000186 | 8 |
| 11 | Cushion belt | 27380102921 | 2 |
| 12 | Bolt GB5783-M16*35EpZn-8.8 | 4011000095 | 4 |
| 13 | Washer GB96.1-16EpZn-300HV | 4015000279 | 4 |
| 14 | Seat | 27380101791 | 4 |
| 15 | Bolt GB5782-M12*110EpZn-8.8 | 4011000262 | 2 |
| 16 | Rubber mat | 27380101711 | 1 |
| 17 | Band assembly | 27380102371 | 2 |
| 18 | Hose assembly m18-1700 | 27380102342 | 1 |
| 19 | Rubber belt | 27380101851 | 2 |
| 20 | Water tank support | 27380102694 | 1 |
| 21 | Pipe | 27380105671 | 1 |
| 22 | Spray water tank LG21-PLSX-03 | 4120710343 | 1 |
| 23 | Hose clamp JB8870-D50 | 4017000009 | 2 |
| 24 | Combination joint LGB143-01810 | 4041001063 | 1 |
