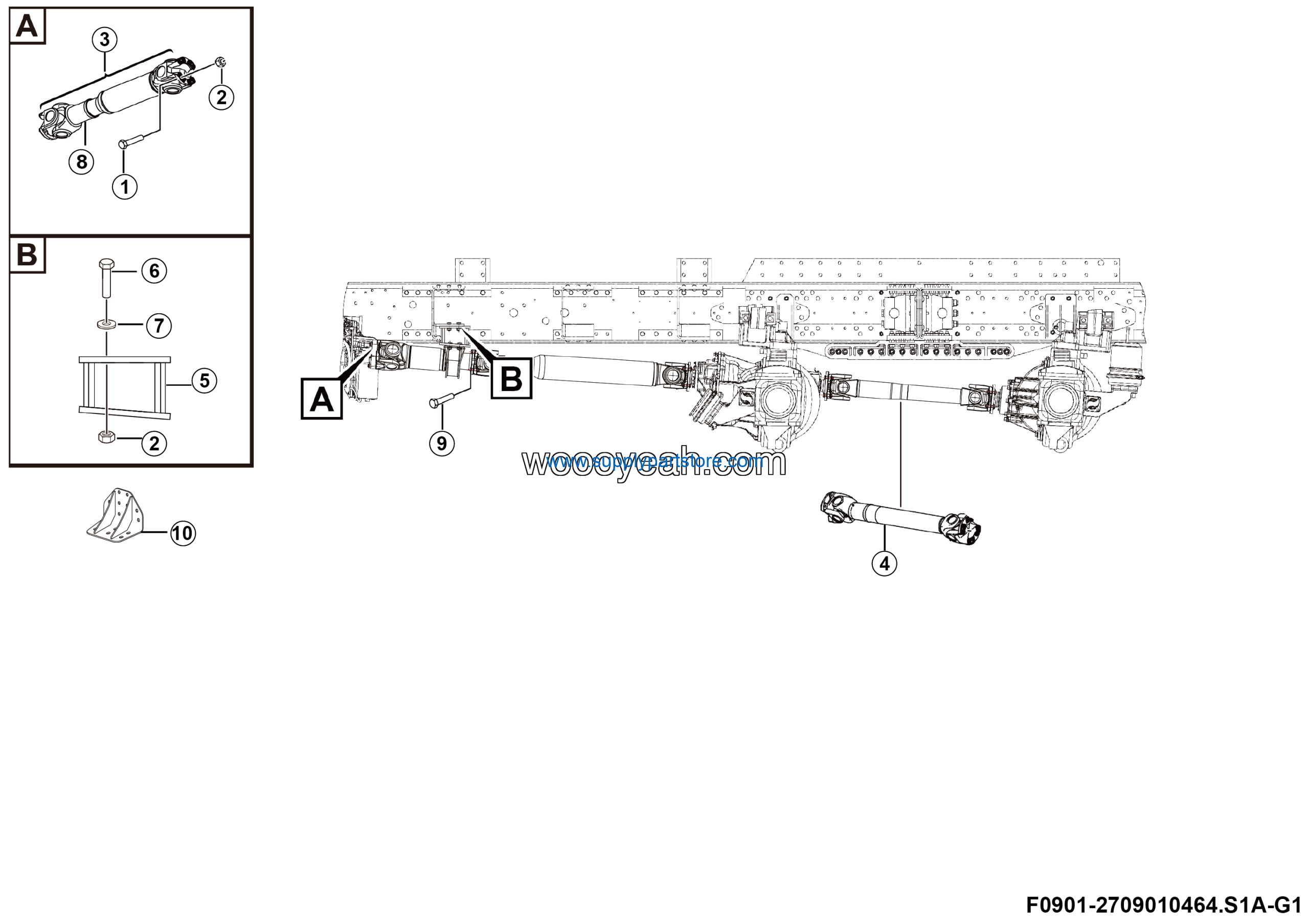

LGMG Road Sprinkler 2024 – Drive shaft assy – F0901-2709010464.S1A-G1
Category: 2024 > Road Sprinkler > CMS50 > CS500W3E0A013
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Reinforcing support weldment | 27090106832 | 1 |
| 2 | BOLT GB5785-M14*1.5*65flZnyc-12.9-480 | 4011010942 | 4 |
| 3 | Nut GB6185.2-M14*1.5flZnyc-12-480 | 4013010568 | 28 |
| 4 | FR transmission shaft assy | 4110000928 | 1 |
| 5 | RR trabsmission shaft | 4110000911 | 1 |
| 6 | Bracket weldment | 27090106781 | 1 |
| 7 | Bolt GB5786-M14*1.5*45-12.9 | 4011010607 | 10 |
| 8 | Washer GB97.1-14EpZn-300HV | 4015000177 | 10 |
| 9 | Front transmission shaft LG09-QCDZ-1380 | 4110706888 | 1 |
| 10 | Bolt GB5786-M14*1.5*50flZnyc-12.9-480 | 4011010642 | 8 |
