Description

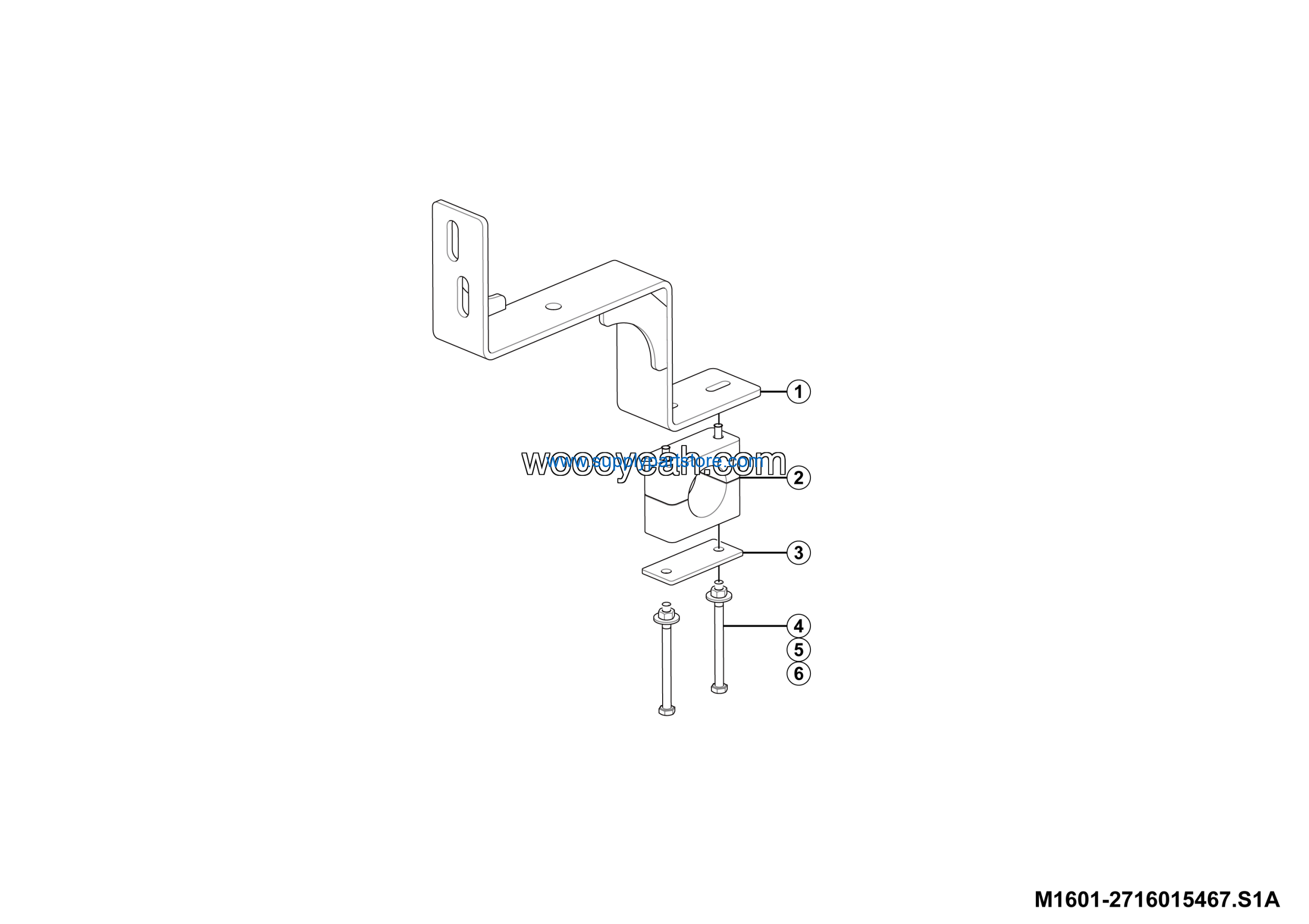

LGMG RTH100 2025 – Bracket assy – M1601-2716015467.S1A
Category: 2025 > RTH100 > R1000Y3A0A238
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bracket wldmt | 27160154681 | 1 |
| 2 | Single-hole pipe clamp tlpg-538 | 4120719679 | 1 |
| 3 | Cover plate tl-g5 | 4120704826 | 1 |
| 4 | Bolt GB5782-M6*80flZnyc-8.8-480 | 4011011081 | 2 |
| 5 | Nut GB6170-M6flZnyc-8-480 | 4013010293 | 2 |
| 6 | Washer GB96.1-6flZnyc-300HV-480 | 4015010296 | 2 |
