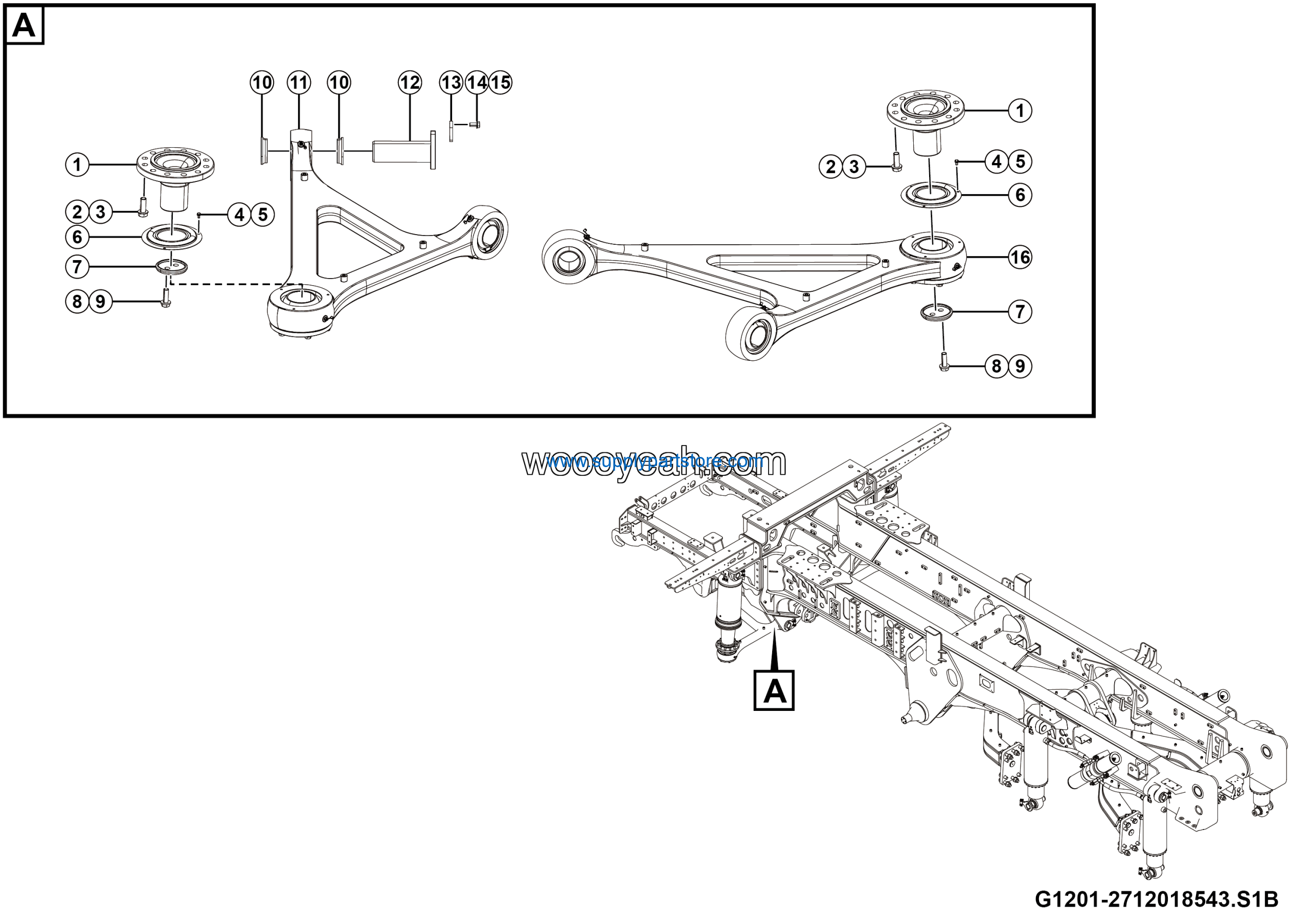

LGMG RTH100 2025 – Front guide mechanism – G1201-2712018543.S1B
Category: 2025 > RTH100 > R1000Y3A0A223
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Spacer 70×20 | 27120169311 | 8 |
| 2 | Front suspension lh lwr arm assy | 27120185451 | 1 |
| 3 | Pin wldmt 70*207 | 27120183152 | 4 |
| 4 | Pin retaining plate 80*26*10 | 27120183171 | 4 |
| 5 | Bolt gb5783-m12*25flznyc-12.9-480 | 4011011867 | 8 |
| 6 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 8 |
| 7 | Front suspension rh lwr arm assy | 27120185461 | 1 |
| 8 | T-shaped mounting flange 256*90*167 | 27120185532 | 2 |
| 9 | Bolt GB5783-M18*50flZnyc-12.9-480 | 4011010688 | 24 |
| 10 | Washer GB97.1-18flZnyc-300HV-480 | 4015010333 | 24 |
| 11 | Bolt GB5783-M6*12flZnyc-8.8-480 | 4011010716 | 6 |
| 12 | Washer GB97.1-6flZnyc-300HV-480 | 4015010284 | 6 |
| 13 | Dust cover 200*96*14 | 27120185562 | 2 |
| 14 | Bearing hold-down 105*90*14 | 27120185521 | 2 |
| 15 | Bolt GB5783-M16*50flZnyc-12.9-480 | 4011010616 | 4 |
| 16 | Washer GB1230-16flZnyc-45-480 | 4015010563 | 4 |
